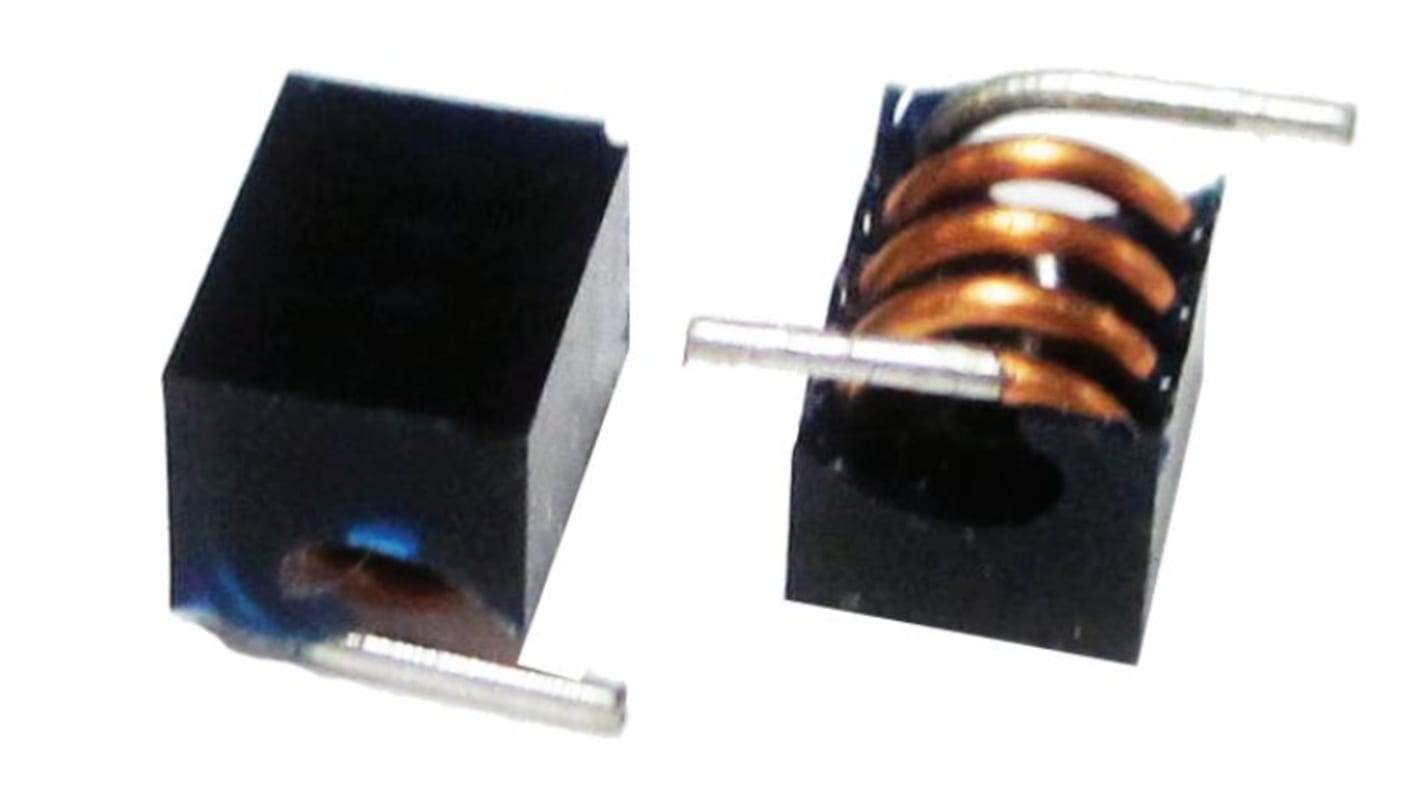

Abracon, AIAC-4125C Unshielded Surface Mount Inductor 538 nH SMT Air Coil Inductor ±5 % 2 A Idc Q:100
- RS Stock No.:
- 240-0855
- Mfr. Part No.:
- AIAC-4125C-R538J-T
- Brand:
- Abracon
Bulk discount available
Subtotal (1 pack of 10 units)*
£7.29
(exc. VAT)
£8.75
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,290 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.729 | £7.29 |
| 50 - 90 | £0.714 | £7.14 |
| 100 - 240 | £0.623 | £6.23 |
| 250 - 490 | £0.61 | £6.10 |
| 500 + | £0.561 | £5.61 |
*price indicative
- RS Stock No.:
- 240-0855
- Mfr. Part No.:
- AIAC-4125C-R538J-T
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Inductance | 538nH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 2A | |
| Package/Case | Surface Mount | |
| Packaging | Tape & Reel | |
| Length | 9mm | |
| Automotive Standard | No | |
| Shielding | No | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 42mΩ | |
| Inductance Tolerance | ±5 % | |
| Series | AIAC-4125C | |
| Maximum Operating Temperature | 125°C | |
| Termination Style | Surface Mount | |
| Standards/Approvals | RoHS, QS 9000, ISO 9001:2008, ISO 9001 | |
| Height | 4.6mm | |
| Depth | 4.6mm | |
| Maximum Self Resonant Frequency | 0.4GHz | |
| Minimum Quality Factor | 100 | |
| Moulded | Yes | |
| Inductor Construction | SMT Air Coil Inductor | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Inductance 538nH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 2A | ||
Package/Case Surface Mount | ||
Packaging Tape & Reel | ||
Length 9mm | ||
Automotive Standard No | ||
Shielding No | ||
Pin Count 2 | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 42mΩ | ||
Inductance Tolerance ±5 % | ||
Series AIAC-4125C | ||
Maximum Operating Temperature 125°C | ||
Termination Style Surface Mount | ||
Standards/Approvals RoHS, QS 9000, ISO 9001:2008, ISO 9001 | ||
Height 4.6mm | ||
Depth 4.6mm | ||
Maximum Self Resonant Frequency 0.4GHz | ||
Minimum Quality Factor 100 | ||
Moulded Yes | ||
Inductor Construction SMT Air Coil Inductor | ||
The Abracon SMT Air Coil Inductor widely used in Cordless Phones, High Frequency Communication Equipment's, Intercom, CATV,RFID. It is suitable for metal sensors, proximity sensors and Noise suppression for RF power supply/bias, also helps in I/O filterin
High current design
Wide Range Frequency Response
Excellent Q & SRF
Standard flat cap top suitable for automatic placement
RoHS Compliant
