- RS Stock No.:
- 217-7520
- Mfr. Part No.:
- 7447840056
- Brand:
- Wurth Elektronik
300 In stock - FREE next working day delivery available
Price Each (On a Reel of 10000)
£0.019
(exc. VAT)
£0.023
(inc. VAT)
Units | Per unit | Per Reel* |
---|---|---|
10000 + | £0.019 | £190.00 |
*price indicative
- RS Stock No.:
- 217-7520
- Mfr. Part No.:
- 7447840056
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

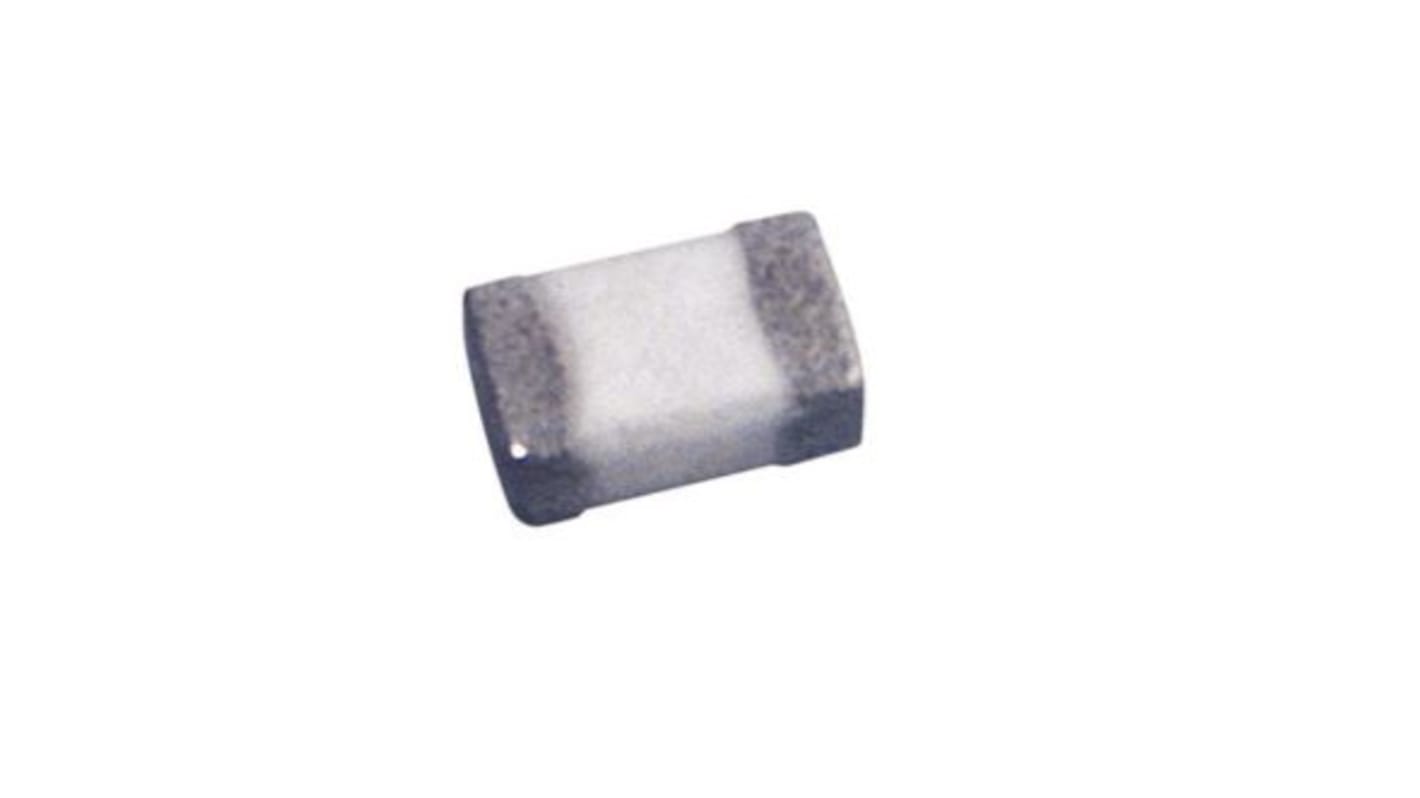

The Wurth Elektronik WE-MK multilayer ceramic SMT inductor has 1nH inductance. It is use in high frequency circuits, Bluetooth and wireless LAN. It has inductance very stable over temperature.
Coil integrated in a multilayer ceramic structure
All inductors with polarity marking
High self resonant frequency
Inductive tolerances of 5%
All inductors with polarity marking
High self resonant frequency
Inductive tolerances of 5%
± 0.3 nH
Operating temperature: –55°C to +125°C
Inductance very stable over temperature
Recommended solder profi
Operating temperature: –55°C to +125°C
Inductance very stable over temperature
Recommended solder profi
Specifications
Attribute | Value |
---|---|
Inductance | 5.6 nH |
Maximum DC Current | 300mA |
Tolerance | 5% |
Maximum DC Resistance | 260mΩ |
Series | WE-MK |
Maximum Self Resonant Frequency | 5.3GHz |
Minimum Quality Factor | 8 |
