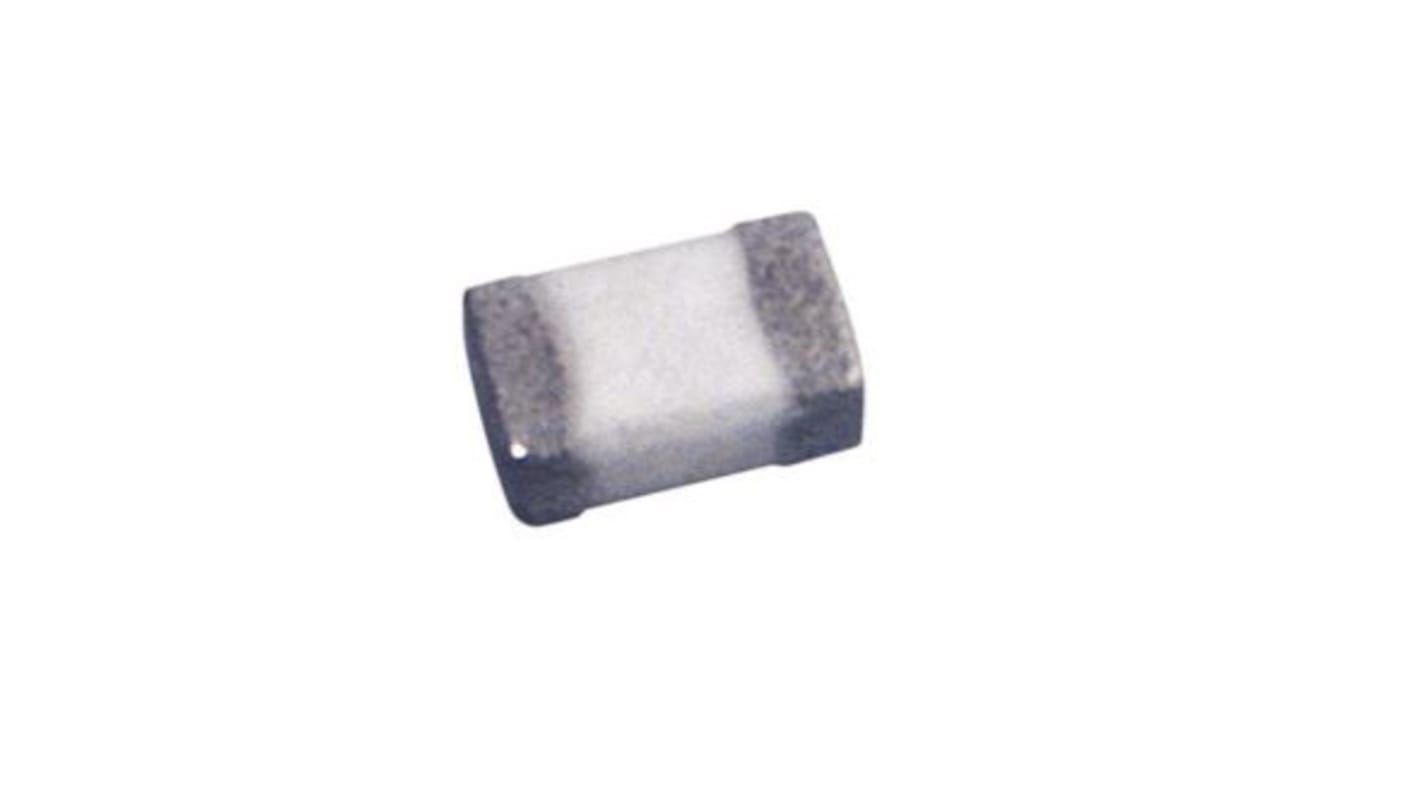

Wurth, WE-MK Multilayer Surface Mount Inductor 22 nH 5% 150mA Idc Q:4
- RS Stock No.:
- 217-7493
- Mfr. Part No.:
- 7447820122
- Brand:
- Wurth Elektronik
100 In stock - FREE next working day delivery available
Price Each (On a Tape of 100)
£0.037
(exc. VAT)
£0.044
(inc. VAT)
Units | Per unit | Per Tape* |
|---|---|---|
| 100 - 400 | £0.037 | £3.70 |
| 500 - 900 | £0.034 | £3.40 |
| 1000 - 4900 | £0.031 | £3.10 |
| 5000 - 9900 | £0.027 | £2.70 |
| 10000 + | £0.026 | £2.60 |
*price indicative
- RS Stock No.:
- 217-7493
- Mfr. Part No.:
- 7447820122
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The Wurth Elektronik WE-MK multilayer ceramic SMT inductor has 1nH inductance. It is use in high frequency circuits, Bluetooth and wireless LAN. It has inductance very stable over temperature.
Coil integrated in a multilayer ceramic structure
All inductors with polarity marking
High self resonant frequency
Inductive tolerances of 5%
All inductors with polarity marking
High self resonant frequency
Inductive tolerances of 5%
± 0.3 nH
Operating temperature: –55°C to +125°C
Inductance very stable over temperature
Recommended solder profi
Operating temperature: –55°C to +125°C
Inductance very stable over temperature
Recommended solder profi
Specifications
Attribute | Value |
|---|---|
| Inductance | 22 nH |
| Maximum DC Current | 150mA |
| Tolerance | 5% |
| Maximum DC Resistance | 1000mΩ |
| Series | WE-MK |
| Maximum Self Resonant Frequency | 1.8GHz |
| Minimum Quality Factor | 4 |
