Wurth, WE-MK Multilayer Surface Mount Inductor 180 nH 5% 150mA Idc Q:8
- RS Stock No.:
- 217-7558
- Mfr. Part No.:
- 7447840218
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 10000 units)*
£260.00
(exc. VAT)
£310.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 10000 + | £0.026 | £260.00 |
*price indicative
- RS Stock No.:
- 217-7558
- Mfr. Part No.:
- 7447840218
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 180 nH | |
| Maximum DC Current | 150mA | |
| Tolerance | 5% | |
| Maximum DC Resistance | 3380mΩ | |
| Series | WE-MK | |
| Maximum Self Resonant Frequency | 500MHz | |
| Minimum Quality Factor | 8 | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 180 nH | ||
Maximum DC Current 150mA | ||
Tolerance 5% | ||
Maximum DC Resistance 3380mΩ | ||
Series WE-MK | ||
Maximum Self Resonant Frequency 500MHz | ||
Minimum Quality Factor 8 | ||
- COO (Country of Origin):
- TW

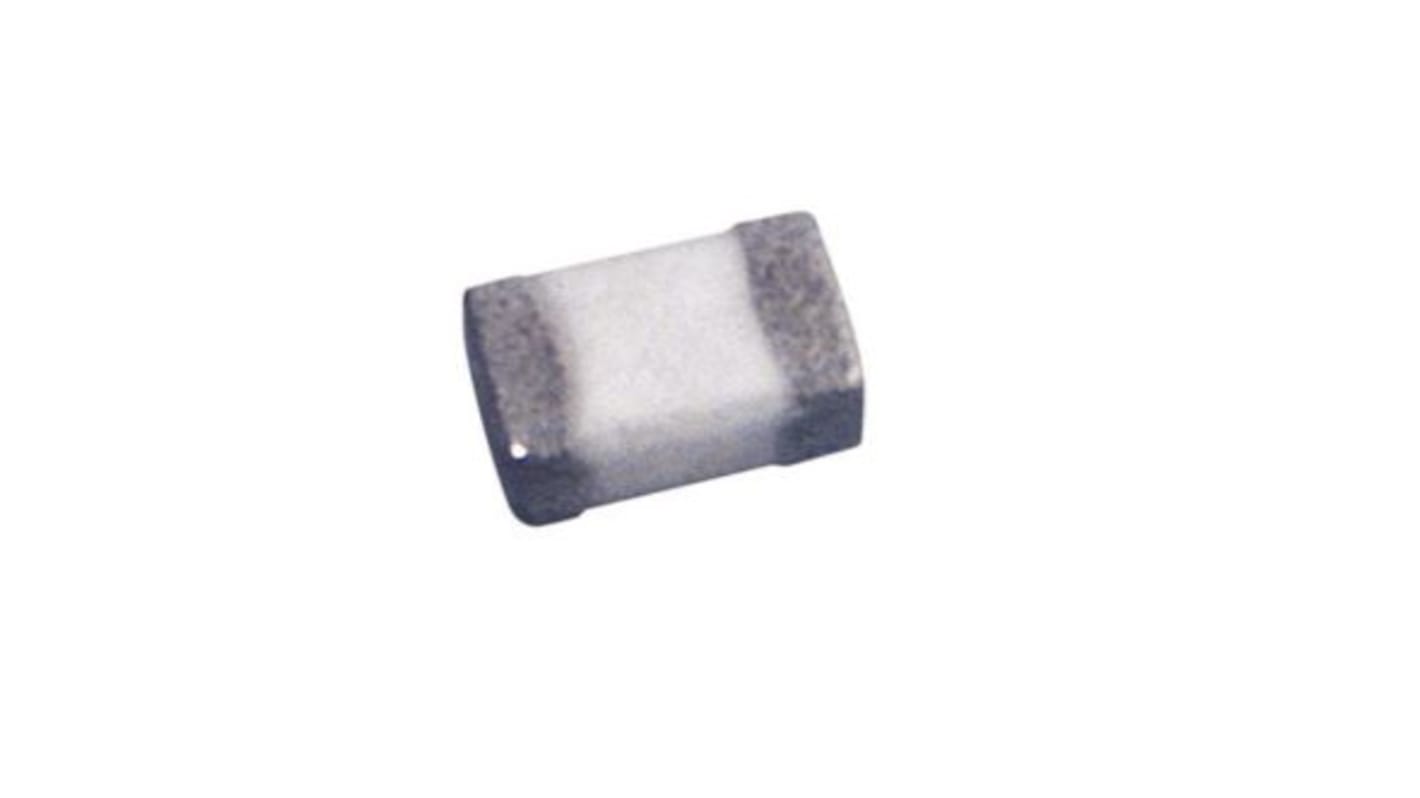

The Wurth Elektronik WE-MK multilayer ceramic SMT inductor has 180nH inductance. It is use in high frequency circuits, Bluetooth and wireless LAN. It has inductance very stable over temperature.
Coil integrated in a multilayer ceramic structure
All inductors with polarity marking
High self resonant frequency
Inductive tolerances of 5%
All inductors with polarity marking
High self resonant frequency
Inductive tolerances of 5%
± 0.3 nH
Operating temperature: –55°C to +125°C
Inductance very stable over temperature
Recommended solder profi
Operating temperature: –55°C to +125°C
Inductance very stable over temperature
Recommended solder profi
