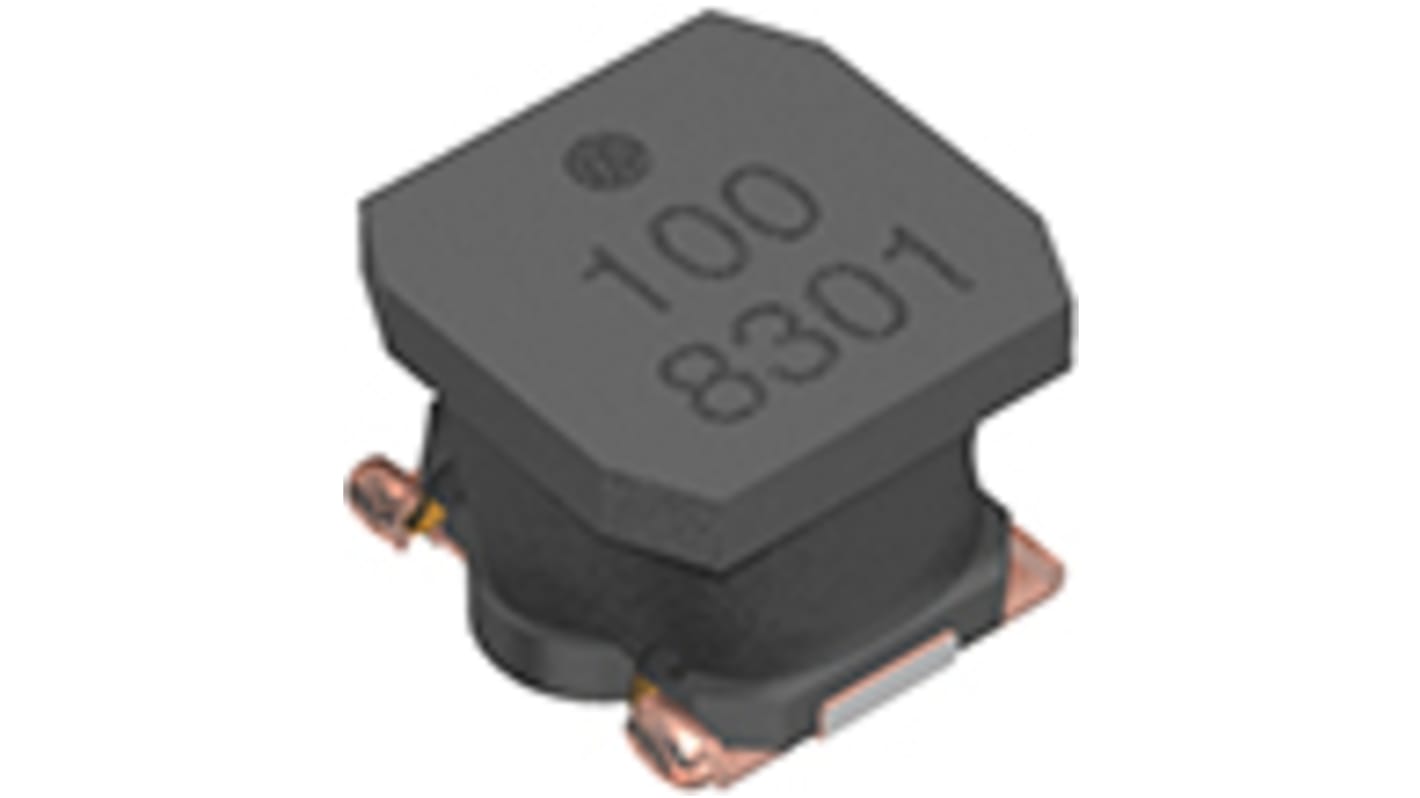

TDK, VLS-EX-H, 6045 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 220 μH ±20 % 800 mA Idc

View all Surface Mount Inductors
Bulk discount available

Subtotal (1 tape of 5 units)*

£1.62

(exc. VAT)

£1.945

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 965 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
5 - 45£0.324£1.62
50 - 95£0.226£1.13
100 - 495£0.196£0.98
500 +£0.168£0.84

*price indicative

Packaging Options:
RS Stock No.:
213-8204
Mfr. Part No.:
VLS6045EX-221M-H
Brand:
TDK
Find similar products by selecting one or more attributes.
Select all

Brand

TDK

Inductance

220 μH

Product Type

Wirewound Surface Mount Inductor

Maximum DC Current

800mA

Package/Case

6045

Packaging

Tape & Reel

Length

6mm

Automotive Standard

AEC-Q200

Shielding

Yes

Maximum DC Resistance

1.495Ω

Minimum Operating Temperature

-40°C

Series

VLS-EX-H

Inductance Tolerance

±20 %

Maximum Operating Temperature

125°C

Depth

6.3mm

Standards/Approvals

RoHS

Height

4.5mm

Core Material

Ferrite

Termination Style

Surface Mount

Inductor Construction

Shielded

COO (Country of Origin):
KR
The TDK VLS-EX-H series Ferrite core Magnetic Shield Wire Wound, 220uH SMD inductor.

Magnetic shield type wound inductor for power circuits.

High magnetic shield construction achieved by a ferrite magnetic material and compatible with high-density mounting.

Larger current and lower Rdc were achieved by optimizing the ferrite core figure.

Compliant with AEC-Q200
