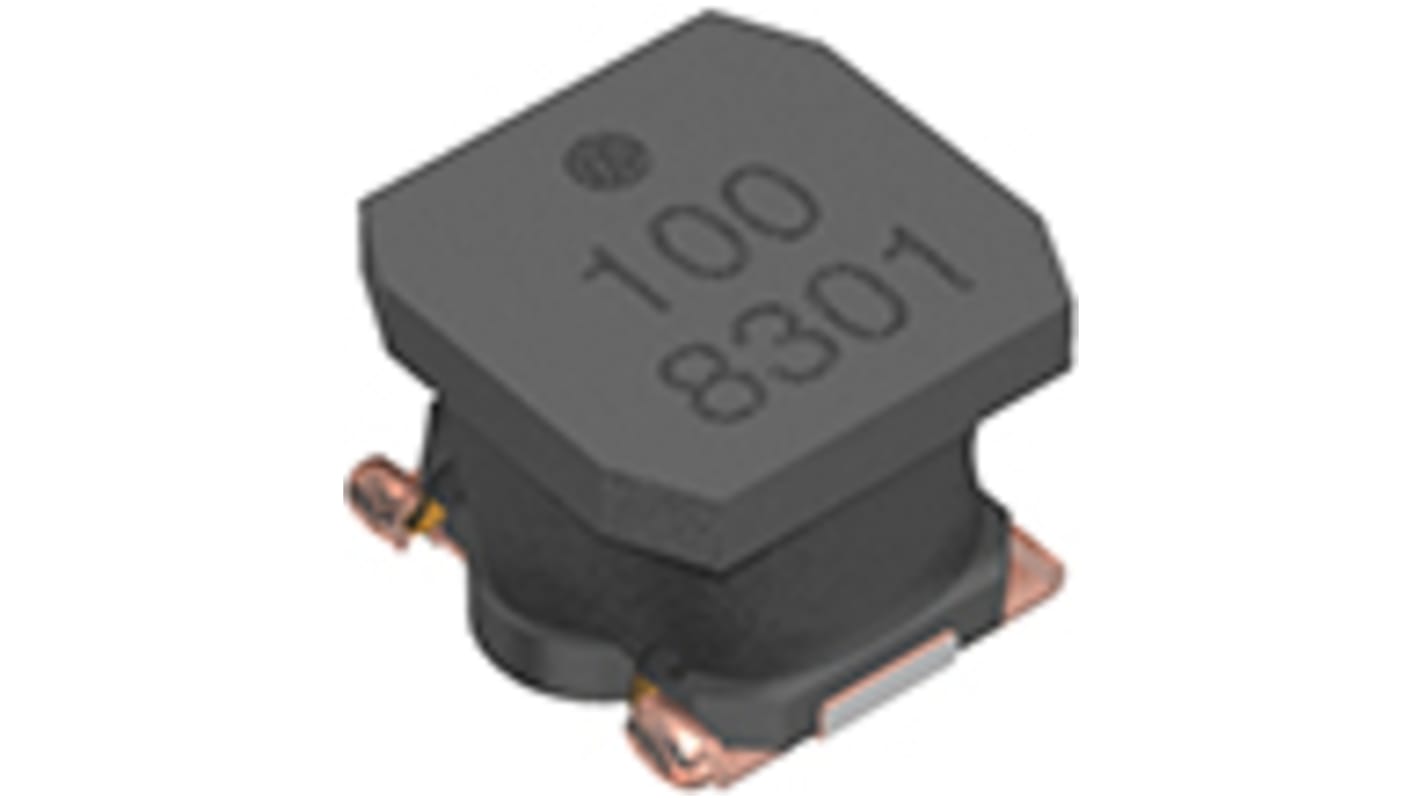

TDK, VLS-EX-H, 6045 Yes Wirewound Surface Mount Inductor with a Ferrite Core, 220 μH Shielded ±20 % 800 mA Idc

View all Surface Mount Inductors

Subtotal (1 reel of 1500 units)*

£252.00

(exc. VAT)

£303.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 10 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1500 +£0.168£252.00

*price indicative

RS Stock No.:
213-8203
Mfr. Part No.:
VLS6045EX-221M-H
Brand:
TDK
Find similar products by selecting one or more attributes.
Select all

Brand

TDK

Product Type

Wirewound Surface Mount Inductor

Inductance

220 μH

Maximum DC Current

800mA

Package/Case

6045

Packaging

Tape & Reel

Length

6mm

Automotive Standard

AEC-Q200

Shielding

Yes

Minimum Operating Temperature

-40°C

Maximum DC Resistance

1.495Ω

Series

VLS-EX-H

Inductance Tolerance

±20 %

Maximum Operating Temperature

125°C

Termination Style

Surface Mount

Standards/Approvals

RoHS

Core Material

Ferrite

Depth

6.3mm

Height

4.5mm

Inductor Construction

Shielded

COO (Country of Origin):
KR
The TDK VLS-EX-H series Ferrite core Magnetic Shield Wire Wound, 220uH SMD inductor.

Magnetic shield type wound inductor for power circuits.

High magnetic shield construction achieved by a ferrite magnetic material and compatible with high-density mounting.

Larger current and lower Rdc were achieved by optimizing the ferrite core figure.

Compliant with AEC-Q200
