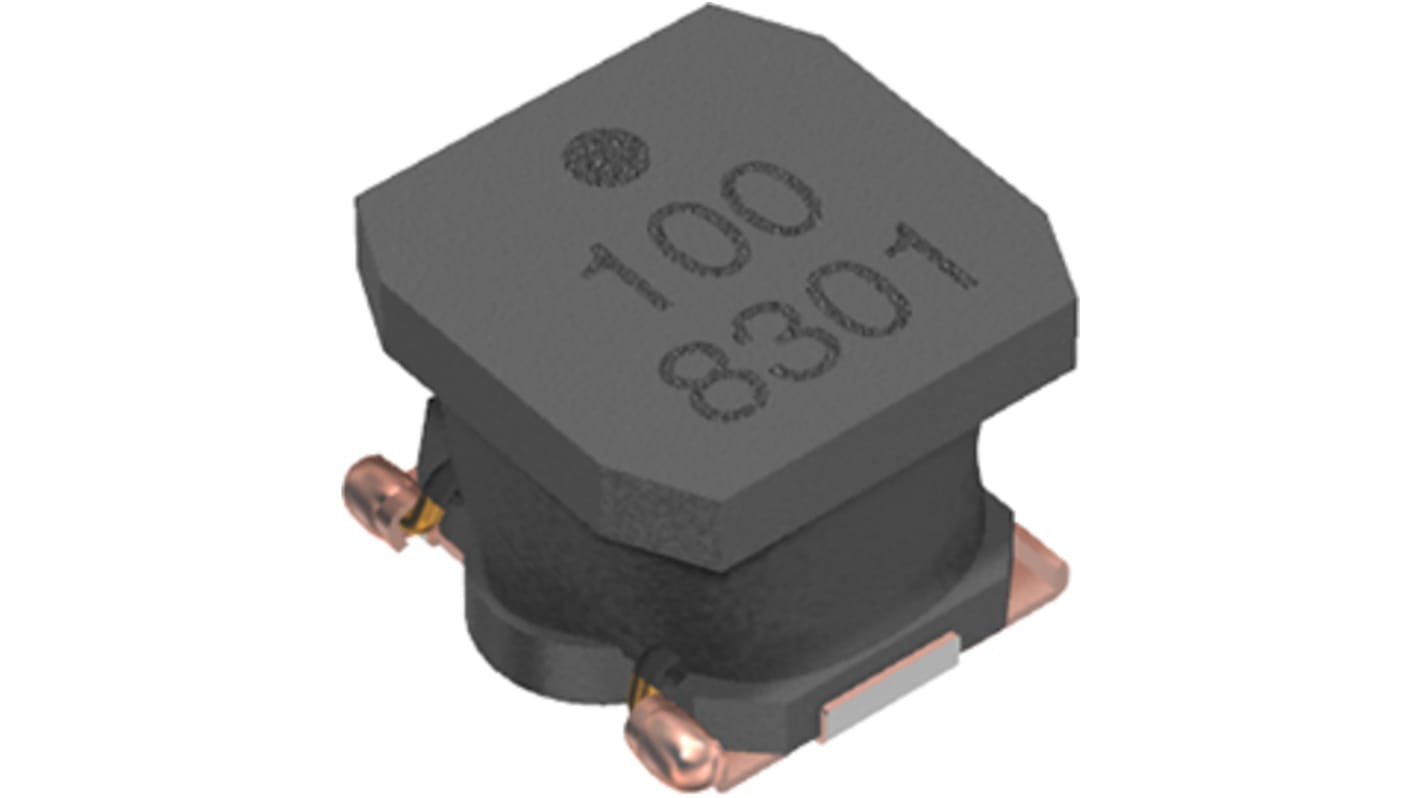

TDK, VLS-EX-H, 6045 Shielded Wire-wound SMD Inductor with a Ferrite Core Core, 100 μH ±20% Shielded 1.1A Idc
- RS Stock No.:
- 213-8198
- Mfr. Part No.:
- VLS6045EX-101M-H
- Brand:
- TDK
950 In stock - FREE next working day delivery available
Price Each (On a Tape of 5)
£0.40
(exc. VAT)
£0.48
(inc. VAT)
Units | Per unit | Per Tape* |
---|---|---|
5 - 45 | £0.40 | £2.00 |
50 - 95 | £0.28 | £1.40 |
100 - 495 | £0.24 | £1.20 |
500 + | £0.208 | £1.04 |
*price indicative
- RS Stock No.:
- 213-8198
- Mfr. Part No.:
- VLS6045EX-101M-H
- Brand:
- TDK
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- KR
Product Details
The TDK VLS-EX-H series Ferrite core Magnetic Shield Wire Wound, 100uH SMD inductor.
Magnetic shield type wound inductor for power circuits.
High magnetic shield construction achieved by a ferrite magnetic material and compatible with high-density mounting.
Larger current and lower Rdc were achieved by optimizing the ferrite core figure.
Compliant with AEC-Q200
High magnetic shield construction achieved by a ferrite magnetic material and compatible with high-density mounting.
Larger current and lower Rdc were achieved by optimizing the ferrite core figure.
Compliant with AEC-Q200
Specifications
Attribute | Value |
---|---|
Inductance | 100 μH |
Maximum DC Current | 1.1A |
Package/Case | 6045 |
Length | 6mm |
Automotive Standard | AEC-Q200 |
Depth | 6.3mm |
Height | 4.5mm |
Dimensions | 6.0 x 6.3 x 4.5mm |
Shielded | Yes |
Tolerance | ±20% |
Maximum DC Resistance | 611mΩ |
Series | VLS-EX-H |
Core Material | Ferrite Core |
Inductor Construction | Shielded |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +125°C |
