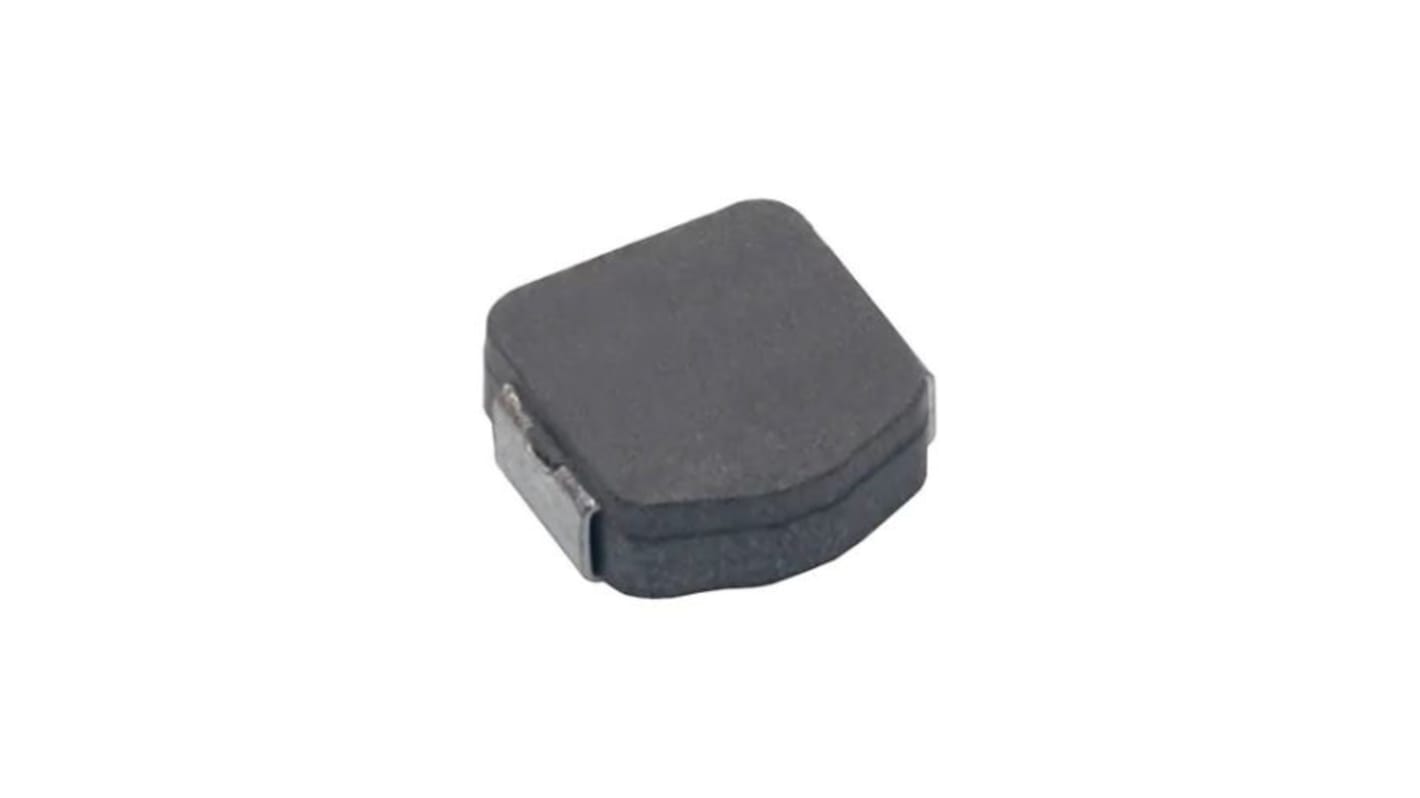

KEMET, MPX, 2213 Shielded Wirewound Surface Mount Inductor with a Metal Composite Core, 3.3 μH ±20 % 54 A Idc
- RS Stock No.:
- 210-2277
- Mfr. Part No.:
- MPX1D2213L3R3
- Brand:
- KEMET
Subtotal (1 reel of 50 units)*
£392.10
(exc. VAT)
£470.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 11 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 50 + | £7.842 | £392.10 |
*price indicative
- RS Stock No.:
- 210-2277
- Mfr. Part No.:
- MPX1D2213L3R3
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 3.3μH | |
| Maximum DC Current | 54A | |
| Package/Case | 2213 | |
| Length | 22.5mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Maximum DC Resistance | 1.8mΩ | |
| Minimum Operating Temperature | -55°C | |
| Series | MPX | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 155°C | |
| Termination Style | Surface Mount | |
| Height | 13mm | |
| Core Material | Metal Composite | |
| Depth | 22mm | |
| Standards/Approvals | RoHS | |
| Maximum Self Resonant Frequency | 11MHz | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 3.3μH | ||
Maximum DC Current 54A | ||
Package/Case 2213 | ||
Length 22.5mm | ||
Packaging Tape & Reel | ||
Automotive Standard No | ||
Shielding Yes | ||
Maximum DC Resistance 1.8mΩ | ||
Minimum Operating Temperature -55°C | ||
Series MPX | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 155°C | ||
Termination Style Surface Mount | ||
Height 13mm | ||
Core Material Metal Composite | ||
Depth 22mm | ||
Standards/Approvals RoHS | ||
Maximum Self Resonant Frequency 11MHz | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- JP
The KEMET MPX metal composite inductors are ideal for use in DC to DC switching power supplies, as power inductors as well as EMI filter inductors. The metal composite core has high saturation capabilities maintaining functionality with high current transients and is characterized by temperature stable inductance.
Metal composite powder
Shielded construction, SMD configuration
Operating temperature up to +155°C
Low acoustic noise
Low magnetic flux leakage
