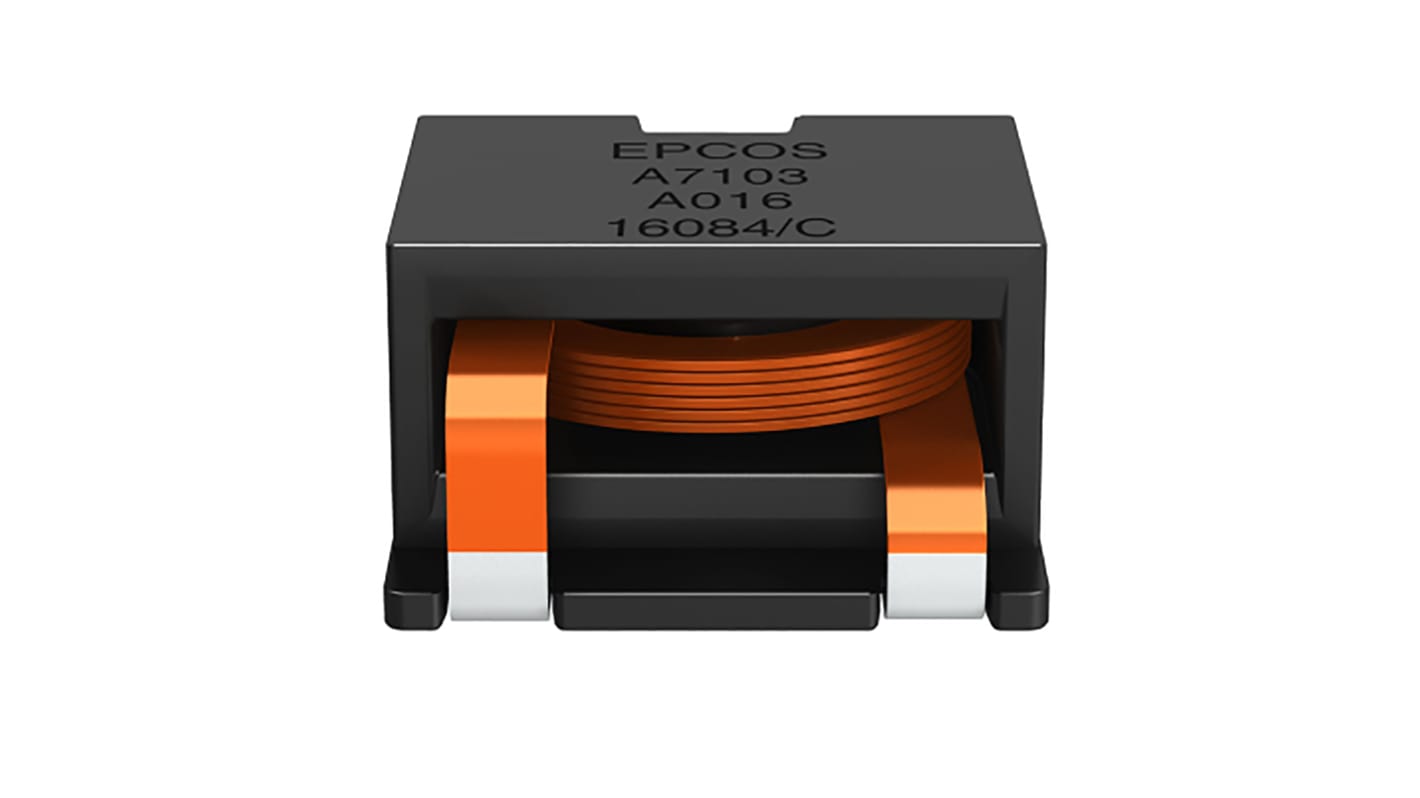

EPCOS, B82559_A016 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 30 μH ±10 % 9.2 A Idc
- RS Stock No.:
- 185-8208
- Mfr. Part No.:
- B82559B0303A016
- Brand:
- EPCOS
Bulk discount available
Subtotal (1 tape of 1 unit)*
£3.88
(exc. VAT)
£4.66
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 49 unit(s), ready to ship
Tape(s) | Per Tape |
|---|---|
| 1 - 4 | £3.88 |
| 5 - 49 | £3.57 |
| 50 - 99 | £2.49 |
| 100 + | £2.32 |
*price indicative
- RS Stock No.:
- 185-8208
- Mfr. Part No.:
- B82559B0303A016
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 30μH | |
| Product Type | Wirewound Surface Mount Inductor | |
| Maximum DC Current | 9.2A | |
| Package/Case | Surface Mount | |
| Length | 17.3mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 16.5mΩ | |
| Pin Count | 3 | |
| Inductance Tolerance | ±10 % | |
| Maximum Operating Temperature | 150°C | |
| Series | B82559_A016 | |
| Standards/Approvals | RoHS | |
| Core Material | Ferrite | |
| Termination Style | Surface Mount | |
| Depth | 18.7mm | |
| Height | 10.95mm | |
| Maximum Self Resonant Frequency | 2MHz | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 30μH | ||
Product Type Wirewound Surface Mount Inductor | ||
Maximum DC Current 9.2A | ||
Package/Case Surface Mount | ||
Length 17.3mm | ||
Packaging Tape & Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 16.5mΩ | ||
Pin Count 3 | ||
Inductance Tolerance ±10 % | ||
Maximum Operating Temperature 150°C | ||
Series B82559_A016 | ||
Standards/Approvals RoHS | ||
Core Material Ferrite | ||
Termination Style Surface Mount | ||
Depth 18.7mm | ||
Height 10.95mm | ||
Maximum Self Resonant Frequency 2MHz | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- CN
High rated current
Extremely low DC resistance
Very low profile and extremely small footprint
Suitable for pick-and-place processes
Applications
Energy storage chokes for
DC-DC converters
VRM modules
POL converters
Solar converters
