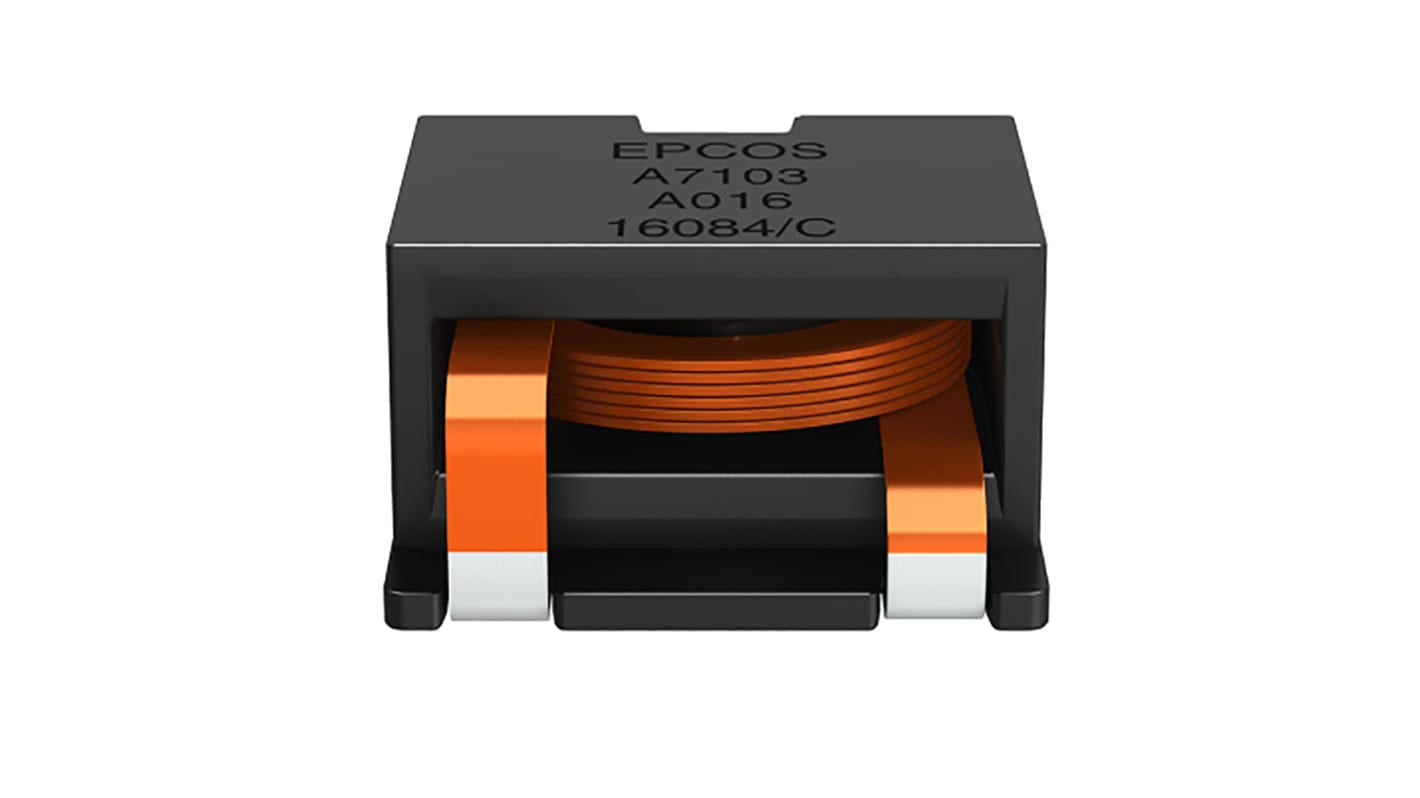

EPCOS, B82559_A016 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 6.8 μH ±10 % 15.5 A Idc
- RS Stock No.:
- 185-7941
- Mfr. Part No.:
- B82559B6682A016
- Brand:
- EPCOS
Subtotal (1 reel of 240 units)*
£0.48
(exc. VAT)
£0.48
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 240 + | £0.002 | £0.48 |
*price indicative
- RS Stock No.:
- 185-7941
- Mfr. Part No.:
- B82559B6682A016
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 6.8μH | |
| Maximum DC Current | 15.5A | |
| Package/Case | Surface Mount | |
| Length | 17.3mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 6.8mΩ | |
| Inductance Tolerance | ±10 % | |
| Series | B82559_A016 | |
| Maximum Operating Temperature | 150°C | |
| Termination Style | Surface Mount | |
| Depth | 18.7mm | |
| Height | 8.35mm | |
| Core Material | Ferrite | |
| Standards/Approvals | RoHS | |
| Maximum Self Resonant Frequency | 2MHz | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 6.8μH | ||
Maximum DC Current 15.5A | ||
Package/Case Surface Mount | ||
Length 17.3mm | ||
Packaging Tape & Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Pin Count 3 | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 6.8mΩ | ||
Inductance Tolerance ±10 % | ||
Series B82559_A016 | ||
Maximum Operating Temperature 150°C | ||
Termination Style Surface Mount | ||
Depth 18.7mm | ||
Height 8.35mm | ||
Core Material Ferrite | ||
Standards/Approvals RoHS | ||
Maximum Self Resonant Frequency 2MHz | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- CN
High rated current
Extremely low DC resistance
Very low profile and extremely small footprint
Suitable for pick-and-place processes
Applications
Energy storage chokes for
DC-DC converters
VRM modules
POL converters
Solar converters
