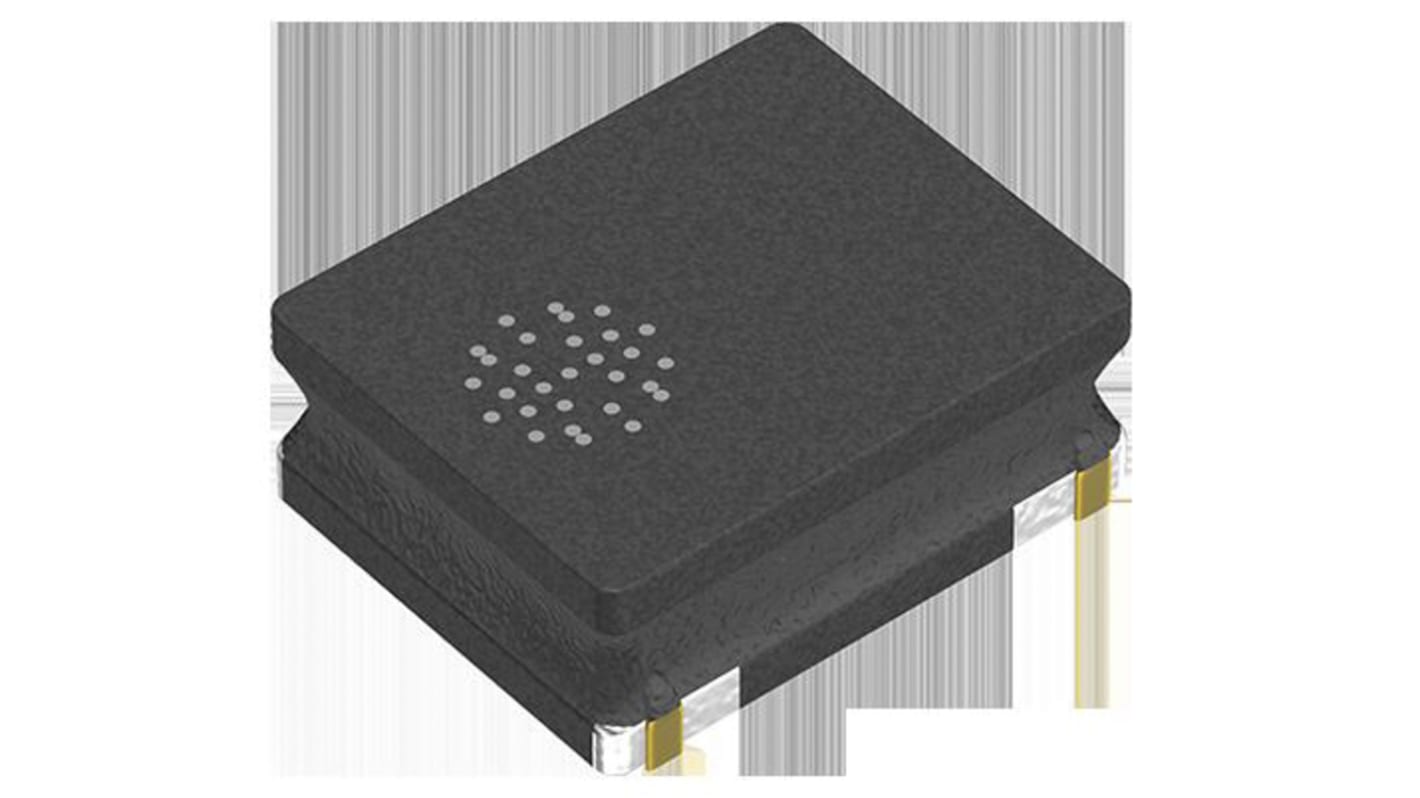

TDK, VLS-CX-1, 252010 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 1 μH ±20 % 2.29 A Idc
- RS Stock No.:
- 181-4910
- Mfr. Part No.:
- VLS252010CX-1R0M-1
- Brand:
- TDK
Subtotal (1 reel of 2000 units)*
£306.00
(exc. VAT)
£368.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 23 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.153 | £306.00 |
*price indicative
- RS Stock No.:
- 181-4910
- Mfr. Part No.:
- VLS252010CX-1R0M-1
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Inductance | 1μH | |
| Product Type | Wirewound Surface Mount Inductor | |
| Maximum DC Current | 2.29A | |
| Package/Case | 252010 | |
| Length | 2.5mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 65mΩ | |
| Maximum Operating Temperature | 105°C | |
| Series | VLS-CX-1 | |
| Inductance Tolerance | ±20 % | |
| Standards/Approvals | Lead Free, REACH SVHC-Free, RoHS, Halogen Free | |
| Height | 1mm | |
| Depth | 2mm | |
| Termination Style | Surface Mount | |
| Core Material | Ferrite | |
| Inductor Construction | Wirewound | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Inductance 1μH | ||
Product Type Wirewound Surface Mount Inductor | ||
Maximum DC Current 2.29A | ||
Package/Case 252010 | ||
Length 2.5mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 65mΩ | ||
Maximum Operating Temperature 105°C | ||
Series VLS-CX-1 | ||
Inductance Tolerance ±20 % | ||
Standards/Approvals Lead Free, REACH SVHC-Free, RoHS, Halogen Free | ||
Height 1mm | ||
Depth 2mm | ||
Termination Style Surface Mount | ||
Core Material Ferrite | ||
Inductor Construction Wirewound | ||
- COO (Country of Origin):
- CN
Magnetic shield type wound inductor for power circuits using a ferrite magnetic material.
High magnetic shield construction and compatible with high-density mounting.
Larger current and lower Rdc were achieved by optimizing the ferrite core figure.
APPLICATION
Smart phones, tablet terminals, HDDs, SSDs, DVCs, DSCs, mobile display panels, portable game devices, compact power supply modules, other
Application guides: Smart phones/tablets
