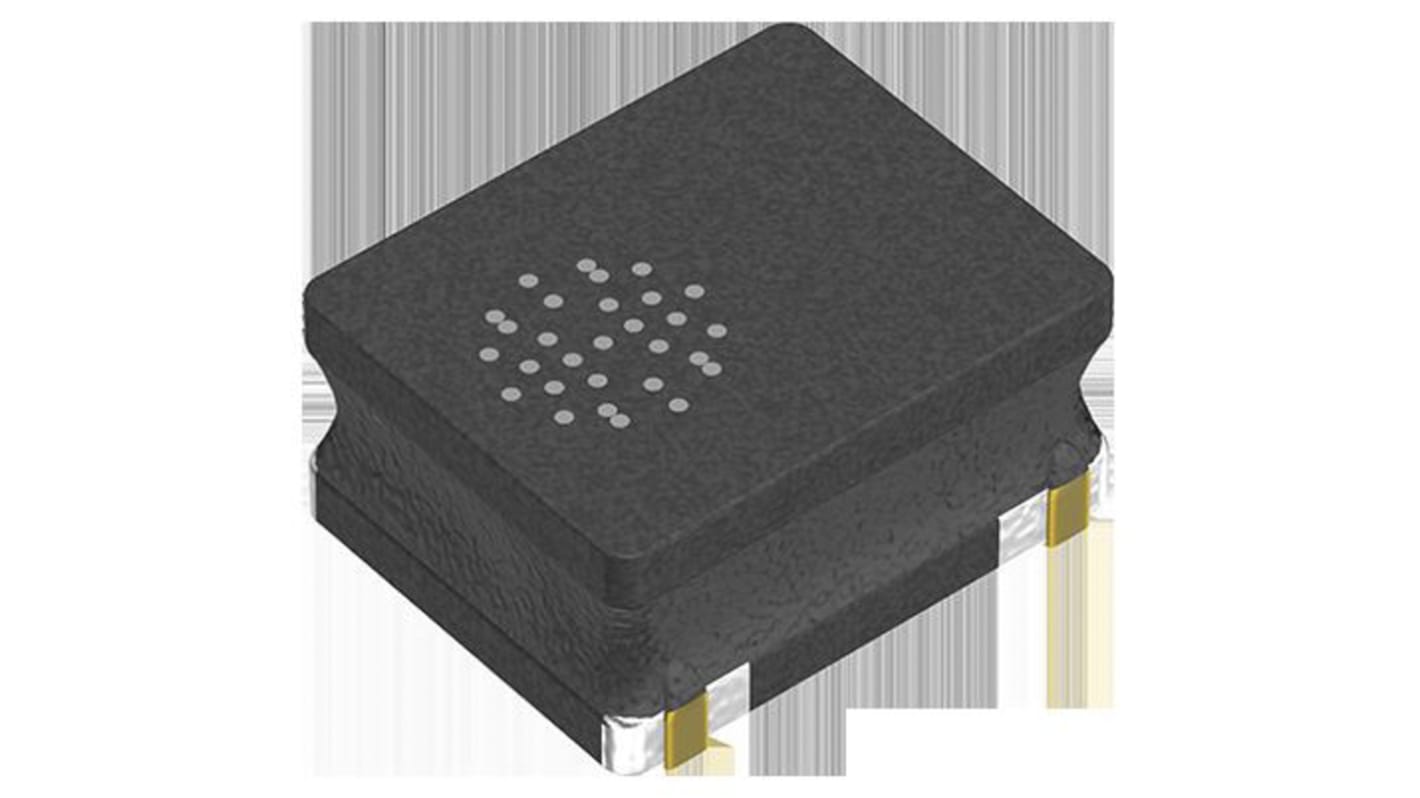

TDK, VLS-CX-1, 201610 Shielded Wire-wound SMD Inductor with a Ferrite Core, 1 μH ±20% Wire-Wound 2.14A Idc

RS Stock No.:: 181-4866
Mfr. Part No.:: VLS201610CX-1R0M-1
Brand:: TDK

TDK, VLS-CX-1, 201610 Shielded Wire-wound SMD Inductor with a Ferrite Core, 1 μH ±20% Wire-Wound 2.14A Idc

View this category

Available to back order for despatch 20/08/2024

Added

View Basket

Price Each (On a Reel of 2000)

£0.128

(exc. VAT)

£0.154

(inc. VAT)

Units	Per unit	Per Reel*
2000 +	£0.128	£256.00
*price indicative

RS Stock No.:: 181-4866
Mfr. Part No.:: VLS201610CX-1R0M-1
Brand:: TDK

Technical Reference

Datasheet VLS201610CX-1R0M-1

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Magnetic shield type wound inductor for power circuits using a ferrite magnetic material.
High magnetic shield construction and compatible with high-density mounting.
Larger current and lower Rdc were achieved by optimizing the ferrite core figure.
APPLICATION
Smart phones, tablet terminals, HDDs, SSDs, DVCs, DSCs, mobile display panels, portable game devices, compact power supply modules, other
Application guides: Smart phones/tablets

Specifications

Attribute	Value
Inductance	1 μH
Maximum DC Current	2.14A
Package/Case	201610
Length	2mm
Depth	1.6mm
Height	1mm
Dimensions	2 x 1.6 x 1mm
Shielded	Yes
Tolerance	±20%
Maximum DC Resistance	79mΩ
Series	VLS-CX-1
Core Material	Ferrite
Inductor Construction	Wire-Wound
Maximum Operating Temperature	+105°C
Minimum Operating Temperature	-40°C
