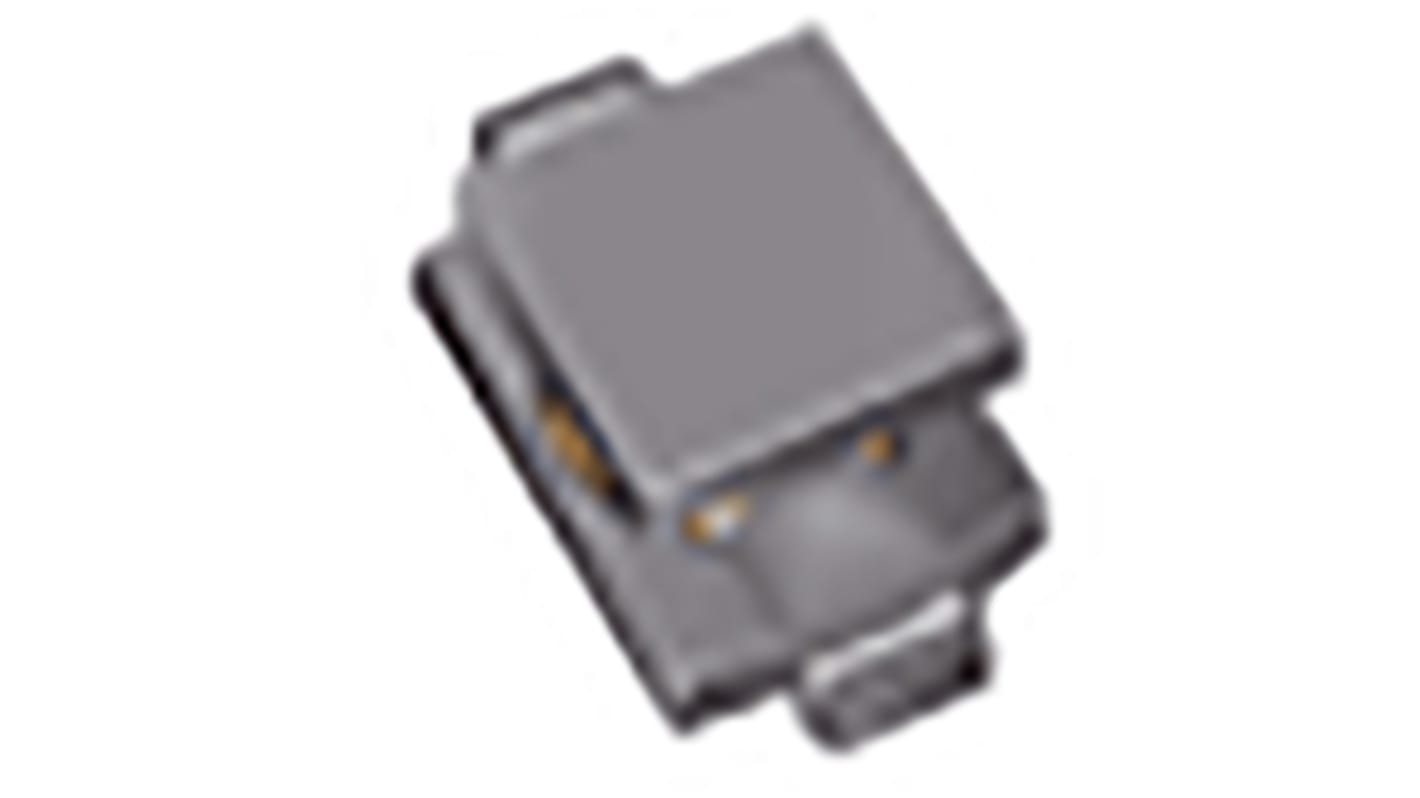

Bourns, SDR0703, 0703 Unshielded Wire-wound SMD Inductor with a Ferrite DR Core, 10 μH ±10% Ferrite Core 1A Idc Q:23
- RS Stock No.:
- 172-8439
- Mfr. Part No.:
- SDR0703-100KL
- Brand:
- Bourns
Bulk discount available
Subtotal (1 reel of 500 units)*
£136.50
(exc. VAT)
£164.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,500 unit(s) shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 - 500 | £0.273 | £136.50 |
| 1000 - 2000 | £0.248 | £124.00 |
| 2500 - 4500 | £0.241 | £120.50 |
| 5000 - 12000 | £0.235 | £117.50 |
| 12500 + | £0.229 | £114.50 |
*price indicative
- RS Stock No.:
- 172-8439
- Mfr. Part No.:
- SDR0703-100KL
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 10 μH | |
| Maximum DC Current | 1A | |
| Package/Case | 0703 | |
| Length | 6.5mm | |
| Depth | 4.5mm | |
| Height | 2.7mm | |
| Dimensions | 6.5 x 4.5 x 2.7mm | |
| Shielded | No | |
| Tolerance | ±10% | |
| Maximum DC Resistance | 170mΩ | |
| Series | SDR0703 | |
| Core Material | Ferrite DR | |
| Maximum Self Resonant Frequency | 36MHz | |
| Maximum Operating Temperature | +125°C | |
| Inductor Construction | Ferrite Core | |
| Minimum Operating Temperature | -40°C | |
| Minimum Quality Factor | 23 | |
Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 10 μH | ||
Maximum DC Current 1A | ||
Package/Case 0703 | ||
Length 6.5mm | ||
Depth 4.5mm | ||
Height 2.7mm | ||
Dimensions 6.5 x 4.5 x 2.7mm | ||
Shielded No | ||
Tolerance ±10% | ||
Maximum DC Resistance 170mΩ | ||
Series SDR0703 | ||
Core Material Ferrite DR | ||
Maximum Self Resonant Frequency 36MHz | ||
Maximum Operating Temperature +125°C | ||
Inductor Construction Ferrite Core | ||
Minimum Operating Temperature -40°C | ||
Minimum Quality Factor 23 | ||
- COO (Country of Origin):
- CN
SDR0703 Series Wire Wound Chokes
Available in E12 series
Low height of only 2.7 mm
High Saturation Current of 3.2 Amps
RoHS compliant
Applications in Input/output of DC/DC converters and Power supplies for: Portable communication equipment, Camcorders, LCD TVs and Car radios
Low height of only 2.7 mm
High Saturation Current of 3.2 Amps
RoHS compliant
Applications in Input/output of DC/DC converters and Power supplies for: Portable communication equipment, Camcorders, LCD TVs and Car radios
Available in E12 series
Low height of only 2.7 mm
High Isat of 3.2 amps
Applications
Input/output of DC/DC converters
Power supplies for:
Portable communications equipment
Camcorders
LCD Tvs
Low height of only 2.7 mm
High Isat of 3.2 amps
Applications
Input/output of DC/DC converters
Power supplies for:
Portable communications equipment
Camcorders
LCD Tvs
