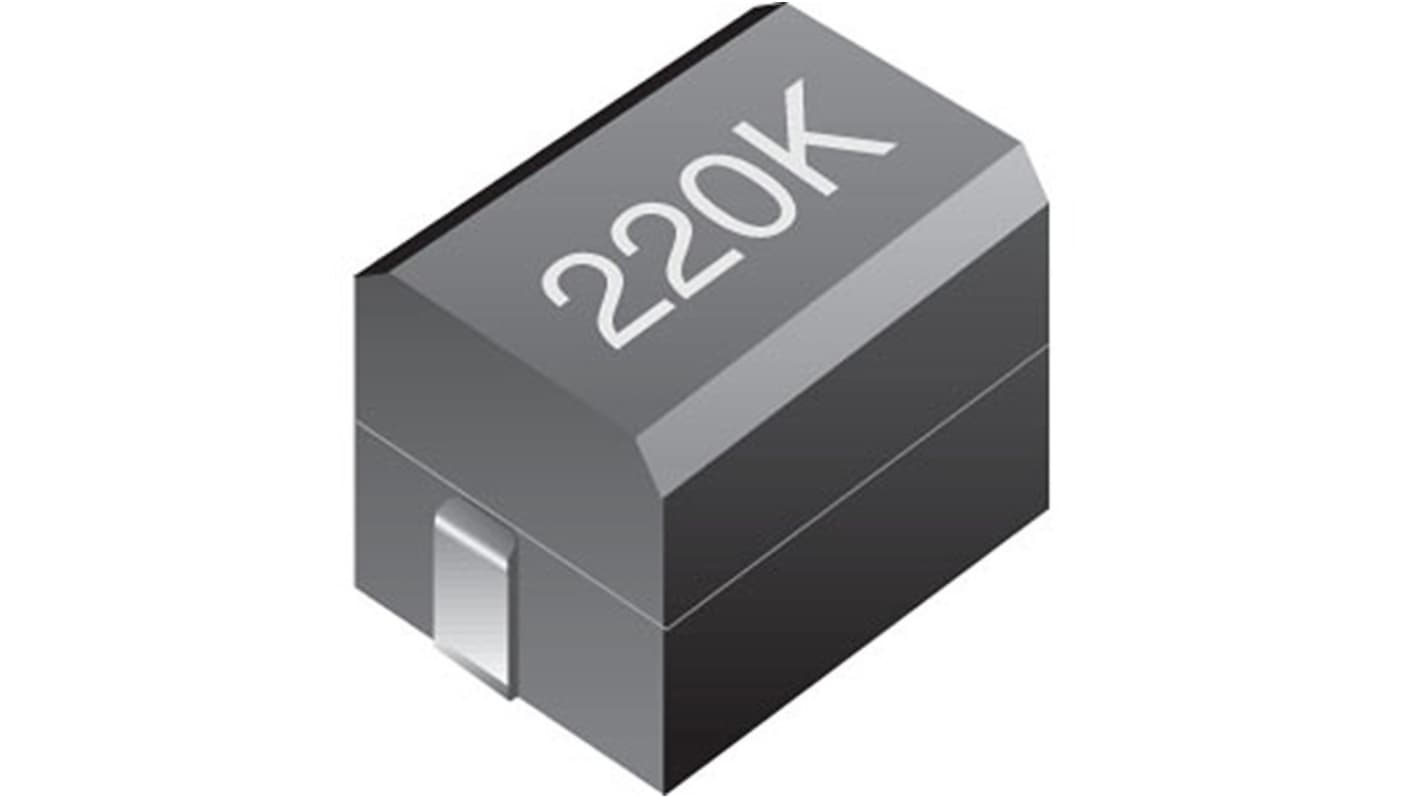

Bourns, CC453232, 4532 Unshielded Wire-wound SMD Inductor with a Ferrite Core, 10 μH ±10% 550mA Idc Q:10
- RS Stock No.:
- 466-186
- Mfr. Part No.:
- CC453232-100KL
- Brand:
- Bourns
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 466-186
- Mfr. Part No.:
- CC453232-100KL
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 10 μH | |
| Maximum DC Current | 550mA | |
| Package/Case | 4532 | |
| Length | 4.5mm | |
| Depth | 3.2mm | |
| Shielded | No | |
| Tolerance | ±10% | |
| Series | CC453232 | |
| Core Material | Ferrite | |
| Minimum Quality Factor | 10 | |
Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 10 μH | ||
Maximum DC Current 550mA | ||
Package/Case 4532 | ||
Length 4.5mm | ||
Depth 3.2mm | ||
Shielded No | ||
Tolerance ±10% | ||
Series CC453232 | ||
Core Material Ferrite | ||
Minimum Quality Factor 10 | ||
- COO (Country of Origin):
- CN
The Bourns Inductor operates within a wide temperature range of -40°C to +125°C, making it suitable for various applications. Its 1812 size ensures compactness while maintaining a high current rating for efficient performance in demanding environments. Ideal for circuits requiring robust power handling.
RoHS compliant
Wirewound chip inductor
Wirewound chip inductor
