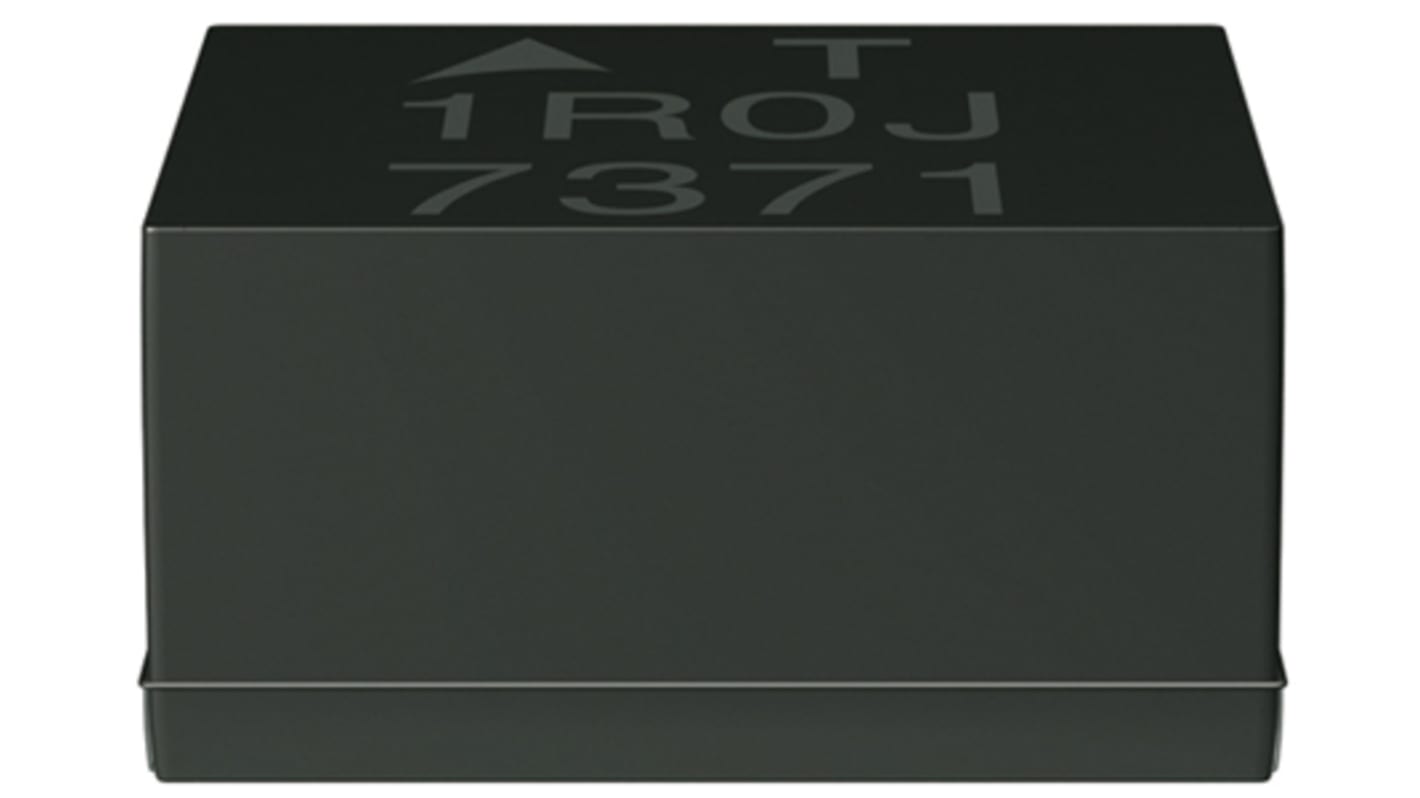

EPCOS, SIMID, 1210 (3225M) Shielded Wire-wound SMD Inductor with a Ferrite Core, 1 μH ±10% Ferrite Core 400mA Idc Q:30
- RS Stock No.:
- 167-0558
- Mfr. Part No.:
- B82422T1102K000
- Brand:
- EPCOS
Save 5% when you buy 6000 units
Subtotal (1 reel of 2000 units)*
£256.00
(exc. VAT)
£308.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
2000 - 2000 | £0.128 | £256.00 |
4000 - 4000 | £0.125 | £250.00 |
6000 + | £0.121 | £242.00 |
*price indicative
- RS Stock No.:
- 167-0558
- Mfr. Part No.:
- B82422T1102K000
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EPCOS | |
Inductance | 1 μH | |
Maximum DC Current | 400mA | |
Package/Case | 1210 (3225M) | |
Length | 3.2mm | |
Automotive Standard | AEC-Q200 | |
Depth | 2.5mm | |
Height | 2mm | |
Dimensions | 3.2 x 2.5 x 2mm | |
Shielded | Yes | |
Tolerance | ±10% | |
Maximum DC Resistance | 600mΩ | |
Series | SIMID | |
Core Material | Ferrite | |
Maximum Self Resonant Frequency | 300MHz | |
Maximum Operating Temperature | +125°C | |
Moulded | Yes | |
Minimum Quality Factor | 30 | |
Inductor Construction | Ferrite Core | |
Minimum Operating Temperature | -55°C | |
Select all | ||
---|---|---|
Brand EPCOS | ||
Inductance 1 μH | ||
Maximum DC Current 400mA | ||
Package/Case 1210 (3225M) | ||
Length 3.2mm | ||
Automotive Standard AEC-Q200 | ||
Depth 2.5mm | ||
Height 2mm | ||
Dimensions 3.2 x 2.5 x 2mm | ||
Shielded Yes | ||
Tolerance ±10% | ||
Maximum DC Resistance 600mΩ | ||
Series SIMID | ||
Core Material Ferrite | ||
Maximum Self Resonant Frequency 300MHz | ||
Maximum Operating Temperature +125°C | ||
Moulded Yes | ||
Minimum Quality Factor 30 | ||
Inductor Construction Ferrite Core | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- HU
Epcos 1210 B82422T SIMID Series Wire Wound Inductors
B82422T SIMID Series Wire Wound Inductors have a ceramic or ferrite core
High rated inductance 0.010 to 100μH
Rated current 60 to 450 mA
High Q factor
High resonance frequency
Applications include Filtering of supply voltages, coupling, decoupling, Antenna systems, Automotive electronics, Telecommunications, Consumer and data processing equipment and Industrial electronics
High rated inductance 0.010 to 100μH
Rated current 60 to 450 mA
High Q factor
High resonance frequency
Applications include Filtering of supply voltages, coupling, decoupling, Antenna systems, Automotive electronics, Telecommunications, Consumer and data processing equipment and Industrial electronics
