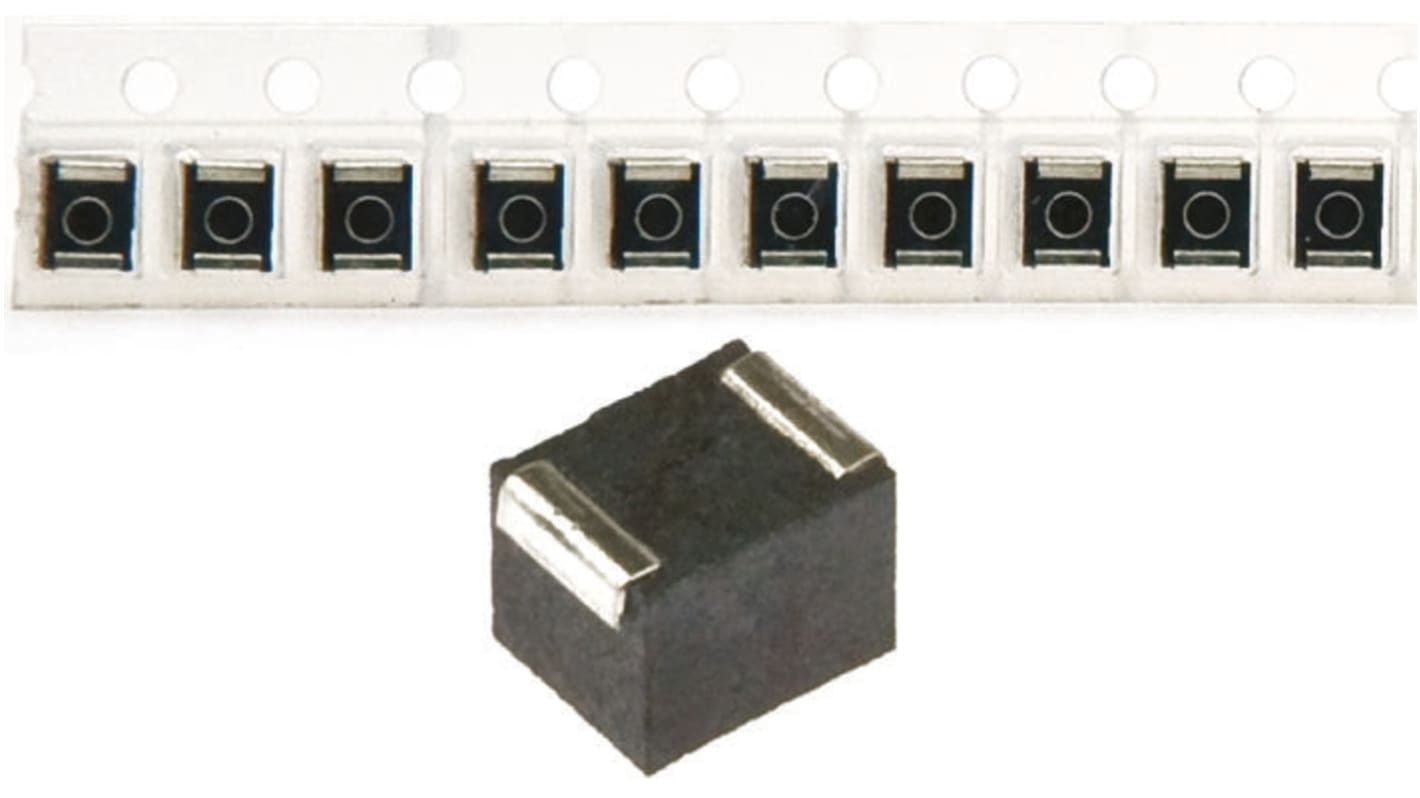

TDK, NLV-PF, 1210 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 5.6 μH ±5 % 200 mA Idc Q:30

Subtotal (1 reel of 2000 units)*

£148.00

(exc. VAT)

£178.00

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
2000 +	£0.074	£148.00

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TDK
	Inductance	5.6 μH
	Product Type	Wirewound Surface Mount Inductor
	Maximum DC Current	200mA
	Package/Case	1210
	Length	3.2mm
	Automotive Standard	No
	Shielding	Yes
	Pin Count	2
	Minimum Operating Temperature	-40°C
	Maximum DC Resistance	1.6Ω
	Maximum Operating Temperature	105°C
	Series	NLV-PF
	Inductance Tolerance	±5 %
	Core Material	Ferrite
	Standards/Approvals	RoHS
	Depth	2.5mm
	Termination Style	Surface Mount
	Height	2.2mm
	Maximum Self Resonant Frequency	45MHz
	Inductor Construction	Wirewound
	Minimum Quality Factor	30
	Moulded	Yes

	Select all
	Brand TDK
	Inductance 5.6 μH
	Product Type Wirewound Surface Mount Inductor
	Maximum DC Current 200mA
	Package/Case 1210
	Length 3.2mm
	Automotive Standard No
	Shielding Yes
	Pin Count 2
	Minimum Operating Temperature -40°C
	Maximum DC Resistance 1.6Ω
	Maximum Operating Temperature 105°C
	Series NLV-PF
	Inductance Tolerance ±5 %
	Core Material Ferrite
	Standards/Approvals RoHS
	Depth 2.5mm
	Termination Style Surface Mount
	Height 2.2mm
	Maximum Self Resonant Frequency 45MHz
	Inductor Construction Wirewound
	Minimum Quality Factor 30
	Moulded Yes

SMD wound Coil inductors suitable for a wide range of signal line applications

High Q factor ensures Sharp frequency response

Highly heat resistant thermoplastic resin exterior package

Operating temperature range -40°C to +105°C

Applications include: TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc
