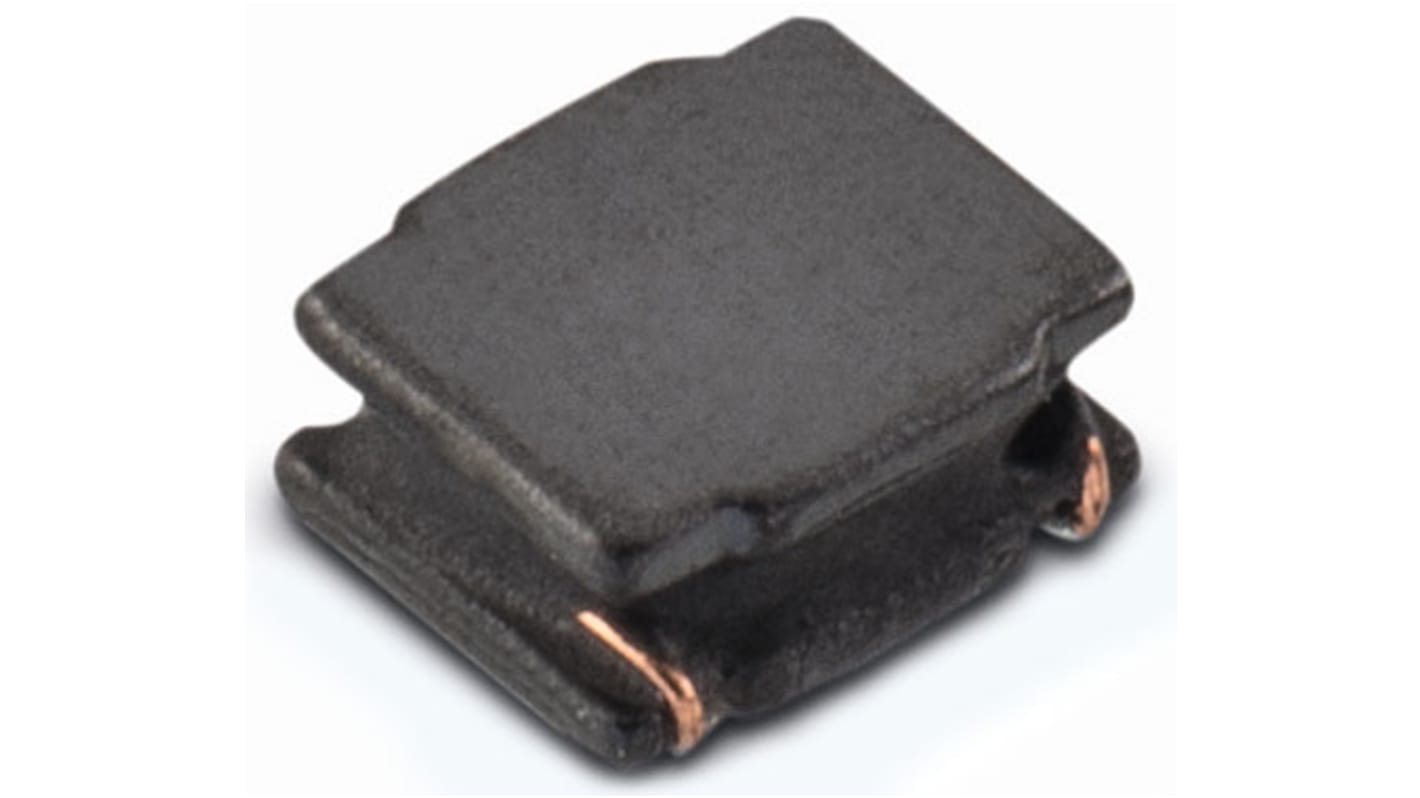

Wurth, WE-LQS, 2010 (5025M) Shielded Wire-wound SMD Inductor 0.33 μH ±20% Wire-Wound 2.57A Idc
- RS Stock No.:
- 135-4776
- Mfr. Part No.:
- 744040200033
- Brand:
- Wurth Elektronik
Subtotal (1 pack of 10 units)*
£3.41
(exc. VAT)
£4.09
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £0.341 | £3.41 |
*price indicative
- RS Stock No.:
- 135-4776
- Mfr. Part No.:
- 744040200033
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 0.33 μH | |
Maximum DC Current | 2.57A | |
Package/Case | 2010 (5025M) | |
Length | 2mm | |
Depth | 1.6mm | |
Height | 1mm | |
Dimensions | 2 x 1.6 x 1mm | |
Shielded | Yes | |
Tolerance | ±20% | |
Maximum DC Resistance | 35mΩ | |
Series | WE-LQS | |
Maximum Self Resonant Frequency | 363MHz | |
Inductor Construction | Wire-Wound | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +125°C | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 0.33 μH | ||
Maximum DC Current 2.57A | ||
Package/Case 2010 (5025M) | ||
Length 2mm | ||
Depth 1.6mm | ||
Height 1mm | ||
Dimensions 2 x 1.6 x 1mm | ||
Shielded Yes | ||
Tolerance ±20% | ||
Maximum DC Resistance 35mΩ | ||
Series WE-LQS | ||
Maximum Self Resonant Frequency 363MHz | ||
Inductor Construction Wire-Wound | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +125°C | ||
- COO (Country of Origin):
- CN
WE-LQS Series Magnetically Shielded Power Inductors
Wurth Elektronic LQ-S power inductors feature a robust, compact design and can manage 1.7 times more current than the unshielded equivalent. They act as integrated DC/DC converters and the larger sizes can be used in shock resisting circuits. Suitable uses for these power inductors include switching controllers that require high efficiency and portable power applications including PDAs, smartphones, digital cameras and TVs.
Applications
Magnetically shielded
Low RDC
Low RDC
Wurth Non Standard SMT Inductors (Chokes)
