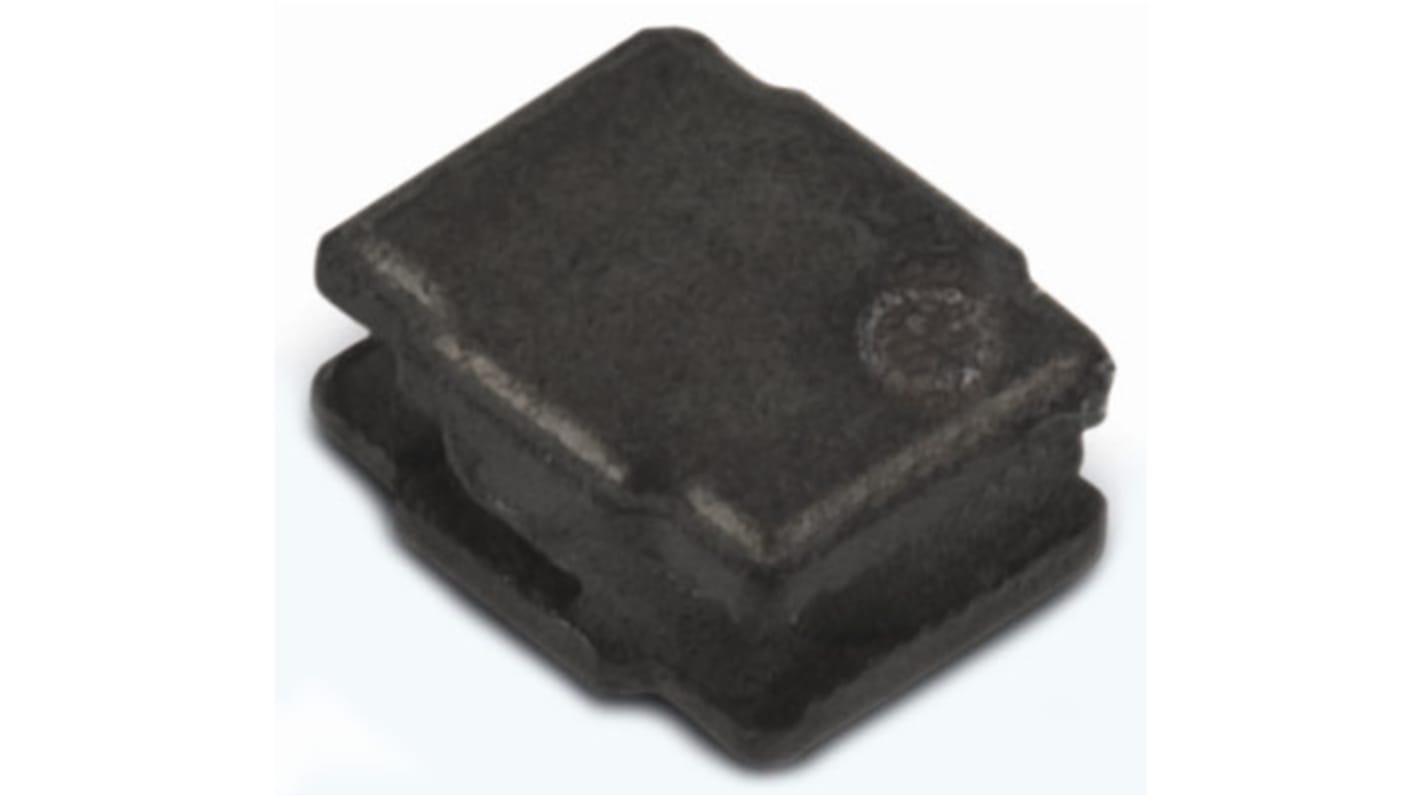

Wurth Elektronik, WE-LQSH, 2010 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 2.5 μH ±20 % 1.25 A Idc

RS Stock No.:: 135-4849
Mfr. Part No.:: 74405020022
Brand:: Wurth Elektronik

Wurth Elektronik, WE-LQSH, 2010 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 2.5 μH ±20 % 1.25 A Idc

Bulk discount available

Subtotal (1 pack of 10 units)*

£5.51

(exc. VAT)

£6.61

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

50 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
10 - 90	£0.551	£5.51
100 - 190	£0.497	£4.97
200 - 490	£0.454	£4.54
500 - 990	£0.413	£4.13
1000 +	£0.386	£3.86

*price indicative

Development Kit Box with a flash stating "Win"

Win A Würth Elektronik Lighting Development Kit

Spend as little as £1 and win a Würth Elektronik Lighting Kit, complete with exclusive follow-up technical support from the experts themselves. Promotion ends 30th November 2025.

Claim my Lighting Kit

RS Stock No.:: 135-4849
Mfr. Part No.:: 74405020022
Brand:: Wurth Elektronik

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Wurth Elektronik
	Product Type	Wirewound Surface Mount Inductor
	Inductance	2.5μH
	Maximum DC Current	1.25A
	Package/Case	2010
	Packaging	Tape & Reel
	Length	2mm
	Automotive Standard	No
	Shielding	Yes
	Minimum Operating Temperature	-40°C
	Maximum DC Resistance	170mΩ
	Pin Count	2
	Series	WE-LQSH
	Maximum Operating Temperature	125°C
	Inductance Tolerance	±20 %
	Depth	1.6mm
	Height	1mm
	Termination Style	Surface Mount
	Core Material	Ferrite
	Standards/Approvals	IEC 61249-2-21, JEDEC JS709B, RoHS, REACH
	Maximum Self Resonant Frequency	53MHz
	Moulded	Yes
	Inductor Construction	Wirewound

	Select all
	Brand Wurth Elektronik
	Product Type Wirewound Surface Mount Inductor
	Inductance 2.5μH
	Maximum DC Current 1.25A
	Package/Case 2010
	Packaging Tape & Reel
	Length 2mm
	Automotive Standard No
	Shielding Yes
	Minimum Operating Temperature -40°C
	Maximum DC Resistance 170mΩ
	Pin Count 2
	Series WE-LQSH
	Maximum Operating Temperature 125°C
	Inductance Tolerance ±20 %
	Depth 1.6mm
	Height 1mm
	Termination Style Surface Mount
	Core Material Ferrite
	Standards/Approvals IEC 61249-2-21, JEDEC JS709B, RoHS, REACH
	Maximum Self Resonant Frequency 53MHz
	Moulded Yes
	Inductor Construction Wirewound

COO (Country of Origin):: CN

WE-LQSH Series SMD Semi-Shielded High Shielded High Saturation Power Inductors

Wurth WE-LQSH SMD Semi-Shielded Power Inductors are Compact semi-shielded power inductors with an iron core for applications with high DC output current. These inductors have a soft saturation current behavior and a magnetic adhesive epoxy around the inductor core that reduces disturbing noise and magnetic stray field. The powder core can be loaded with 70% more saturation current than other semi-shielded power inductors.25V maximum Peak voltage, operating temperature -40 ºC to +125 ºC

Applications

Integrated DC-DC converters with high ripple currents

Portable devices (smartphones, digital cameras, tablets)

Switching controllers requiring high efficiency

Embedded laptops and PCs
