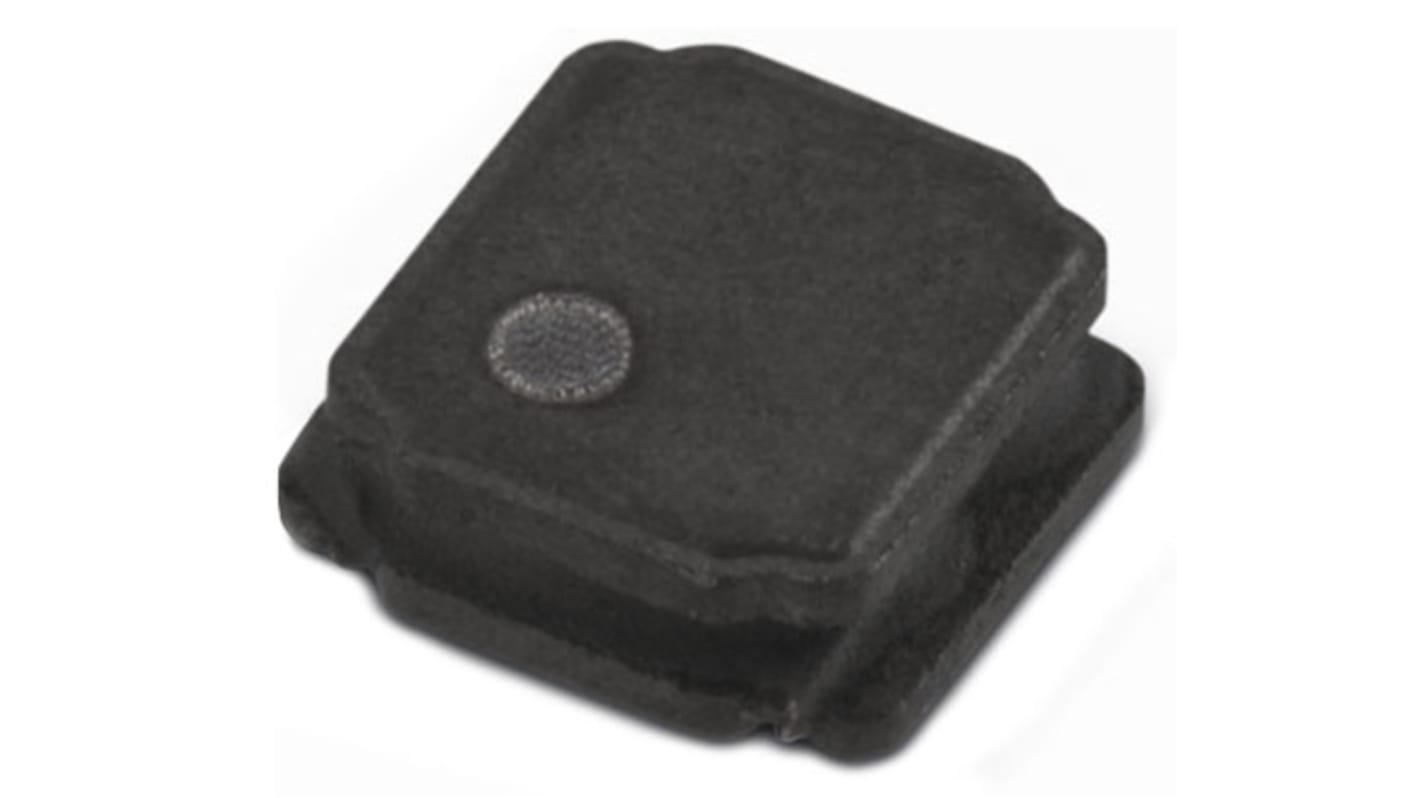

Wurth Elektronik, WE-LQSH, 3012 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 4.7 μH ±20 % 1.2 A Idc

RS Stock No.:: 135-4903
Mfr. Part No.:: 74405031047
Brand:: Wurth Elektronik

Wurth Elektronik, WE-LQSH, 3012 Shielded Wirewound Surface Mount Inductor with a Ferrite Core, 4.7 μH ±20 % 1.2 A Idc

Bulk discount available

View bulk pricing options

Subtotal (1 pack of 10 units)*

£5.61

(exc. VAT)

£6.73

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 09 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
10 - 90	£0.561	£5.61
100 - 240	£0.527	£5.27
250 - 490	£0.487	£4.87
500 - 990	£0.459	£4.59
1000 +	£0.419	£4.19

*price indicative

Development Kit Box with a flash stating "Win"

Win A Würth Elektronik Lighting Development Kit

Spend as little as £1 and win a Würth Elektronik Lighting Kit, complete with exclusive follow-up technical support from the experts themselves. Promotion ends 30th November 2025.

Claim my Lighting Kit

RS Stock No.:: 135-4903
Mfr. Part No.:: 74405031047
Brand:: Wurth Elektronik

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Wurth Elektronik
	Product Type	Wirewound Surface Mount Inductor
	Inductance	4.7μH
	Maximum DC Current	1.2A
	Package/Case	3012
	Packaging	Tape & Reel
	Length	3mm
	Automotive Standard	No
	Shielding	Yes
	Pin Count	2
	Maximum DC Resistance	235mΩ
	Minimum Operating Temperature	-40°C
	Inductance Tolerance	±20 %
	Maximum Operating Temperature	125°C
	Series	WE-LQSH
	Core Material	Ferrite
	Height	1.2mm
	Standards/Approvals	IEC 61249-2-21, JEDEC JS709B, REACH, RoHS
	Termination Style	Surface Mount
	Depth	2.7mm
	Maximum Self Resonant Frequency	30MHz
	Inductor Construction	Wirewound
	Moulded	Yes

	Select all
	Brand Wurth Elektronik
	Product Type Wirewound Surface Mount Inductor
	Inductance 4.7μH
	Maximum DC Current 1.2A
	Package/Case 3012
	Packaging Tape & Reel
	Length 3mm
	Automotive Standard No
	Shielding Yes
	Pin Count 2
	Maximum DC Resistance 235mΩ
	Minimum Operating Temperature -40°C
	Inductance Tolerance ±20 %
	Maximum Operating Temperature 125°C
	Series WE-LQSH
	Core Material Ferrite
	Height 1.2mm
	Standards/Approvals IEC 61249-2-21, JEDEC JS709B, REACH, RoHS
	Termination Style Surface Mount
	Depth 2.7mm
	Maximum Self Resonant Frequency 30MHz
	Inductor Construction Wirewound
	Moulded Yes

COO (Country of Origin):: CN

WE-LQSH Series SMD Semi-Shielded High Shielded High Saturation Power Inductors

Wurth WE-LQSH SMD Semi-Shielded Power Inductors are Compact semi-shielded power inductors with an iron core for applications with high DC output current. These inductors have a soft saturation current behavior and a magnetic adhesive epoxy around the inductor core that reduces disturbing noise and magnetic stray field. The powder core can be loaded with 70% more saturation current than other semi-shielded power inductors.25V maximum Peak voltage, operating temperature -40 ºC to +125 ºC

Applications

Integrated DC-DC converters with high ripple currents

Portable devices (smartphones, digital cameras, tablets)

Switching controllers requiring high efficiency

Embedded laptops and PCs
