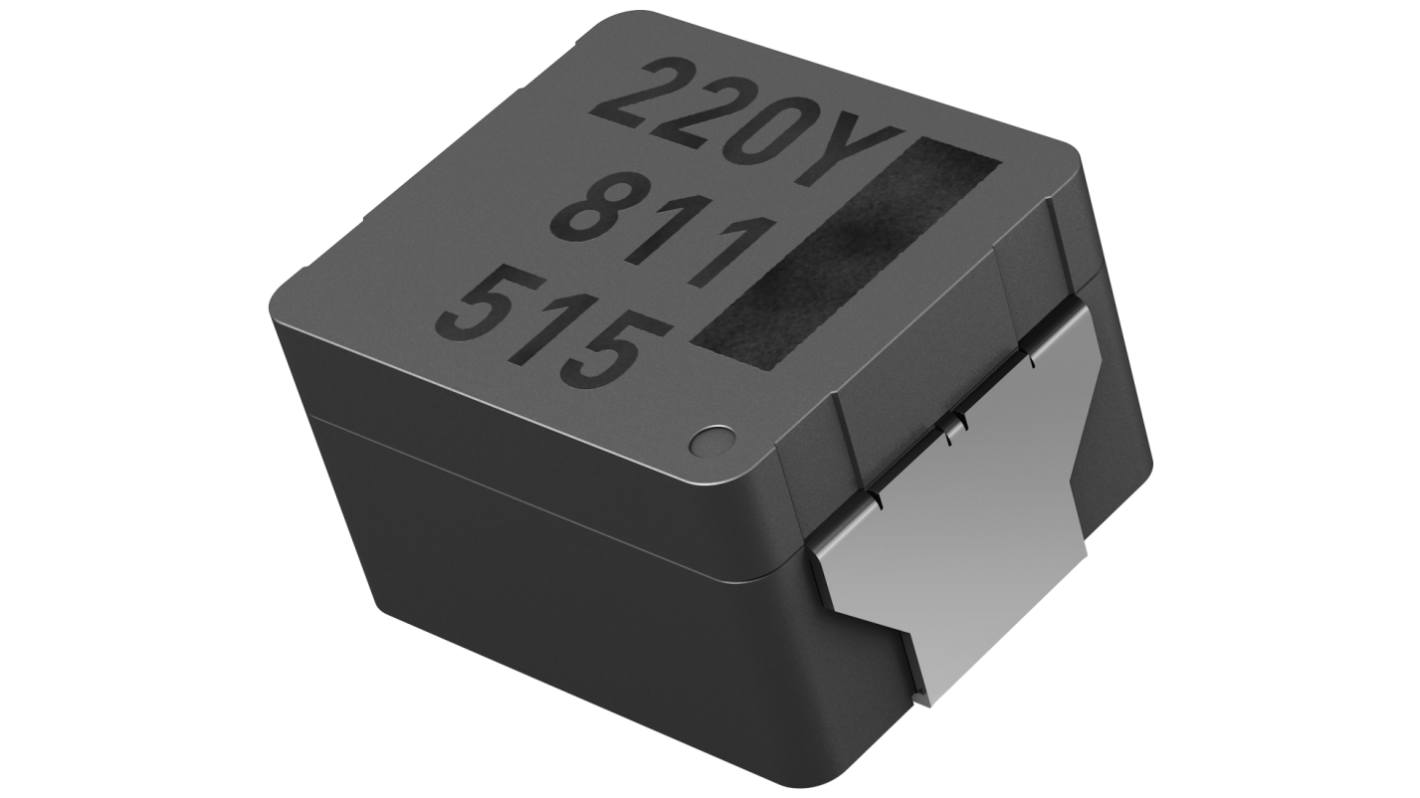

Panasonic, M Shielded Wirewound Surface Mount Inductor with a Magnetic Iron Alloy Core, 10 μH ±20 % 8.5 A Idc
- RS Stock No.:
- 548-905
- Mfr. Part No.:
- ETQP5M100YFC
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 pack of 5 units)*
£3.09
(exc. VAT)
£3.71
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.618 | £3.09 |
| 50 - 245 | £0.384 | £1.92 |
| 250 - 495 | £0.348 | £1.74 |
| 500 + | £0.344 | £1.72 |
*price indicative
- RS Stock No.:
- 548-905
- Mfr. Part No.:
- ETQP5M100YFC
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 10μH | |
| Maximum DC Current | 8.5A | |
| Length | 10mm | |
| Packaging | Taping | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Maximum DC Resistance | 26.20mΩ | |
| Minimum Operating Temperature | -40°C | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 180°C | |
| Series | M | |
| Depth | 5.4mm | |
| Height | 5.4mm | |
| Core Material | Magnetic Iron Alloy | |
| Diameter | 5.4mm | |
| Standards/Approvals | RoHS Compliant | |
| Termination Style | 10 x 10.7 x 5.4 mm | |
| Inductor Construction | Shielded | |
| Moulded | Yes | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 10μH | ||
Maximum DC Current 8.5A | ||
Length 10mm | ||
Packaging Taping | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Maximum DC Resistance 26.20mΩ | ||
Minimum Operating Temperature -40°C | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 180°C | ||
Series M | ||
Depth 5.4mm | ||
Height 5.4mm | ||
Core Material Magnetic Iron Alloy | ||
Diameter 5.4mm | ||
Standards/Approvals RoHS Compliant | ||
Termination Style 10 x 10.7 x 5.4 mm | ||
Inductor Construction Shielded | ||
Moulded Yes | ||
The Panasonic Power inductors choke coil automotive grade with high heat resistance support operation up to 150 degrees Celsius including self heating and allow short term use up to 180 degrees Celsius depending on conditions. They offer high reliability with strong vibration resistance due to a newly developed integral structure suitable for demanding automotive applications. These inductors provide high bias current with excellent inductance stability using ferrous alloy magnetic material and maintain stable performance across a wide temperature range.
Shielded construction
AEC-Q200 compliant
RoHS compliant
