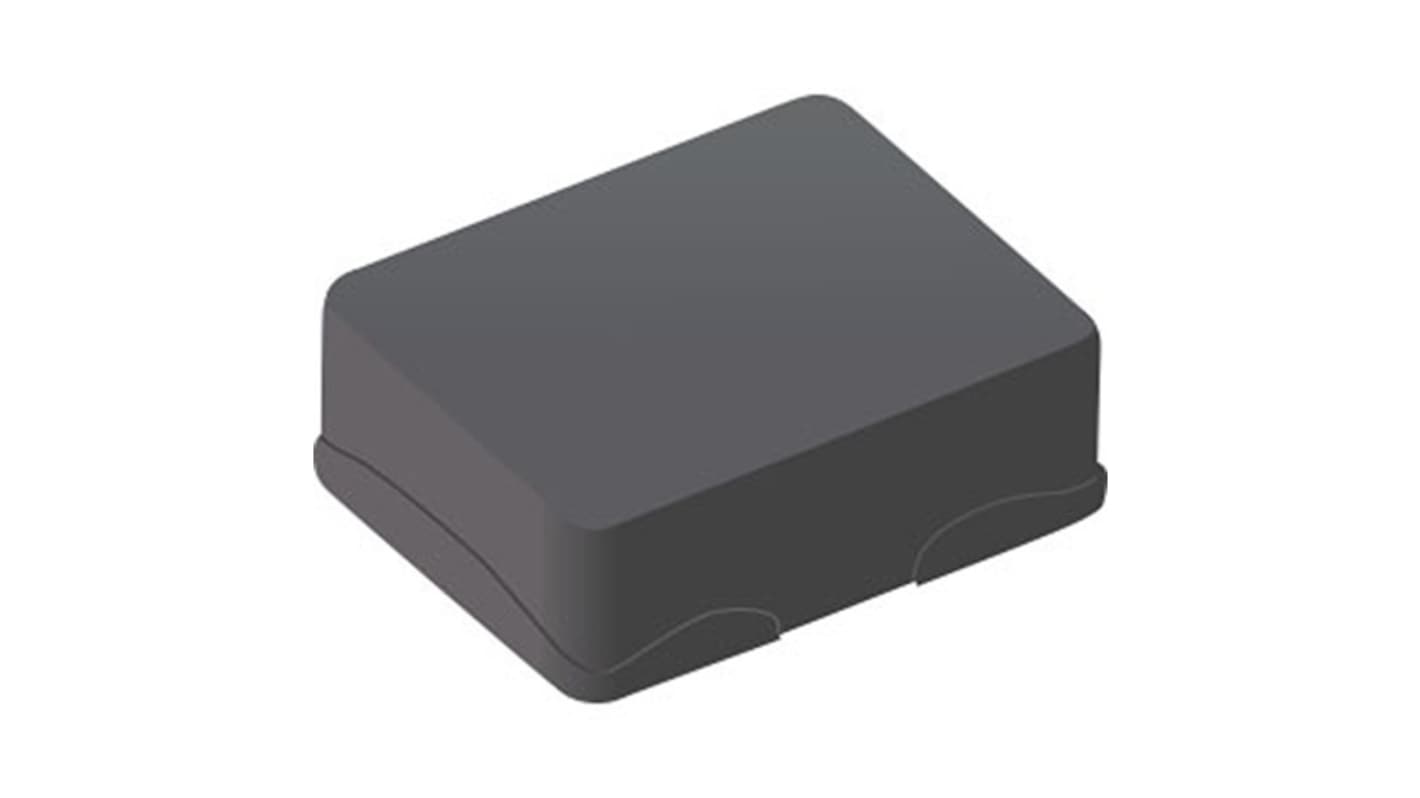

Bourns, SRP2512TMA, 2512 Shielded Power Inductor with a Metal Alloy Powder Core, 2.2 μH 20 % 3.1 A Idc Q:15
- RS Stock No.:
- 466-252
- Mfr. Part No.:
- SRP2512TMA-2R2M
- Brand:
- Bourns
Bulk discount available
Subtotal (1 bag of 2 units)*
£0.38
(exc. VAT)
£0.46
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 4,000 unit(s) shipping from 04 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 2 - 48 | £0.19 | £0.38 |
| 50 - 198 | £0.165 | £0.33 |
| 200 - 998 | £0.125 | £0.25 |
| 1000 + | £0.09 | £0.18 |
*price indicative
- RS Stock No.:
- 466-252
- Mfr. Part No.:
- SRP2512TMA-2R2M
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 2.2μH | |
| Product Type | Power Inductor | |
| Maximum DC Current | 3.1A | |
| Package/Case | 2512 | |
| Length | 2.5mm | |
| Packaging | 2000 pieces per 7 in Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum DC Resistance | 79.2mΩ | |
| Maximum Operating Temperature | 150°C | |
| Inductance Tolerance | 20 % | |
| Series | SRP2512TMA | |
| Diameter | 2mm | |
| Core Material | Metal Alloy Powder | |
| Height | 2mm | |
| Depth | 2mm | |
| Standards/Approvals | AEC-Q200, Halogen Free, RoHS | |
| Maximum Self Resonant Frequency | 15MHz | |
| Minimum Quality Factor | 15 | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 2.2μH | ||
Product Type Power Inductor | ||
Maximum DC Current 3.1A | ||
Package/Case 2512 | ||
Length 2.5mm | ||
Packaging 2000 pieces per 7 in Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum DC Resistance 79.2mΩ | ||
Maximum Operating Temperature 150°C | ||
Inductance Tolerance 20 % | ||
Series SRP2512TMA | ||
Diameter 2mm | ||
Core Material Metal Alloy Powder | ||
Height 2mm | ||
Depth 2mm | ||
Standards/Approvals AEC-Q200, Halogen Free, RoHS | ||
Maximum Self Resonant Frequency 15MHz | ||
Minimum Quality Factor 15 | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- CN
The Bourns Shielded power inductors in a compact size feature shielded construction for low radiation, ensuring minimal interference. The metal alloy powder core provides high saturation current handling, while the flat wire design ensures low DCR for efficient power transfer. These inductors are ideal for high performance power applications that require efficient energy management and noise reduction.
RoHS compliant
Halogen free
