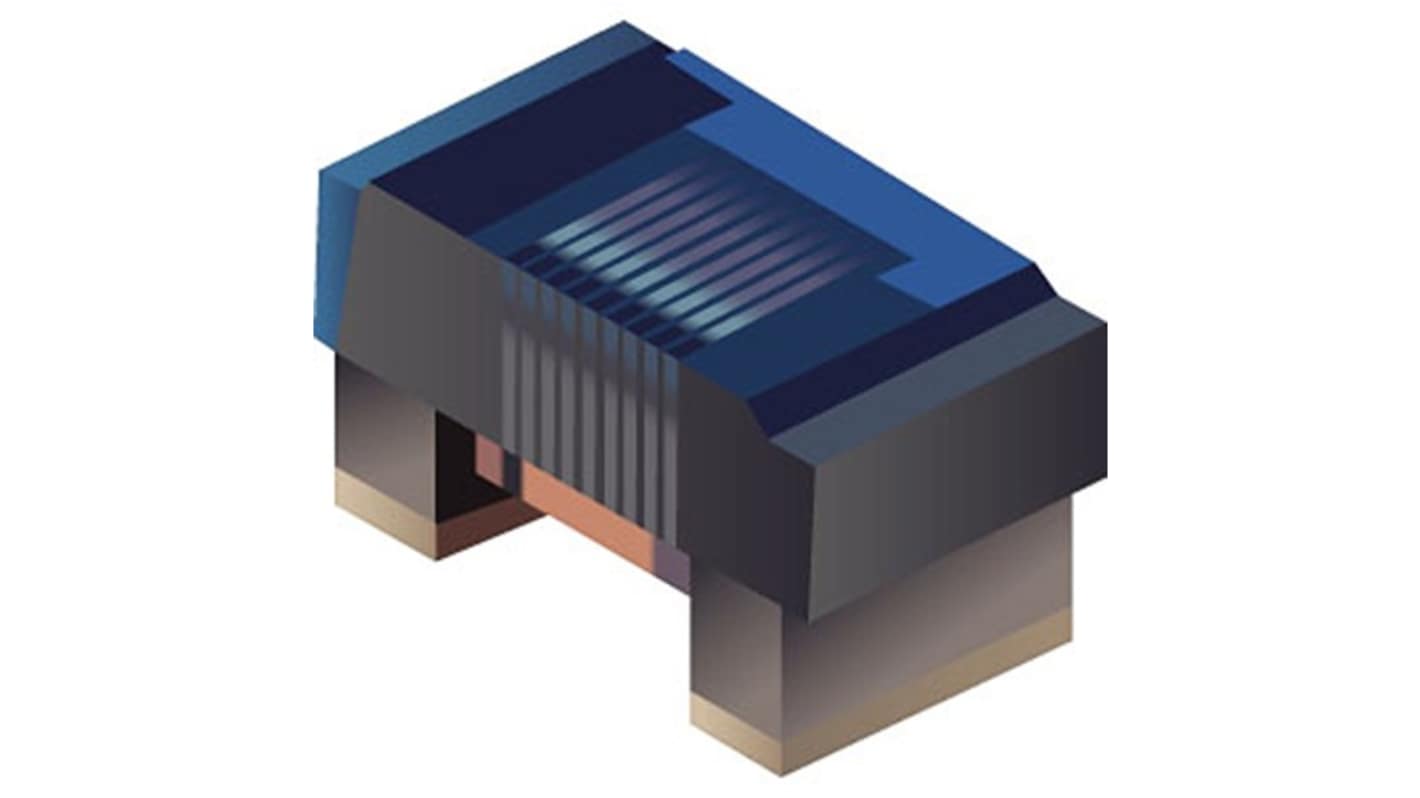

Bourns, CWF1610, 0603 Unshielded Surface Mount Inductor with a Ferrite Core, 10 μH Ferrite Core 10 % 280 mA Idc Q:14
- RS Stock No.:
- 466-200
- Mfr. Part No.:
- CWF1610-100K
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 2 units)*
£0.30
(exc. VAT)
£0.36
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
- Plus 4,000 unit(s) shipping from 10 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 2 - 48 | £0.15 | £0.30 |
| 50 - 198 | £0.125 | £0.25 |
| 200 - 998 | £0.10 | £0.20 |
| 1000 + | £0.07 | £0.14 |
*price indicative
- RS Stock No.:
- 466-200
- Mfr. Part No.:
- CWF1610-100K
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Surface Mount Inductor | |
| Inductance | 10μH | |
| Maximum DC Current | 280mA | |
| Package/Case | 0603 | |
| Packaging | 4000 pcs | |
| Length | 1.6mm | |
| Automotive Standard | No | |
| Shielding | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 3.61Ω | |
| Inductance Tolerance | 10 % | |
| Maximum Operating Temperature | 125°C | |
| Series | CWF1610 | |
| Core Material | Ferrite | |
| Diameter | 1mm | |
| Depth | 1mm | |
| Height | 1mm | |
| Standards/Approvals | RoHS, Halogen Free | |
| Maximum Self Resonant Frequency | 390MHz | |
| Inductor Construction | Ferrite Core | |
| Minimum Quality Factor | 14 | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Surface Mount Inductor | ||
Inductance 10μH | ||
Maximum DC Current 280mA | ||
Package/Case 0603 | ||
Packaging 4000 pcs | ||
Length 1.6mm | ||
Automotive Standard No | ||
Shielding No | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 3.61Ω | ||
Inductance Tolerance 10 % | ||
Maximum Operating Temperature 125°C | ||
Series CWF1610 | ||
Core Material Ferrite | ||
Diameter 1mm | ||
Depth 1mm | ||
Height 1mm | ||
Standards/Approvals RoHS, Halogen Free | ||
Maximum Self Resonant Frequency 390MHz | ||
Inductor Construction Ferrite Core | ||
Minimum Quality Factor 14 | ||
- COO (Country of Origin):
- TW
The Bourns Chip inductors come in a miniature size, offering high Q value for improved performance. They also feature a high self resonant frequency, making them ideal for applications that demand efficient signal handling and minimal loss.
RoHS compliant
Low DCR
