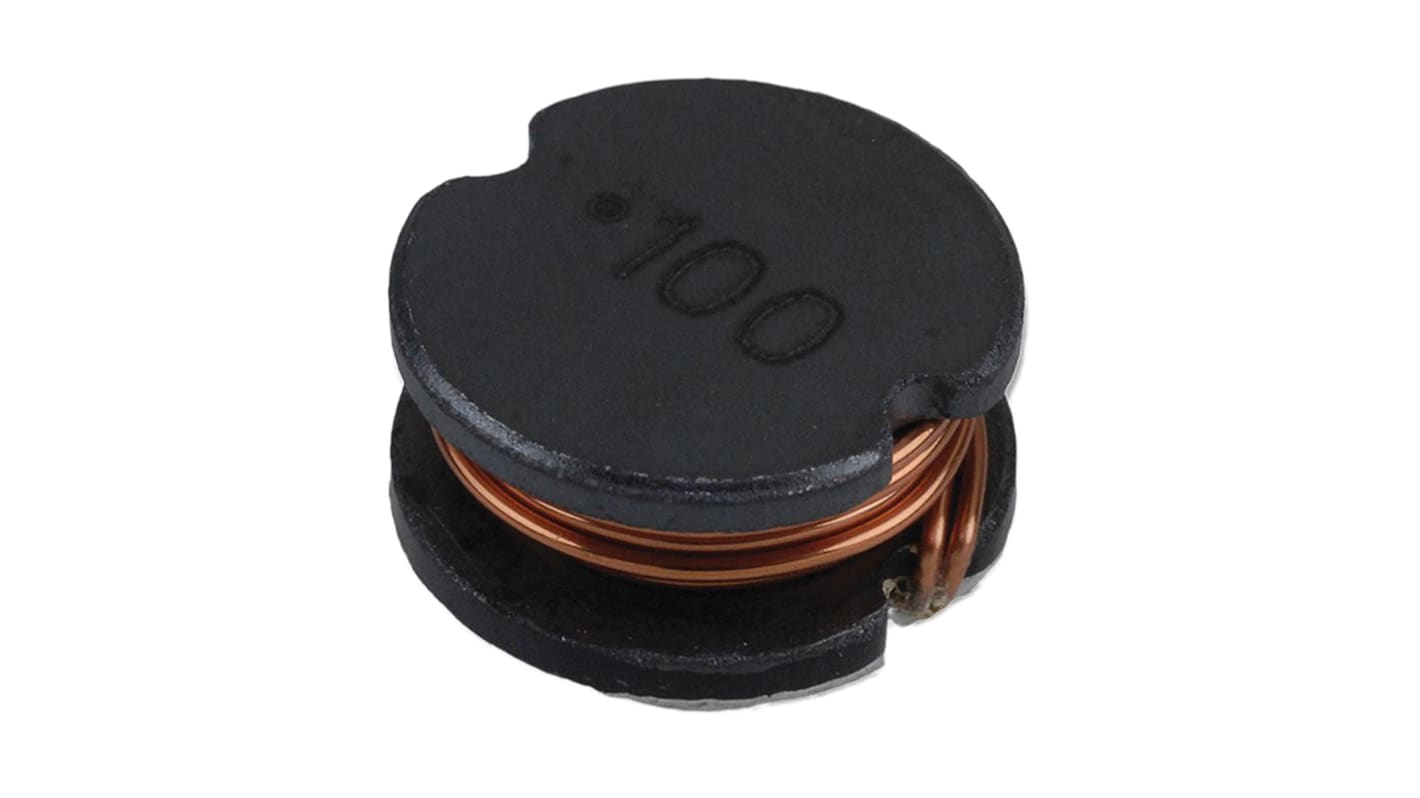

Bourns, SDR0603, E12 Wire-wound SMD Inductor with a Ferrite DR Core, 22 μH ± 20% Wire-Wound 960mA Idc Q:20
- RS Stock No.:
- 874-9700
- Mfr. Part No.:
- SDR0603-220ML
- Brand:
- Bourns
Subtotal (1 bag of 10 units)*
£2.66
(exc. VAT)
£3.19
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Bag* |
---|---|---|
10 + | £0.266 | £2.66 |
*price indicative
- RS Stock No.:
- 874-9700
- Mfr. Part No.:
- SDR0603-220ML
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bourns | |
Inductance | 22 μH | |
Maximum DC Current | 960mA | |
Package/Case | E12 | |
Height | 3.9mm | |
Diameter | 5.8mm | |
Dimensions | 5.8 (Dia.) x 3.9mm | |
Tolerance | ± 20% | |
Maximum DC Resistance | 280mΩ | |
Series | SDR0603 | |
Core Material | Ferrite DR | |
Maximum Self Resonant Frequency | 30MHz | |
Minimum Quality Factor | 20 | |
Maximum Operating Temperature | +125°C | |
Inductor Construction | Wire-Wound | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Bourns | ||
Inductance 22 μH | ||
Maximum DC Current 960mA | ||
Package/Case E12 | ||
Height 3.9mm | ||
Diameter 5.8mm | ||
Dimensions 5.8 (Dia.) x 3.9mm | ||
Tolerance ± 20% | ||
Maximum DC Resistance 280mΩ | ||
Series SDR0603 | ||
Core Material Ferrite DR | ||
Maximum Self Resonant Frequency 30MHz | ||
Minimum Quality Factor 20 | ||
Maximum Operating Temperature +125°C | ||
Inductor Construction Wire-Wound | ||
Minimum Operating Temperature -40°C | ||
SDR0603 Series Wire Wound Chokes
Available in E12 series
Small design of only 5.8 mm maximum Diameter
Low 3.9 mm profile
RoHS compliant
Applications in Input/output of DC/DC Converters and Power supplies for:
Portable communication equipment, Camcorders, LCD TVs and Car radios
Small design of only 5.8 mm maximum Diameter
Low 3.9 mm profile
RoHS compliant
Applications in Input/output of DC/DC Converters and Power supplies for:
Portable communication equipment, Camcorders, LCD TVs and Car radios
Available in E12 series
Small design of only 5.8 mm maximum diameter
Low 3.9 mm profile
Applications
Input/output of DC/DC converters
Power supplies for:
Portable communications equipment
Camcorders
LCD TVs
Car radios
Small design of only 5.8 mm maximum diameter
Low 3.9 mm profile
Applications
Input/output of DC/DC converters
Power supplies for:
Portable communications equipment
Camcorders
LCD TVs
Car radios
