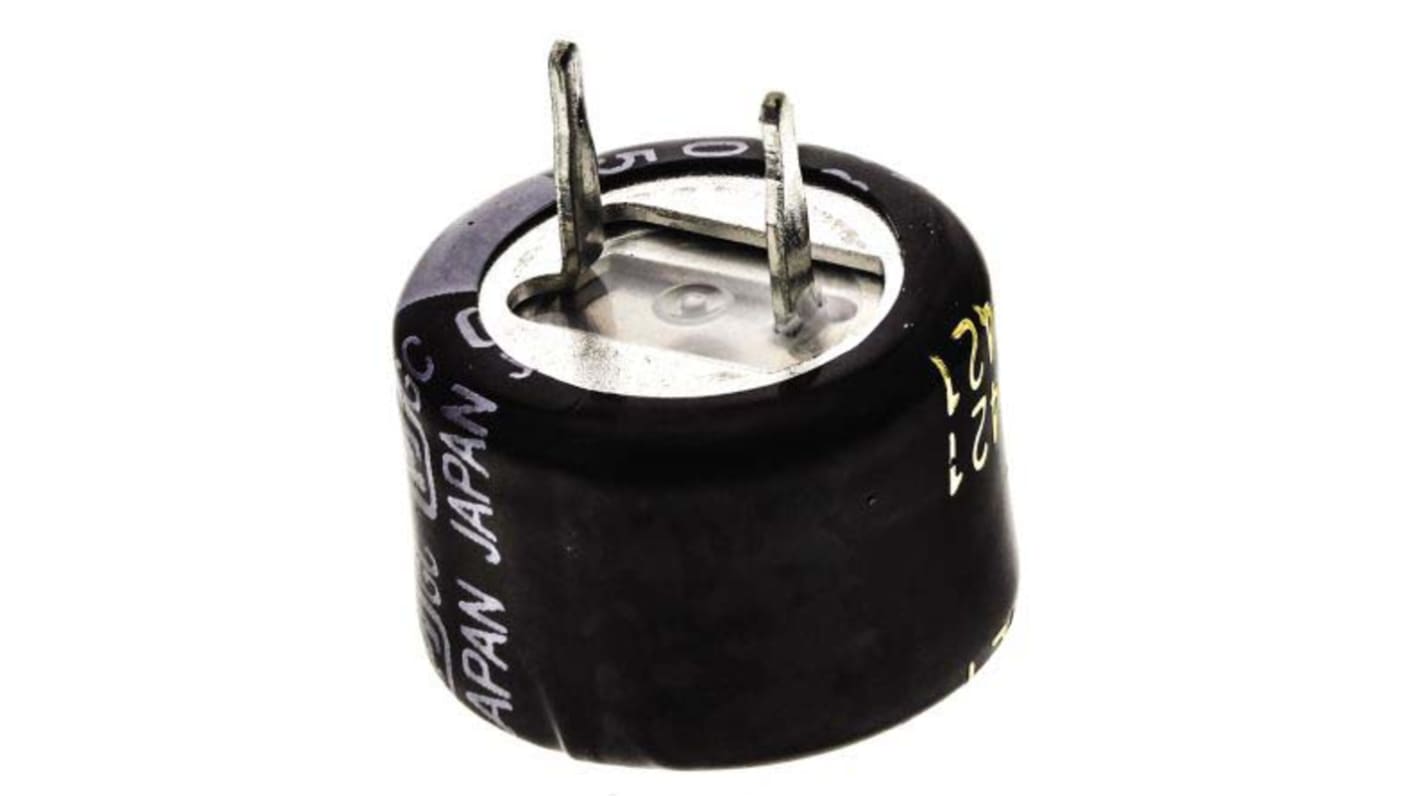

Panasonic 0.1F Supercapacitor -20 → +80% Tolerance, F 5.5V dc, Through Hole
- RS Stock No.:
- 919-0650
- Mfr. Part No.:
- EECF5R5H104
- Brand:
- Panasonic
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 919-0650
- Mfr. Part No.:
- EECF5R5H104
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 0.1F | |
| Voltage | 5.5V dc | |
| Mounting Type | Through Hole | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Diameter | 13.5mm | |
| Height | 9.5mm | |
| Dimensions | 13.5 (Dia.) x 9.5mm | |
| Lead Pitch | 5mm | |
| Equivalent Series Resistance | 100Ω | |
| Lifetime | 1000h | |
| Series | F | |
| Tolerance | -20 → +80% | |
| Capacitor Family | Electric Double Layer | |
| Terminal Type | Through Hole | |
| Product Diameter | 13.5mm | |
| Dielectric Material Family | Electrical Double Layer | |
| Lead Diameter | 0.8mm | |
| Depth | 9.5mm | |
| Lead Spacing | 5 mm | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 0.1F | ||
Voltage 5.5V dc | ||
Mounting Type Through Hole | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Diameter 13.5mm | ||
Height 9.5mm | ||
Dimensions 13.5 (Dia.) x 9.5mm | ||
Lead Pitch 5mm | ||
Equivalent Series Resistance 100Ω | ||
Lifetime 1000h | ||
Series F | ||
Tolerance -20 → +80% | ||
Capacitor Family Electric Double Layer | ||
Terminal Type Through Hole | ||
Product Diameter 13.5mm | ||
Dielectric Material Family Electrical Double Layer | ||
Lead Diameter 0.8mm | ||
Depth 9.5mm | ||
Lead Spacing 5 mm | ||
Goldcap F Series Memory Backup
Panasonic F series electric double layer capacitors (also known as gold capacitors) can be compared to secondary batteries and offer the highest level of volumetric efficiency. No charging circuit is required and there is no limit to the number of charge and discharge cycles. F series supercapacitors utilise the release and absorption reaction of ions and do not rely on a chemical reaction to create current.
1000 h endurance at +85 °C
Stacked coin type
Flat type
Stacked coin type
Flat type
Applications
Recommended applications include industrial equipment, electronic meters and the backup of data/RTC of base stations.
