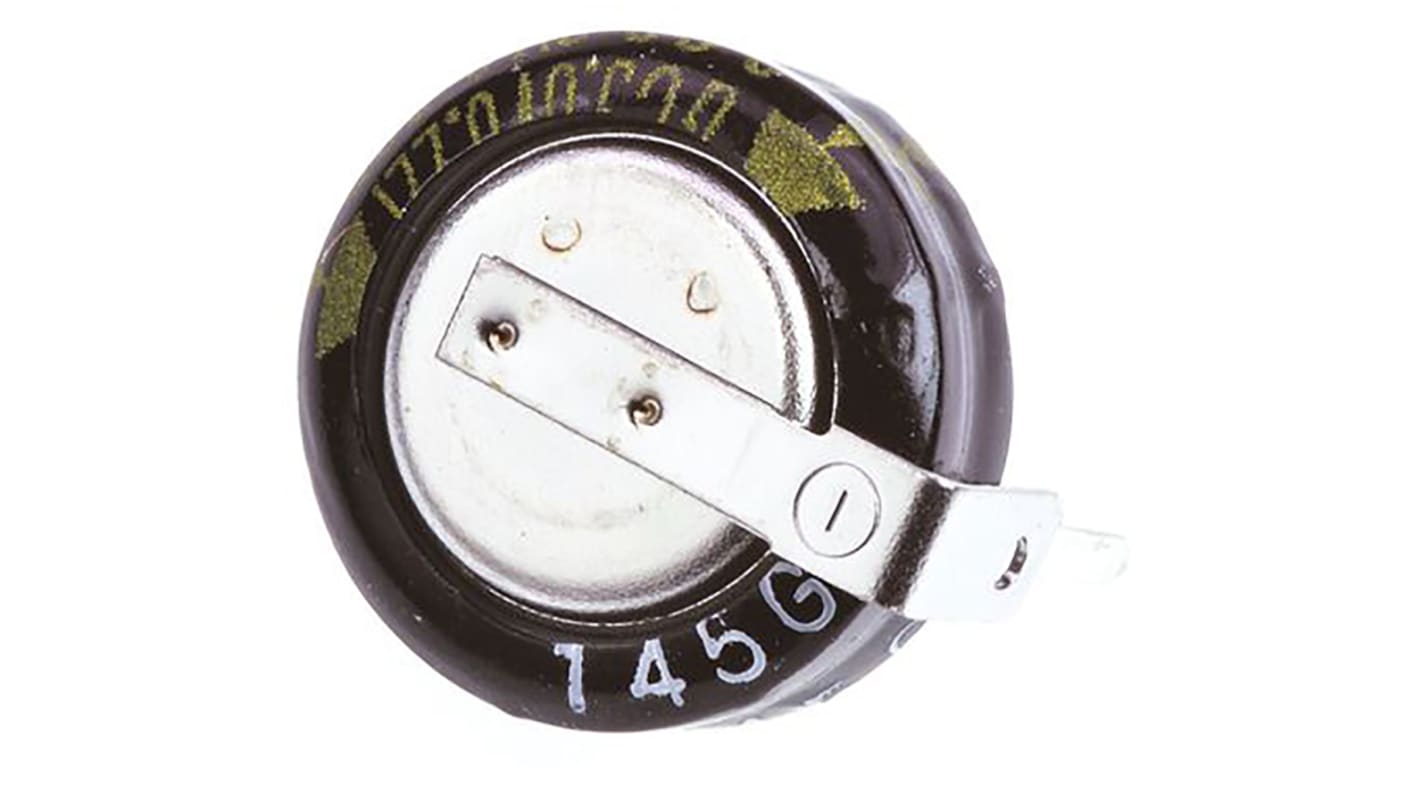

Panasonic 1.5F Supercapacitor -20 → +80% Tolerance, RG 3.6V dc, Through Hole
- RS Stock No.:
- 869-0743
- Mfr. Part No.:
- EECRG0V155HN
- Brand:
- Panasonic
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 5)
£1.16
(exc. VAT)
£1.39
(inc. VAT)
- RS Stock No.:
- 869-0743
- Mfr. Part No.:
- EECRG0V155HN
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 1.5F | |
| Voltage | 3.6V dc | |
| Mounting Type | Through Hole | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Diameter | 19mm | |
| Height | 6.5mm | |
| Dimensions | 19 (Dia.) x 6.5mm | |
| Lead Pitch | 20mm | |
| Leakage Current | 1 mA | |
| Lifetime | 2000h | |
| Series | RG | |
| Tolerance | -20 → +80% | |
| Dielectric Material Family | Gold | |
| Terminal Type | Radial | |
| Tolerance Minus | -20% | |
| Tolerance Plus | +80% | |
| Lead Diameter | 1 x 0.2mm | |
| Capacitor Family | Electric Double Layer | |
| Product Diameter | 19mm | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 1.5F | ||
Voltage 3.6V dc | ||
Mounting Type Through Hole | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Diameter 19mm | ||
Height 6.5mm | ||
Dimensions 19 (Dia.) x 6.5mm | ||
Lead Pitch 20mm | ||
Leakage Current 1 mA | ||
Lifetime 2000h | ||
Series RG | ||
Tolerance -20 → +80% | ||
Dielectric Material Family Gold | ||
Terminal Type Radial | ||
Tolerance Minus -20% | ||
Tolerance Plus +80% | ||
Lead Diameter 1 x 0.2mm | ||
Capacitor Family Electric Double Layer | ||
Product Diameter 19mm | ||
RF/RG Series Electric Double Layer Capacitors from Panasonic
Stacked Coin Type Series RG/RF Capacitors.
Features & Benefits:
Electric double layer Gold capacitors
Long high temperature endurance
Low internal resistance
Long high temperature endurance
Low internal resistance
