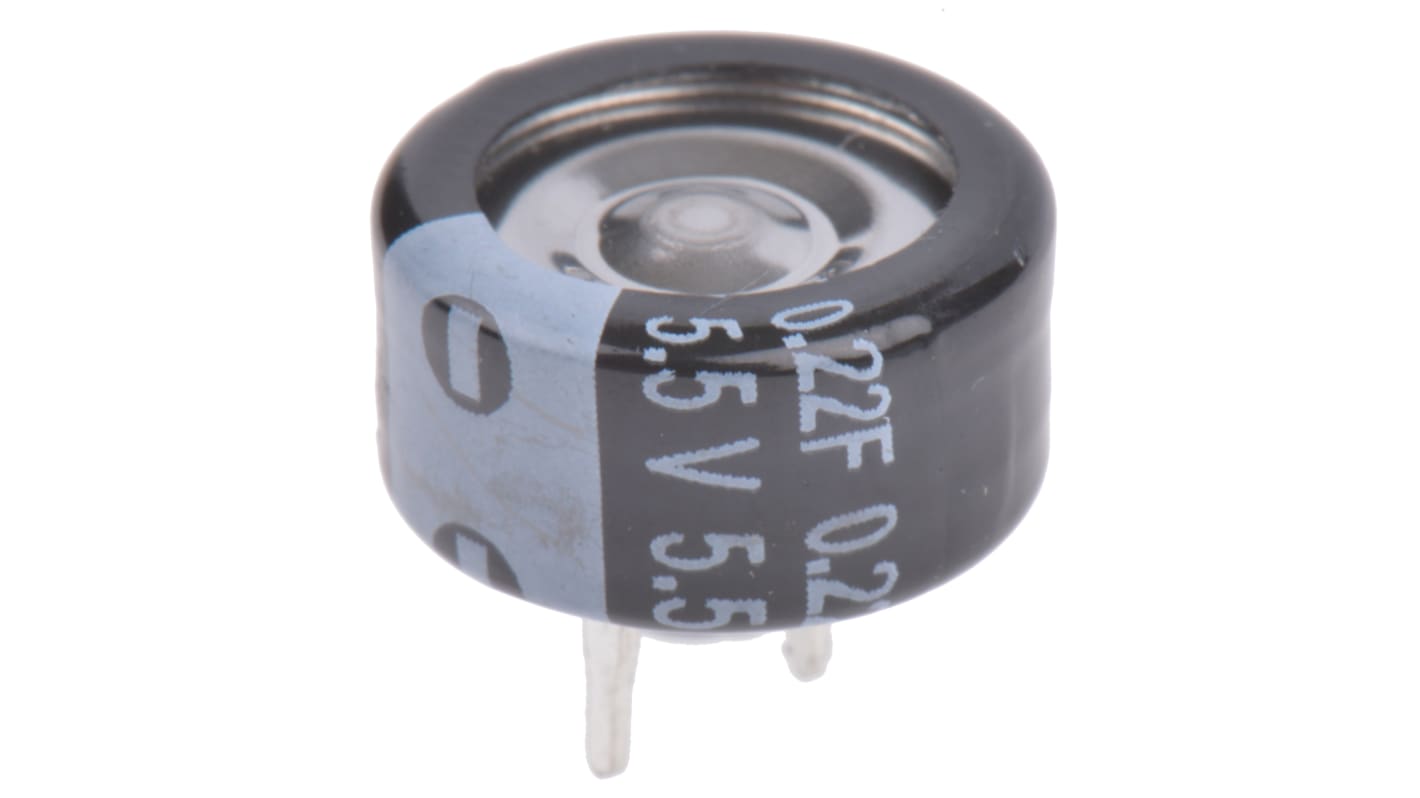

Panasonic 0.22F Supercapacitor -20 → +80% Tolerance, NF 5.5V dc, Through Hole
- RS Stock No.:
- 867-5463
- Mfr. Part No.:
- EECF5R5U224
- Brand:
- Panasonic
Discontinued
- RS Stock No.:
- 867-5463
- Mfr. Part No.:
- EECF5R5U224
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 0.22F | |
| Voltage | 5.5V dc | |
| Mounting Type | Through Hole | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
| Diameter | 13.5mm | |
| Height | 7.5mm | |
| Dimensions | 13.5 x 7.5mm | |
| Lead Pitch | 5mm | |
| Leakage Current | ≤300 μA | |
| Equivalent Series Resistance | ≤75Ω | |
| Lifetime | 1000h | |
| Series | NF | |
| Tolerance | -20 → +80% | |
| Capacitor Family | Electric Double Layer | |
| Package/Case | A | |
| Lead Spacing | 5 mm | |
| Terminal Type | Flat | |
| Depth | 7.5mm | |
| Lead Diameter | 1.2 x 0.5mm | |
| Product Diameter | 13.5mm | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 0.22F | ||
Voltage 5.5V dc | ||
Mounting Type Through Hole | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Diameter 13.5mm | ||
Height 7.5mm | ||
Dimensions 13.5 x 7.5mm | ||
Lead Pitch 5mm | ||
Leakage Current ≤300 μA | ||
Equivalent Series Resistance ≤75Ω | ||
Lifetime 1000h | ||
Series NF | ||
Tolerance -20 → +80% | ||
Capacitor Family Electric Double Layer | ||
Package/Case A | ||
Lead Spacing 5 mm | ||
Terminal Type Flat | ||
Depth 7.5mm | ||
Lead Diameter 1.2 x 0.5mm | ||
Product Diameter 13.5mm | ||
NF/SG/SD Series
Wet type electric double layer capacitors (Gold capacitor) (activated charcoal electrodes with organic electrolyte)
Ideal for IC memory back up (μA range load)
No charge/discharge circuitry required unlike batteries and cannot be over or under charged
Charge/discharge cycles greater than 100000 times
Volumetric efficiency (SD is 30% smaller than SG series, SG is 50% smaller then NF series)
Longer life than a secondary battery
Recommended applications include memory back-up for video and audio equipment, printers, cameras, data terminals, telephones, intelligent remote controls and rice cookers
Ideal for IC memory back up (μA range load)
No charge/discharge circuitry required unlike batteries and cannot be over or under charged
Charge/discharge cycles greater than 100000 times
Volumetric efficiency (SD is 30% smaller than SG series, SG is 50% smaller then NF series)
Longer life than a secondary battery
Recommended applications include memory back-up for video and audio equipment, printers, cameras, data terminals, telephones, intelligent remote controls and rice cookers
