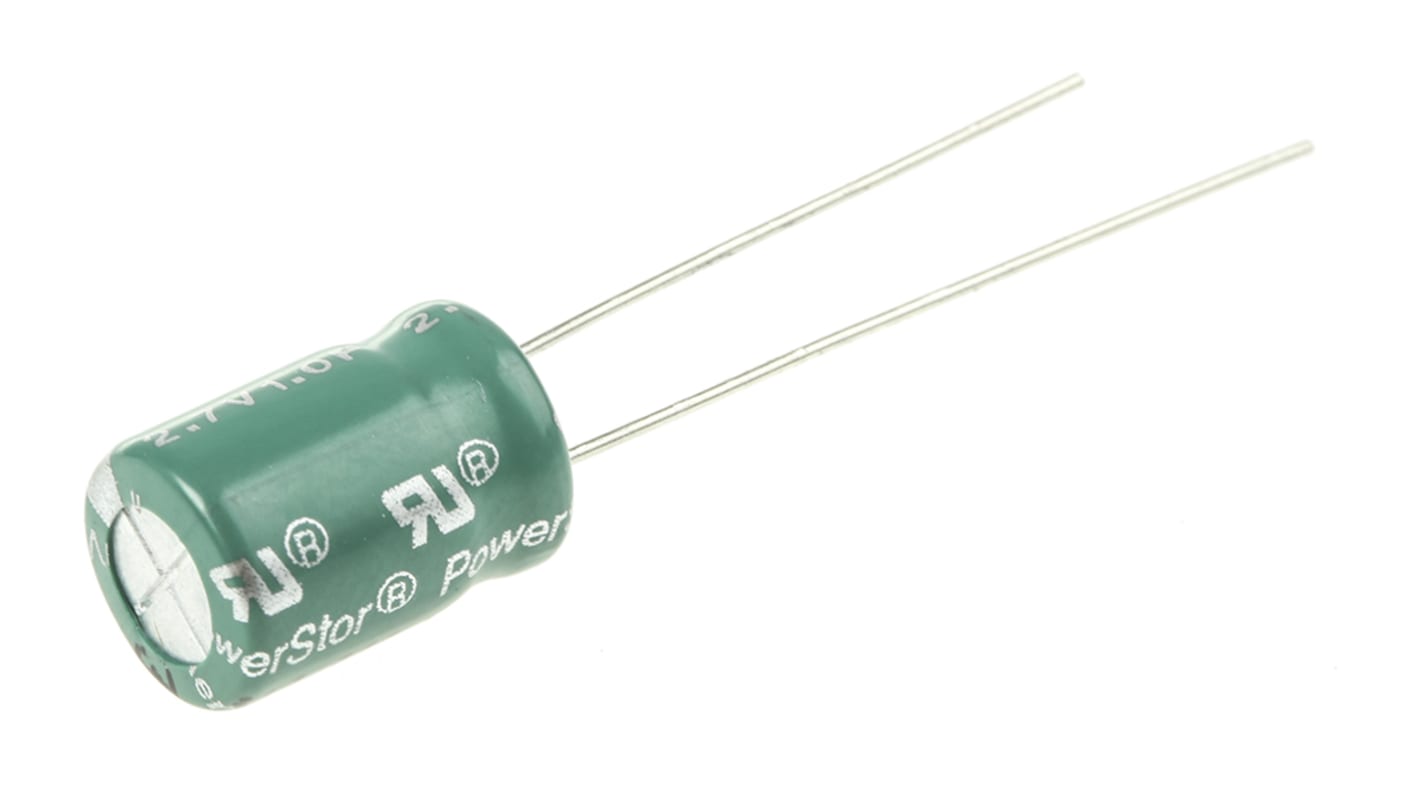

Eaton 1 F Supercapacitor -10 to 30 % Tolerance, Supercap HV 2.7V dc, Through Hole
- RS Stock No.:
- 763-7750
- Distrelec Article No.:
- 301-96-468
- Mfr. Part No.:
- HV0810-2R7105-R
- Brand:
- Eaton
Bulk discount available
Subtotal (1 unit)*
£1.03
(exc. VAT)
£1.24
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 501 unit(s) shipping from 18 May 2026
- Plus 111 unit(s) shipping from 18 May 2026
- Plus 81 unit(s) shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £1.03 |
| 25 - 74 | £0.70 |
| 75 - 149 | £0.65 |
| 150 - 299 | £0.55 |
| 300 + | £0.49 |
*price indicative
- RS Stock No.:
- 763-7750
- Distrelec Article No.:
- 301-96-468
- Mfr. Part No.:
- HV0810-2R7105-R
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Supercapacitor | |
| Capacitance | 1F | |
| Voltage | 2.7V dc | |
| Mount Type | Through Hole | |
| Packaging | Bag | |
| Lead Diameter | 0.5mm | |
| Diameter | 8.5mm | |
| Polarity | Positive | |
| Automotive Standard | No | |
| Terminal Type | Solder | |
| Lead Pitch | 3.5mm | |
| Leakage Current | 10μA | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 2 | |
| Equivalent Series Resistance ESR | 200mΩ | |
| Lifetime | 1000 h | |
| Maximum Operating Temperature | 65°C | |
| Standards/Approvals | UL, RoHS | |
| Series | Supercap HV | |
| Height | 13.5mm | |
| Depth | 13.5mm | |
| Tolerance | -10 to 30 % | |
| Capacitor Family | Electric Double Layer | |
| Package/Case | Cylindrical | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Supercapacitor | ||
Capacitance 1F | ||
Voltage 2.7V dc | ||
Mount Type Through Hole | ||
Packaging Bag | ||
Lead Diameter 0.5mm | ||
Diameter 8.5mm | ||
Polarity Positive | ||
Automotive Standard No | ||
Terminal Type Solder | ||
Lead Pitch 3.5mm | ||
Leakage Current 10μA | ||
Minimum Operating Temperature -40°C | ||
Pin Count 2 | ||
Equivalent Series Resistance ESR 200mΩ | ||
Lifetime 1000 h | ||
Maximum Operating Temperature 65°C | ||
Standards/Approvals UL, RoHS | ||
Series Supercap HV | ||
Height 13.5mm | ||
Depth 13.5mm | ||
Tolerance -10 to 30 % | ||
Capacitor Family Electric Double Layer | ||
Package/Case Cylindrical | ||
HV series (PowerStor) Super Capacitors
Unique, ultra-high capacitance devices utilizing electrochemical double layer capacitor (EDLC) construction combined with new, high performance materials
Ultra low ESR for high power density
Large capacitance for high energy density
Aluminium (EDLC) Super Capacitors
Note
Eaton formerly known as Bussmann
