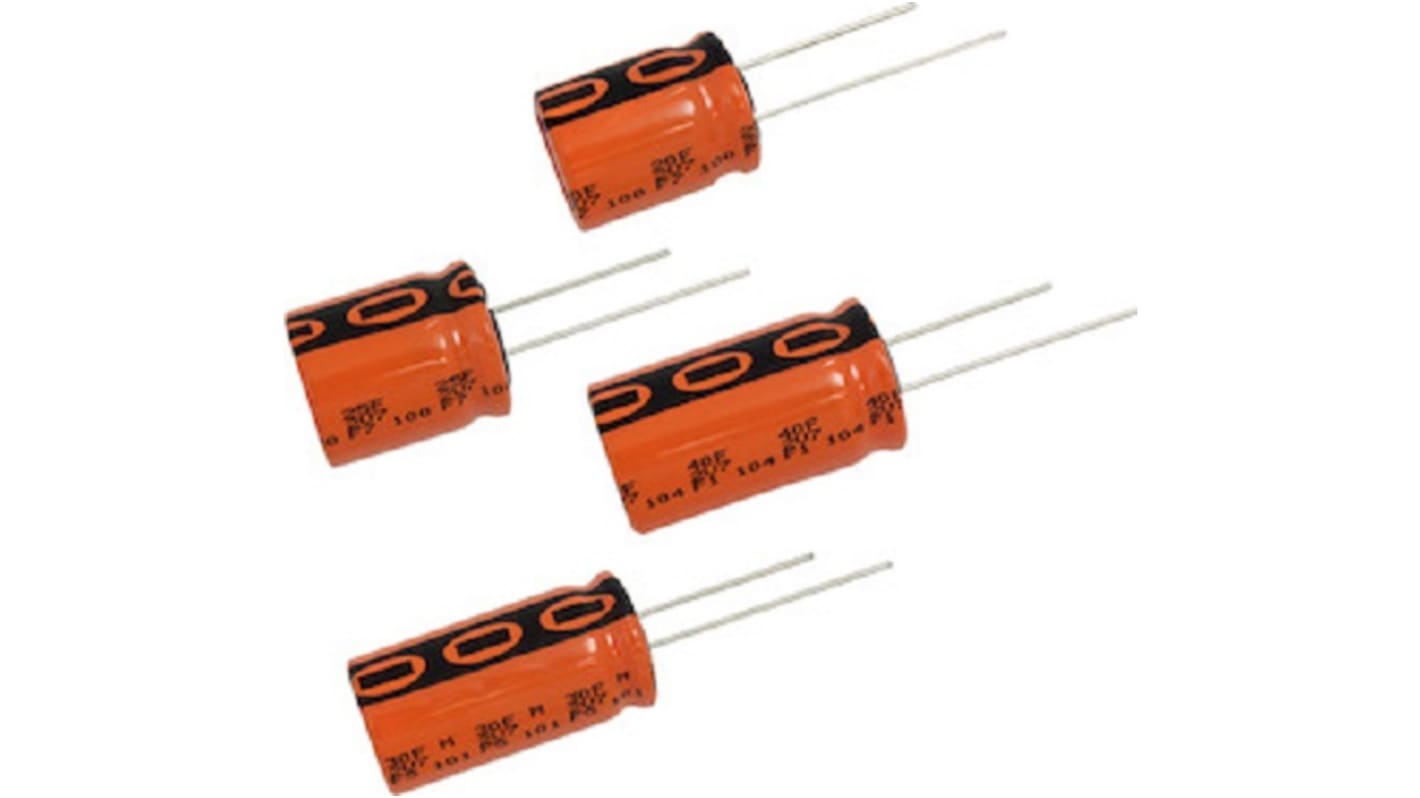

Vishay 5 F Supercapacitor -20 to 50 % Tolerance, 225 EDLC-R 2.7 V dc, Through Hole
- RS Stock No.:
- 260-8653
- Mfr. Part No.:
- MAL222551011E3
- Brand:
- Vishay
Subtotal (1 box of 500 units)*
£423.50
(exc. VAT)
£508.00
(inc. VAT)
Add 500 units to get free delivery
Being discontinued
- Final 2,000 unit(s), ready to ship
Units | Per unit | Per Box* |
|---|---|---|
| 500 + | £0.847 | £423.50 |
*price indicative
- RS Stock No.:
- 260-8653
- Mfr. Part No.:
- MAL222551011E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Supercapacitor | |
| Capacitance | 5F | |
| Voltage | 2.7 V dc | |
| Mount Type | Through Hole | |
| Packaging | Tray | |
| Lead Diameter | 0.6mm | |
| Automotive Standard | AEC-Q200 | |
| Diameter | 10 mm | |
| Polarity | Polar | |
| Terminal Type | Radial | |
| Lead Pitch | 5mm | |
| Leakage Current | 25μA | |
| Minimum Operating Temperature | -45°C | |
| Equivalent Series Resistance ESR | 65mΩ | |
| Lifetime | 2000 h | |
| Maximum Operating Temperature | 85°C | |
| Series | 225 EDLC-R | |
| Standards/Approvals | IEC 60062, RoHS, UL 810A | |
| Height | 22mm | |
| Tolerance | -20 to 50 % | |
| Capacitor Family | Pseudocapacitor | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Supercapacitor | ||
Capacitance 5F | ||
Voltage 2.7 V dc | ||
Mount Type Through Hole | ||
Packaging Tray | ||
Lead Diameter 0.6mm | ||
Automotive Standard AEC-Q200 | ||
Diameter 10 mm | ||
Polarity Polar | ||
Terminal Type Radial | ||
Lead Pitch 5mm | ||
Leakage Current 25μA | ||
Minimum Operating Temperature -45°C | ||
Equivalent Series Resistance ESR 65mΩ | ||
Lifetime 2000 h | ||
Maximum Operating Temperature 85°C | ||
Series 225 EDLC-R | ||
Standards/Approvals IEC 60062, RoHS, UL 810A | ||
Height 22mm | ||
Tolerance -20 to 50 % | ||
Capacitor Family Pseudocapacitor | ||
- COO (Country of Origin):
- AT
The Vishay electrical double layer energy storage capacitor is polarized energy storage capacitor with high capacity and energy density. It is used in power backup, burst power support and storage device for energy harvesting.
Available in through-hole (radial) version
Useful life 2000 h at 85 °C
Rapid charge and discharge
Maintenance-free, no service necessary
AEC-Q200 qualified
