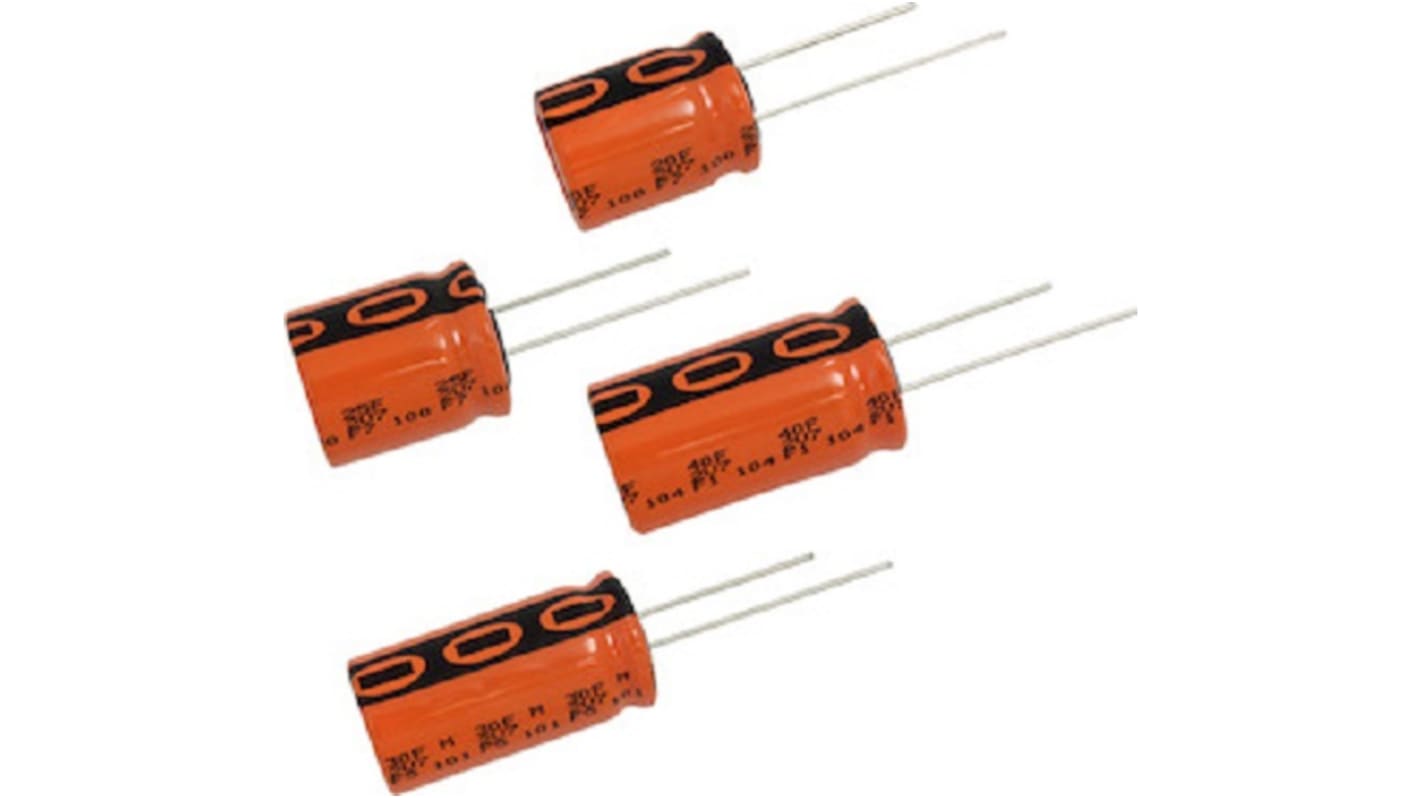

Vishay 10 F Supercapacitor -20 to 50 % Tolerance, 225 EDLC-R 2.7 V dc, Through Hole
- RS Stock No.:
- 260-8655
- Mfr. Part No.:
- MAL222551013E3
- Brand:
- Vishay
Subtotal (1 box of 500 units)*
£636.50
(exc. VAT)
£764.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Box* |
|---|---|---|
| 500 + | £1.273 | £636.50 |
*price indicative
- RS Stock No.:
- 260-8655
- Mfr. Part No.:
- MAL222551013E3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Supercapacitor | |
| Capacitance | 10F | |
| Voltage | 2.7 V dc | |
| Mount Type | Through Hole | |
| Packaging | Tray | |
| Automotive Standard | AEC-Q200 | |
| Lead Diameter | 0.8mm | |
| Diameter | 10 mm | |
| Polarity | Polar | |
| Terminal Type | Radial | |
| Lead Pitch | 5mm | |
| Leakage Current | 45μA | |
| Minimum Operating Temperature | -45°C | |
| Equivalent Series Resistance ESR | 38mΩ | |
| Lifetime | 2000 h | |
| Maximum Operating Temperature | 85°C | |
| Series | 225 EDLC-R | |
| Height | 32mm | |
| Standards/Approvals | IEC 60062, UL 810A, RoHS | |
| Tolerance | -20 to 50 % | |
| Capacitor Family | Pseudocapacitor | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Supercapacitor | ||
Capacitance 10F | ||
Voltage 2.7 V dc | ||
Mount Type Through Hole | ||
Packaging Tray | ||
Automotive Standard AEC-Q200 | ||
Lead Diameter 0.8mm | ||
Diameter 10 mm | ||
Polarity Polar | ||
Terminal Type Radial | ||
Lead Pitch 5mm | ||
Leakage Current 45μA | ||
Minimum Operating Temperature -45°C | ||
Equivalent Series Resistance ESR 38mΩ | ||
Lifetime 2000 h | ||
Maximum Operating Temperature 85°C | ||
Series 225 EDLC-R | ||
Height 32mm | ||
Standards/Approvals IEC 60062, UL 810A, RoHS | ||
Tolerance -20 to 50 % | ||
Capacitor Family Pseudocapacitor | ||
- COO (Country of Origin):
- AT
The Vishay electrical double layer energy storage capacitor is polarized energy storage capacitor with high capacity and energy density. It is used in power backup, burst power support and storage device for energy harvesting.
Available in through-hole (radial) version
Useful life 2000 h at 85 °C
Rapid charge and discharge
Maintenance-free, no service necessary
AEC-Q200 qualified
