Eaton 1F Supercapacitor -20 → +80% Tolerance 5.5V dc, Through Hole

Subtotal (1 box of 500 units)*

£2,290.00

(exc. VAT)

£2,750.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
500 +£4.58£2,290.00

*price indicative

RS Stock No.:
180-4254
Mfr. Part No.:
KR-5R5H105-R
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Capacitance

1F

Voltage

5.5V dc

Mounting Type

Through Hole

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+70°C

Diameter

19mm

Height

6.7mm

Dimensions

19 (Dia.) x 6.7mm

Lead Pitch

20mm

Equivalent Series Resistance

30Ω

Lifetime

1000h

Tolerance

-20 → +80%

Polarised

Polar

Terminal Type

Radial

Capacitor Family

Supercapacitor

Lead Diameter

0.2mm

Product Diameter

19mm

Lead Spacing

20 mm

Dielectric Material Family

Electrical Double Layer

COO (Country of Origin):
CN

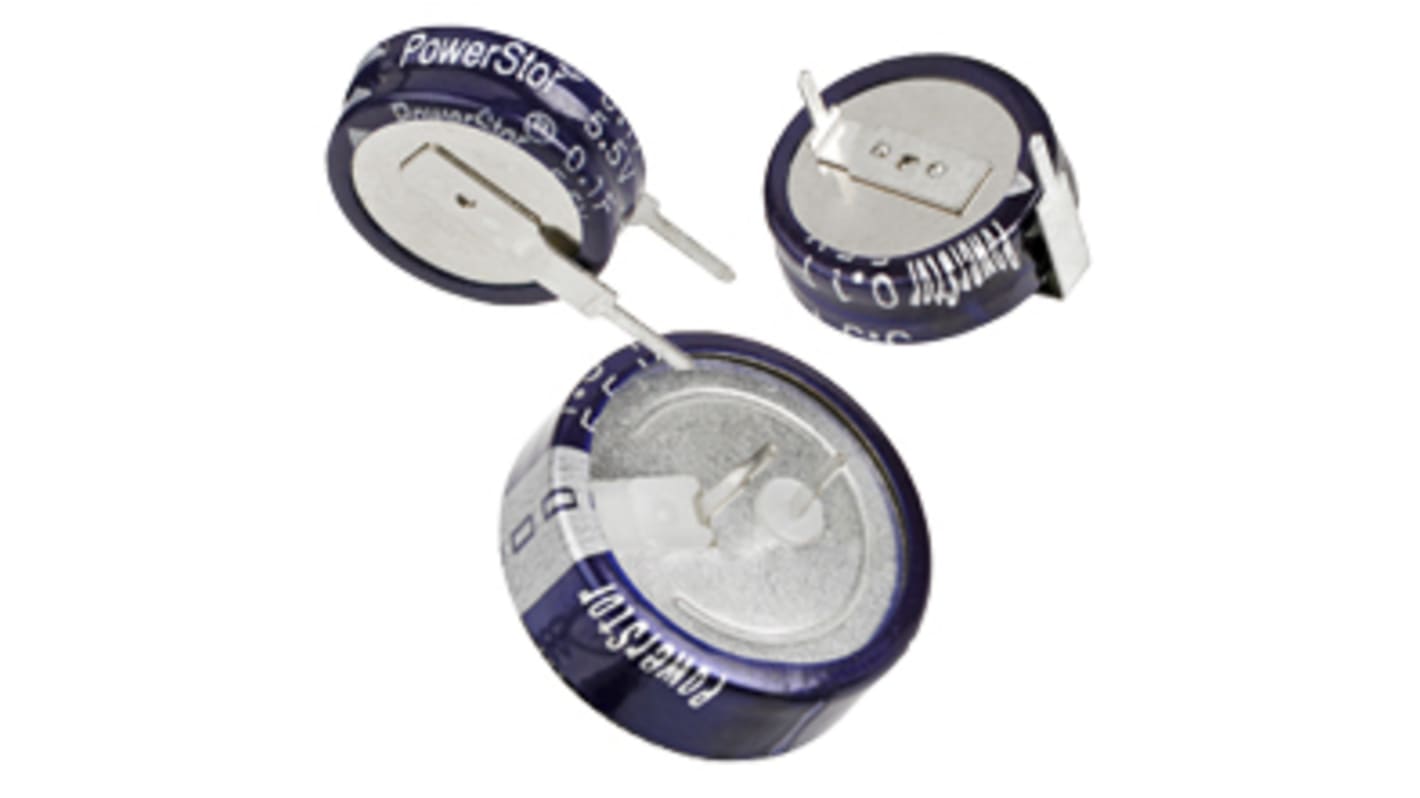

Eaton Supercapacitor, -25°C to +70°C Operating Temperature Range, 6.3V DC Surge Voltage - KR Series - KR-5R5H105-R


For reliable energy storage with a small footprint, opt for this compact supercapacitor from Eaton. With an ultra-high capacitance rating of 1F, it's a practical choice for holding and releasing energy in applications running at up to 5.5V DC. This makes it handy for use as a backup for batteries in commercial and industrial setups where avoiding system downtime is critical. The unit has a broad tolerance range between -20% and +80%, so you won't experience performance issues, even if actual capacitance deviates considerably from the stated value.

Features & Benefits


• Through-hole mounting style gives you a robust way to secure the device to your PCB
• Low leakage current, thanks to effective insulation, makes it an energy-efficient choice
• Offers a long life of between 1000 and 2000hrs, so you can trust it's a durable choice
• EDLC construction works without a glitch in a broad operating temperature range from -25°C to +70°C

Can this component handle electrical surges?


Yes. A surge voltage rating of 6.3V DC lets you know it's a safe bet for handling small electrical spikes.

Note

Eaton formerly known as Bussmann
