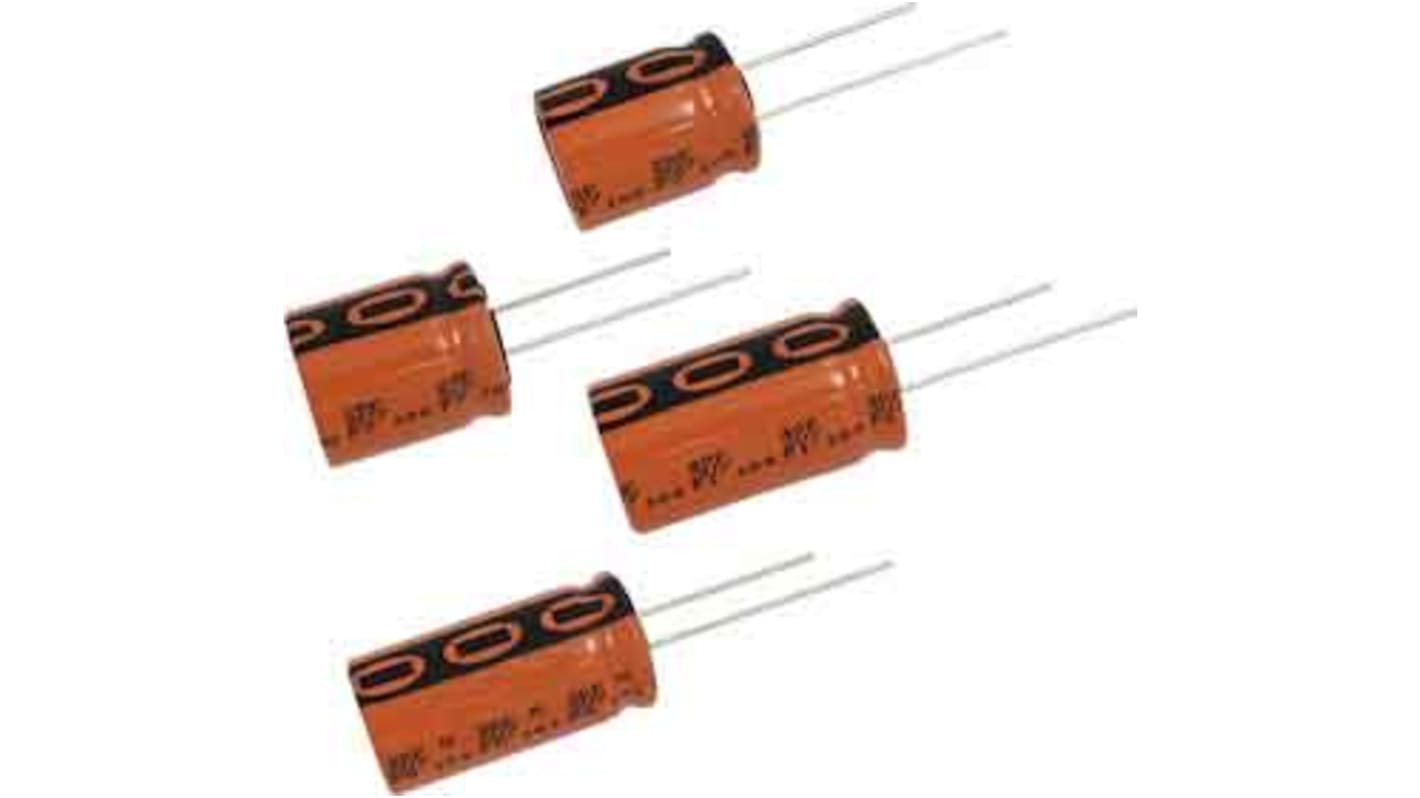

Polarized energy storage capacitor with high capacity and energy density Rated voltage: 3.0 V Available in through-hole (radial) version APPLICATIONS: Power backup Burst power support Storage device for energy harvesting
Attribute
Value
Capacitance
40F
Voltage
3V dc
Mounting Type
Through Hole
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+85°C
Diameter
18.5mm
Height
33.5mm
Dimensions
18.5 (Dia.) x 33.5mm
Lead Pitch
7.5mm
Leakage Current
200 μA
Lifetime
2000h
Series
230 EDLC-HV
Tolerance
-20 → +50%
Lead Spacing
7.5 mm
Product Diameter
18.5mm
Polarised
Polar
Capacitor Family
Electric Double Layer
Dielectric Material Family
Electrical Double Layer
Terminal Type
Through Hole
Lead Diameter
0.8mm
