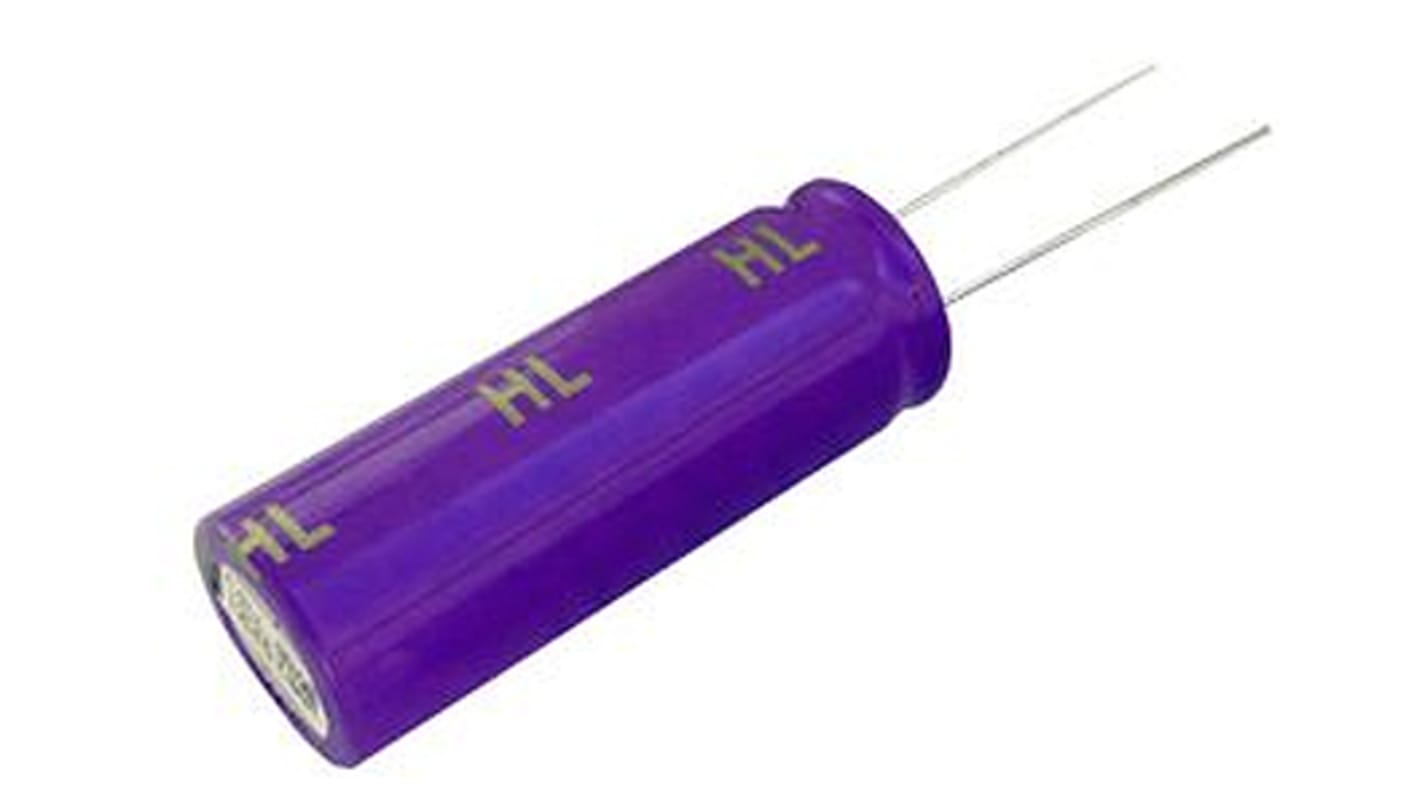

Panasonic 100F Supercapacitor ±20% Tolerance, HL 2.7V dc, Through Hole
- RS Stock No.:
- 133-2794
- Mfr. Part No.:
- EECHL0E107
- Brand:
- Panasonic
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 133-2794
- Mfr. Part No.:
- EECHL0E107
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Panasonic | |
Capacitance | 100F | |
Voltage | 2.7V dc | |
Mounting Type | Through Hole | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +65°C | |
Diameter | 18mm | |
Height | 6mm | |
Dimensions | 18 (Dia.) x 70mm | |
Lead Pitch | 7.5mm | |
Leakage Current | ≤15 (Discharge Current) A | |
Equivalent Series Resistance | ≤0.01 (Internal Resistance)Ω | |
Lifetime | 2000h | |
Series | HL | |
Tolerance | ±20% | |
Polarised | Polar | |
Lead Spacing | 7.5 mm | |
Product Diameter | 18mm | |
Capacitor Family | Electric Double Layer | |
Dielectric Material Family | Electrical Double Layer | |
Terminal Type | Radial | |
Lead Diameter | 0.8mm | |
Depth | 70mm | |
Select all | ||
---|---|---|
Brand Panasonic | ||
Capacitance 100F | ||
Voltage 2.7V dc | ||
Mounting Type Through Hole | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +65°C | ||
Diameter 18mm | ||
Height 6mm | ||
Dimensions 18 (Dia.) x 70mm | ||
Lead Pitch 7.5mm | ||
Leakage Current ≤15 (Discharge Current) A | ||
Equivalent Series Resistance ≤0.01 (Internal Resistance)Ω | ||
Lifetime 2000h | ||
Series HL | ||
Tolerance ±20% | ||
Polarised Polar | ||
Lead Spacing 7.5 mm | ||
Product Diameter 18mm | ||
Capacitor Family Electric Double Layer | ||
Dielectric Material Family Electrical Double Layer | ||
Terminal Type Radial | ||
Lead Diameter 0.8mm | ||
Depth 70mm | ||
- COO (Country of Origin):
- JP
Panasonic HL Series Electric Double Layer (EDLC) Capacitors
Panasonic HL series electric double layer gold capacitors with a radial lead type, these supercapacitors have a low resistance and low temperature guaranteed at 65°C 2000 h. 2.7 V dc.
Applications
Driver assists of motor, actuator
Back up power supply of server, storage
Auxiliary power supply of solar power
Back up power supply of server, storage
Auxiliary power supply of solar power
Radial
