RS PRO Handheld Stroboscope, 12500rpm Max, ±0.01 % Accuracy, 9μs Sample Time
- RS Stock No.:
- 845-9712
- Brand:
- RS PRO
Available to back order for despatch when stock is available
Added
Price Each
£859.34
(exc. VAT)
£1,031.21
(inc. VAT)
| Units | Per unit |
| 1 + | £859.34 |
Calibration Options:
- RS Stock No.:
- 845-9712
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
RS Pro Rolux Xenon Stroboscope
This professional handheld stroboscope benefits from its highly compact design and uses xenon technology to create extremely bright flashes making it an excellent choice for use in poorly accessible or particularly sensitive areas. The Rolux is ideal for proximity rotational speed measurement of plants and machinery, as well as for observing moving parts in operation and can also be used to observe fan blade deformation, the position of a toothed belt under load or separation of substances in a centrifuge.
Feartures and Benefits
• Xenon technology
• 1200 Lux
• Flash duration less than 9μs
• More than 2 hours continous use time with battery
• Lithium-Ion battery technology
• Continous use possible with power supply unit
• Measuring range from 30 to 12,500 flashes per minute (fpm)
• Longevity of Xenon lamp more than 200.000.000 flashes (@ 6.000 fpm)
• Dynamic rotary encoder
• LCD display

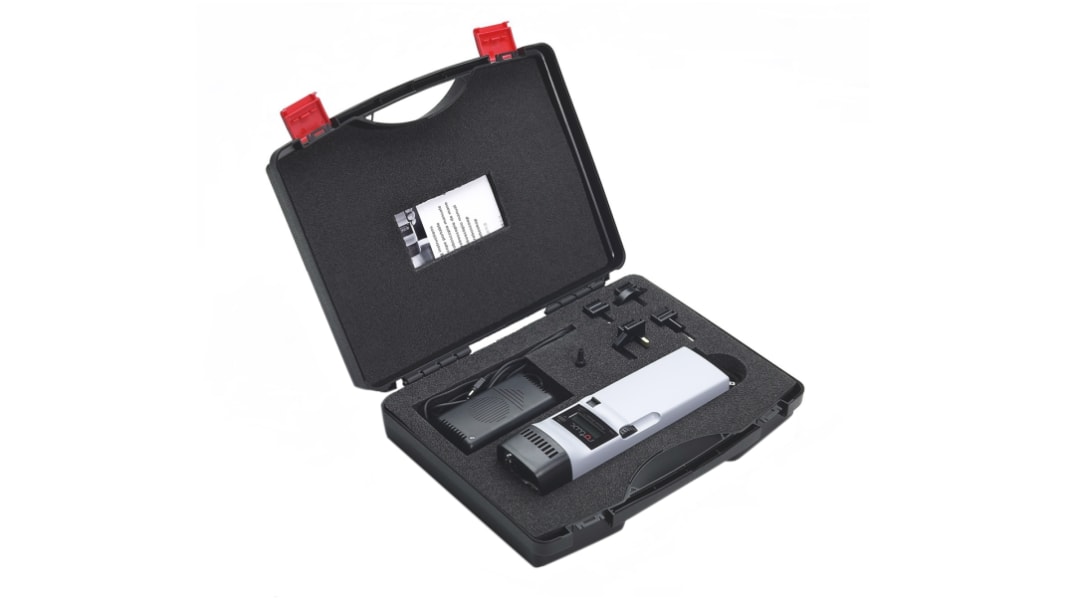

• Supplied in portable case with trigger plug, 4 country plugs, powersupply unit
• Operating manual in 10 languages
• Device-specific test certificate
• 1200 Lux
• Flash duration less than 9μs
• More than 2 hours continous use time with battery
• Lithium-Ion battery technology
• Continous use possible with power supply unit
• Measuring range from 30 to 12,500 flashes per minute (fpm)
• Longevity of Xenon lamp more than 200.000.000 flashes (@ 6.000 fpm)
• Dynamic rotary encoder
• LCD display
• Supplied in portable case with trigger plug, 4 country plugs, powersupply unit
• Operating manual in 10 languages
• Device-specific test certificate
Specifications
Attribute | Value |
|---|---|
| Best Accuracy | ±0.01 % |
| Sample Time | 9µs |
| Flash Colour | Xenon White |
| Dimensions | 240 x 65 x 40mm |
| Weight | 415g |
| Height | 40mm |
| Length | 240mm |
| Maximum Operating Temperature | +40°C |
| Maximum Speed | 12500rpm |
| Minimum Flash Rate | 30fp/min |
| Minimum Operating Temperature | 0°C |
| Minimum Speed | 30rpm |
| Width | 65mm |
