RS PRO DT-2239-2 (230V) Stroboscope, 10000rpm Max, ±0.05 % Accuracy, 1s Sample Time
- RS Stock No.:
- 123-8774
- Brand:
- RS PRO
23 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£202.00
(exc. VAT)
£242.40
(inc. VAT)
| Units | Per unit |
| 1 + | £202.00 |
Calibration Options:
- RS Stock No.:
- 123-8774
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW
Product Details

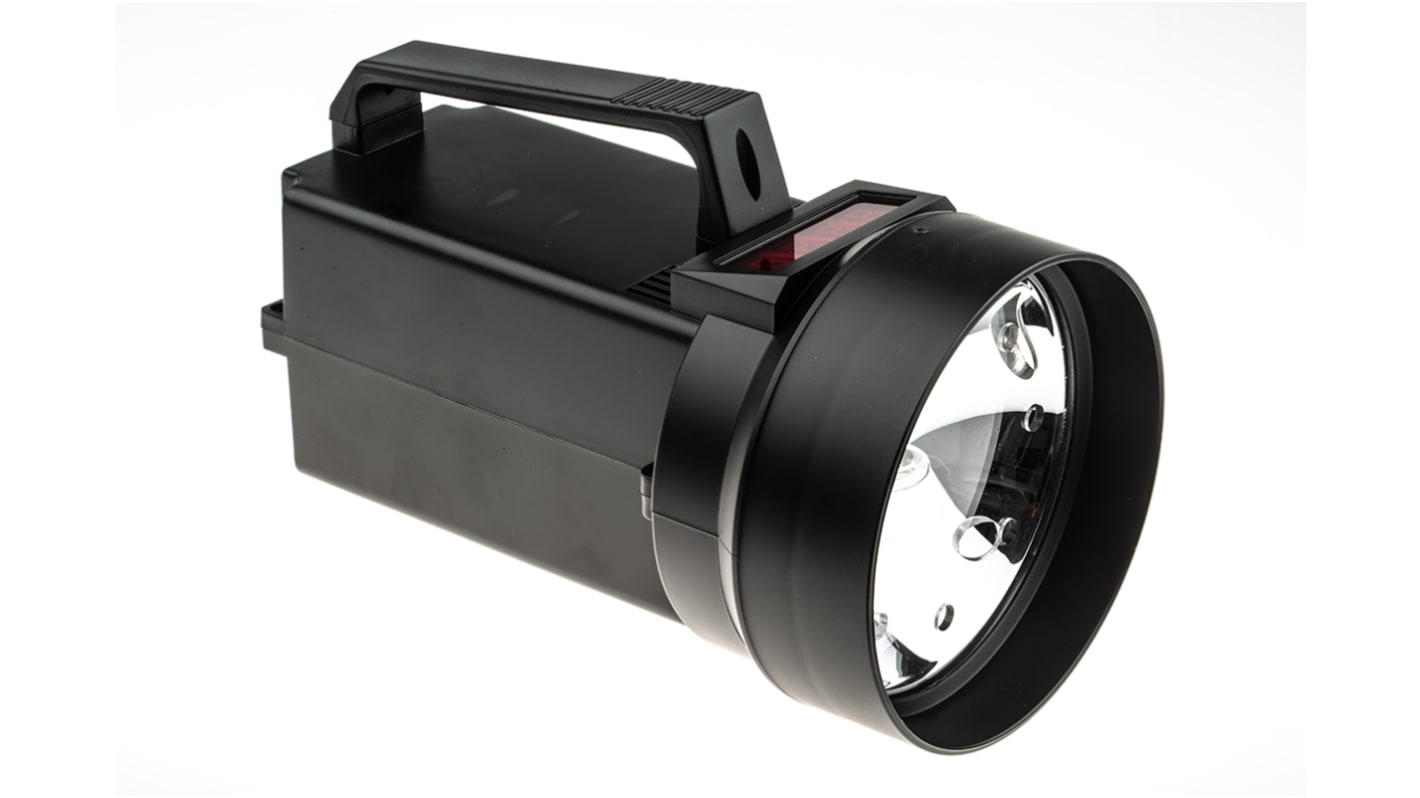

RS Pro Stroboscopic Tachometer
A stroboscope for determination of the rotation speed of shafts or motors. The Xenon tube flashrate can be set using a coarse/fine adjust potentiometer to match a rotating object, which appears to freeze its motion. A digital display indicates rpm and flashrate.
Features and Benefits
•Manual adjusts of flashrate
•Digital display of rpm/flashrate
•Hand held or tripod mountable
•Power Chord
•A hand held mains powered unit, which combines a stroboscope with a tachometer. It can be used to determine or monitor the rotational speed of motors, fans, pumps, conveyors, etc.
•The unit has a powerful Xenon flash unit which illuminates the part in question. The speed can be easily determined by adjusting the stroboscope flash rate, until the rotating part appears to be stationary. The rotational speed is indicated on the digital display
•The unit can be either hand held or mounted on a suitable tripod for free standing applications
•Digital display of rpm/flashrate
•Hand held or tripod mountable
•Power Chord
•A hand held mains powered unit, which combines a stroboscope with a tachometer. It can be used to determine or monitor the rotational speed of motors, fans, pumps, conveyors, etc.
•The unit has a powerful Xenon flash unit which illuminates the part in question. The speed can be easily determined by adjusting the stroboscope flash rate, until the rotating part appears to be stationary. The rotational speed is indicated on the digital display
•The unit can be either hand held or mounted on a suitable tripod for free standing applications
Specifications
Attribute | Value |
|---|---|
| Best Accuracy | ±0.05 % |
| Sample Time | 1s |
| Flash Colour | Xenon White |
| Dimensions | 120 x 210 x 120mm |
| Weight | 1kg |
| Height | 120mm |
| Length | 120mm |
| Maximum Operating Temperature | 50°C |
| Maximum Speed | 10000rpm |
| Minimum Flash Rate | 100fp/min |
| Minimum Operating Temperature | 0°C |
| Minimum Speed | 100rpm |
| Model Number p | DT-2239-2 (230V) |
| Width | 210mm |
| Plug Type | Type G - British 3-pin |
