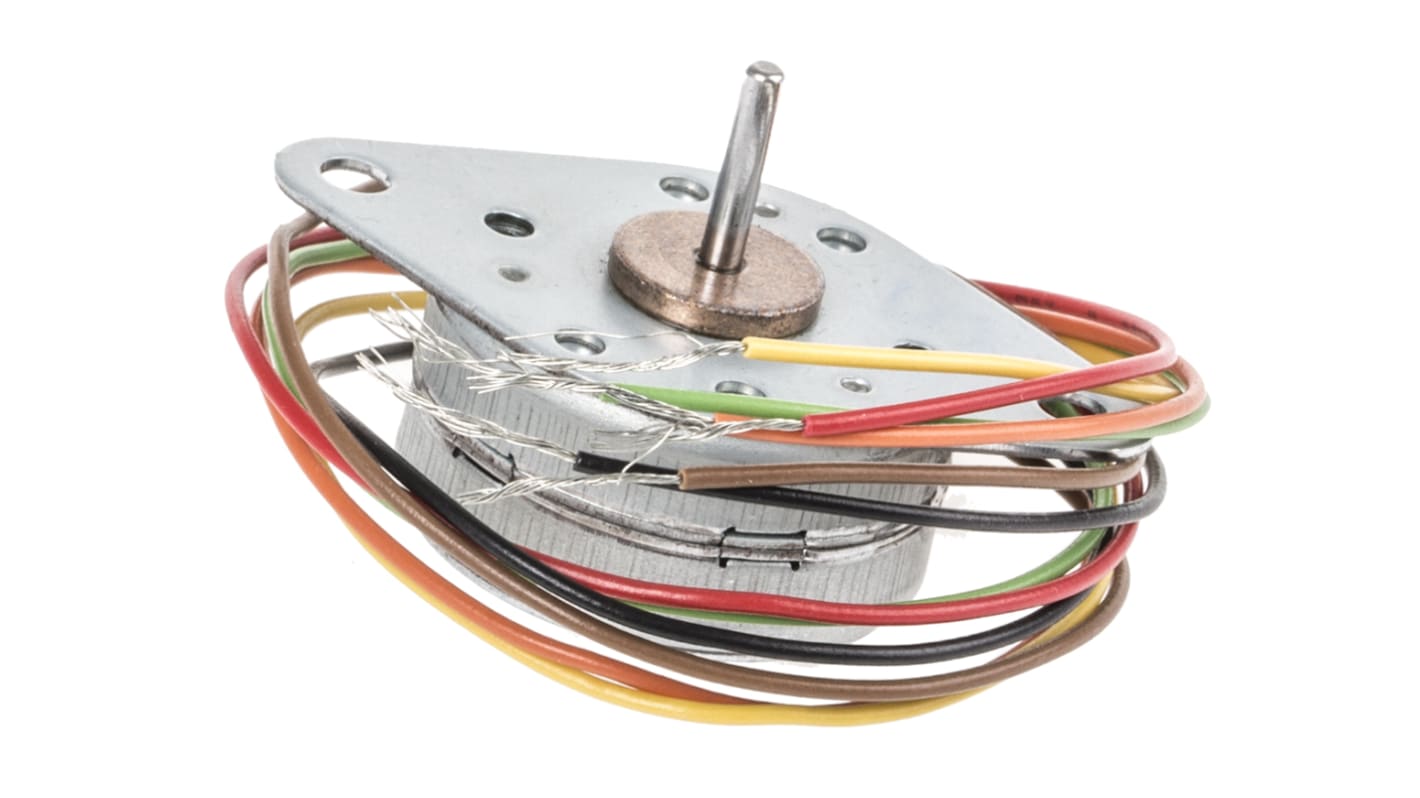

McLennan Servo Supplies 26M048B Series Stepper Motor 5V, 10.6mNm Torque, 7.5 °, 26 mm Frame, 2 mm Shaft
- RS Stock No.:
- 368-0277
- Mfr. Part No.:
- 26M048B-1U
- Brand:
- McLennan Servo Supplies
Subtotal (1 unit)*
£32.62
(exc. VAT)
£39.14
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £32.62 |
*price indicative
- RS Stock No.:
- 368-0277
- Mfr. Part No.:
- 26M048B-1U
- Brand:
- McLennan Servo Supplies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | McLennan Servo Supplies | |
| Product Type | Stepper Motor | |
| Step Angle | 7.5° | |
| Holding Torque | 10.6mNm | |
| Voltage | 5V | |
| Frame Size | 26 mm | |
| Shaft Diameter | 2mm | |
| Current Rating | 250mA | |
| Winding Arrangement | Unipolar, Bipolar | |
| Shaft Length | 9.78mm | |
| Number of Pole Pairs | 2 | |
| Resistance Per Phase | 19.6Ω | |
| Standards/Approvals | RoHS Compliant | |
| Depth | 13.72mm | |
| Series | 26M048B | |
| Detent Torque | 0.85mNm | |
| Select all | ||
|---|---|---|
Brand McLennan Servo Supplies | ||
Product Type Stepper Motor | ||
Step Angle 7.5° | ||
Holding Torque 10.6mNm | ||
Voltage 5V | ||
Frame Size 26 mm | ||
Shaft Diameter 2mm | ||
Current Rating 250mA | ||
Winding Arrangement Unipolar, Bipolar | ||
Shaft Length 9.78mm | ||
Number of Pole Pairs 2 | ||
Resistance Per Phase 19.6Ω | ||
Standards/Approvals RoHS Compliant | ||
Depth 13.72mm | ||
Series 26M048B | ||
Detent Torque 0.85mNm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- MY
Series M, Stepper Motor
A range of McLennan permanent magnet stepper motors that uses the simplest of designs and techniques to create an effective solution for many applications, where reasonable accuracy and moderate torque are required. Generally large frame size motors deliver more torque. The M series of stepper motors are best suited where large volumes are likely.
