RS PRO CPP Series Terminal Strip, 12-Way, 10mm² Wire, 57A Screw

View all Standard Terminal Blocks
Bulk discount available

Subtotal (1 pack of 5 units)*

£11.56

(exc. VAT)

£13.87

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 465 unit(s) shipping from 04 May 2026
  • Plus 48 unit(s) shipping from 04 May 2026
  • Plus 10 unit(s) shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Pack(s)
Per Pack
Per unit*
1 - 24£11.56£2.312
25 - 49£11.03£2.206
50 +£10.40£2.08

*price indicative

RS Stock No.:
703-3849
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Number of Ways

12

Product Type

Terminal Strip

Current

57A

Wire Size

10mm²

Mount Type

Direct

Fused

No

Contact Material

Brass

Material

Polypropylene

Voltage

400V

Pitch

11mm

Colour

Black

Series

CPP

Cable CSA

10mm²

Wire Protection

No

Termination Type

Screw

Gender

Female

Enclosed

No

Maximum Operating Temperature

80°C

Hazardous Area Certification

NO

Standards/Approvals

No

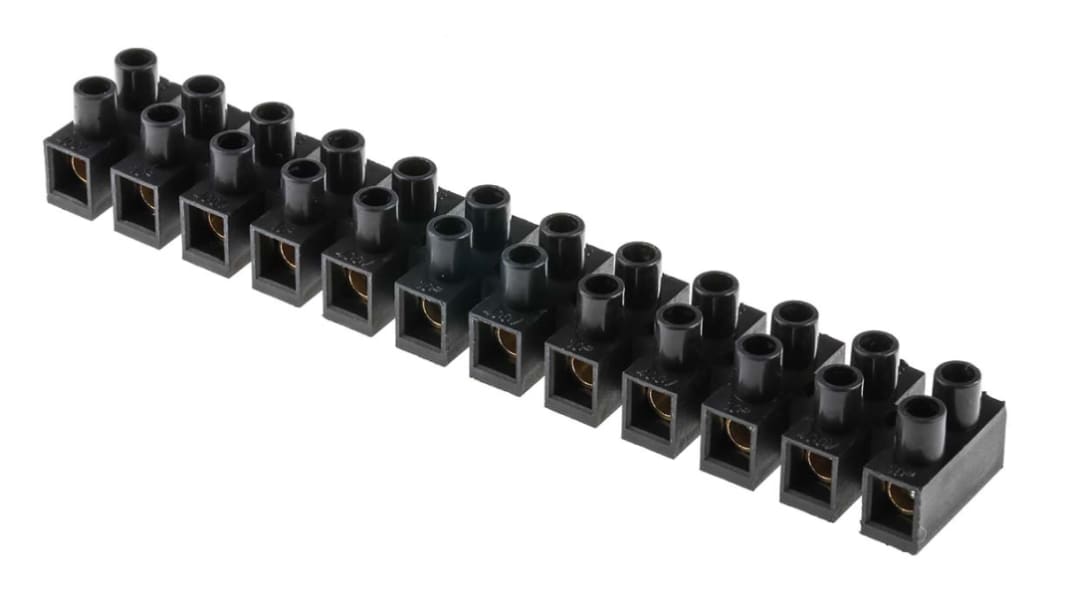

RS PRO Terminal Strip, Straight, 12-way, 2 Row, 11 mm Fixing Centres, 57 A, 400 V, Length 150.5 mm, Black


Logically arrange and organise your wires with this terminal strip from the RS PRO range. The modular, insulated block has 12 contacts across two parallel rows. Use it to make wire-to-wire and wire-to-board connections without requiring plugs.

The clamping component and conducting brass strip allows you to effortlessly connect electrical components. Make quick connections and disconnections by just pressing the wire against the strip's conductor block using a screwdriver. The polypropylene cover provides resistance to chemicals, heat and fatigue. The screw clamps can support a wide range of wire sizes and provide secure connections.

A terminal strip like this one from the RS PRO series can be used in any electrical situation where wires need to be linked together. It creates a fixed connection that's easily accessible if you need to troubleshoot problems.

Features and Benefits


• Polypropylene housing material

• Screw-type electrical connector

• 12 contacts in 2 rows

• Wire size of 10 mm²

• Fixing centres at 11 mm

• Flame retardant

• Black in colour

• Straight body orientation

• Operating temperature up to +80°C

• Dimensions of 150.5 mm (L) x 20.7 mm (W) x 11 mm (D)

• Conforms to CE (BS EN 60998) standards for electrical connectors
