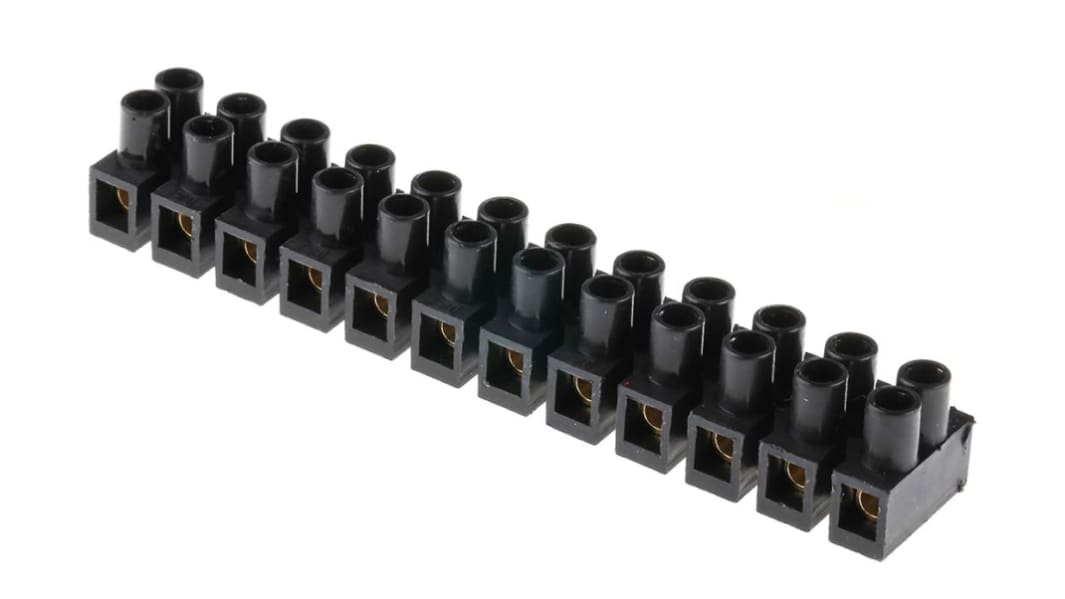

This RS PRO terminal strip is a modular, insulated block with 12 contacts organised in two parallel rows. They're used to make wire-to-board and wire-to-wire connections without the need for plugs.

The unit consists of a clamping component and a conducting brass strip that helps connect electrical components. The screw clamps can accommodate a wide range of wire sizes and provide reliable connections. You simply press the wire against the conductor strip in the block using a screwdriver – it's quick to connect and disconnect. The strip is housed in a polypropylene cover, which provides good resistance to chemicals, fatigue and heat.

Terminal strips can be used in any electrical situation where wires need to be joined together. They create a fixed connection that's readily accessible for troubleshooting. Where there are a few wires to connect, they organise connections into a logical arrangement.

• Polypropylene housing material
• Screw-type electrical connector
• 12 contacts in 2 rows
• Wire size of 2.5 mm
• Cross-section sizes from 0.5 mm² to 4 mm²
• Flame retardant
• Black in colour
• Straight body orientation
• Screws made of galvanised steel
• Operating temperature up to +85°C
• Dimensions of 93.7 mm (L) x 16 mm (W) x 15 mm (H)
• Conforms to CE (BS EN 60998) for electrical connectors
