CAMDENBOSS CT/B Series PCB Terminal Block, 3-Way, 2.5mm² Wire, 24A Clamp
- RS Stock No.:
- 281-9527
- Distrelec Article No.:
- 304-41-544
- Mfr. Part No.:
- CTB0109/3
- Brand:
- CAMDENBOSS
Subtotal (1 pack of 2000 units)*
£2,174.00
(exc. VAT)
£2,608.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2000 + | £1.087 | £2,174.00 |
*price indicative
- RS Stock No.:
- 281-9527
- Distrelec Article No.:
- 304-41-544
- Mfr. Part No.:
- CTB0109/3
- Brand:
- CAMDENBOSS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | CAMDENBOSS | |
| Product Type | PCB Terminal Block | |
| Number of Ways | 3 | |
| Current | 24A | |
| Wire Size | 2.5mm² | |
| Contact Material | Tinned Nickel Plated Brass | |
| Material | Polyamide | |
| Voltage | 250V | |
| Pitch | 5.08mm | |
| Colour | Grey | |
| Series | CT/B | |
| Termination Type | Clamp | |
| Maximum Operating Temperature | 110°C | |
| Standards/Approvals | UL94-V0, UL, RoHS, cUL | |
| Hazardous Area Certification | No | |
| Contact Plating | Nickel Plated Steel | |
| Select all | ||
|---|---|---|
Brand CAMDENBOSS | ||
Product Type PCB Terminal Block | ||
Number of Ways 3 | ||
Current 24A | ||
Wire Size 2.5mm² | ||
Contact Material Tinned Nickel Plated Brass | ||
Material Polyamide | ||
Voltage 250V | ||
Pitch 5.08mm | ||
Colour Grey | ||
Series CT/B | ||
Termination Type Clamp | ||
Maximum Operating Temperature 110°C | ||
Standards/Approvals UL94-V0, UL, RoHS, cUL | ||
Hazardous Area Certification No | ||
Contact Plating Nickel Plated Steel | ||
- COO (Country of Origin):
- RO

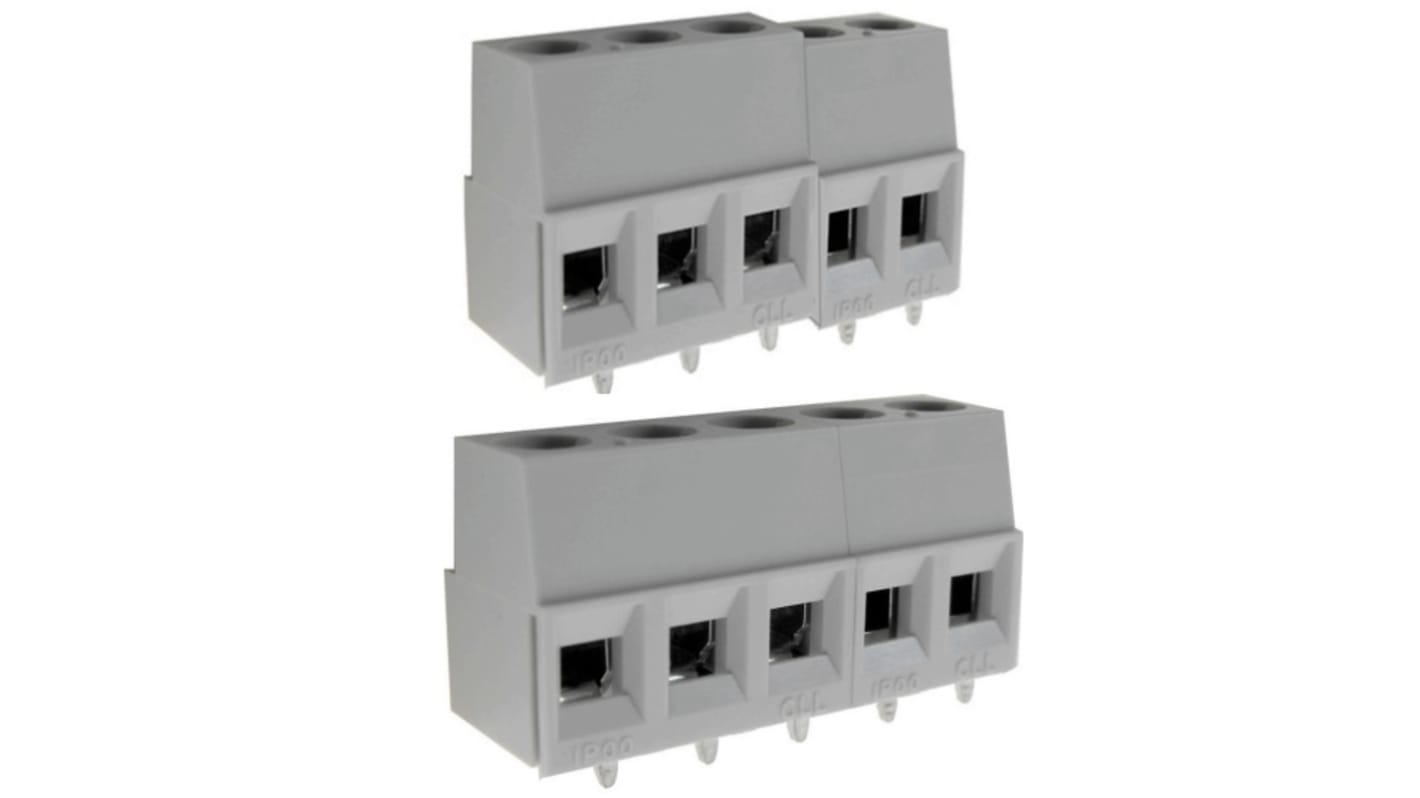

The CAMDENBOSS Standard Profile PCB Terminal Block having Stamped Insert and 5.08 mm pitch. It has length of 15.2 mm and 3-poles. It has current rating of 24 A and voltage rating of 250 V.
2 and 3 pole double interlocking mechanism for increased strength
4 to 12 pole pre-assembled
Moulded in grey UL94-V0 flame retardant PA
Professional rising clamp terminals
Moulded in green UL94-V0 flame retardant PA
Guided pin alignment
Captive screws
