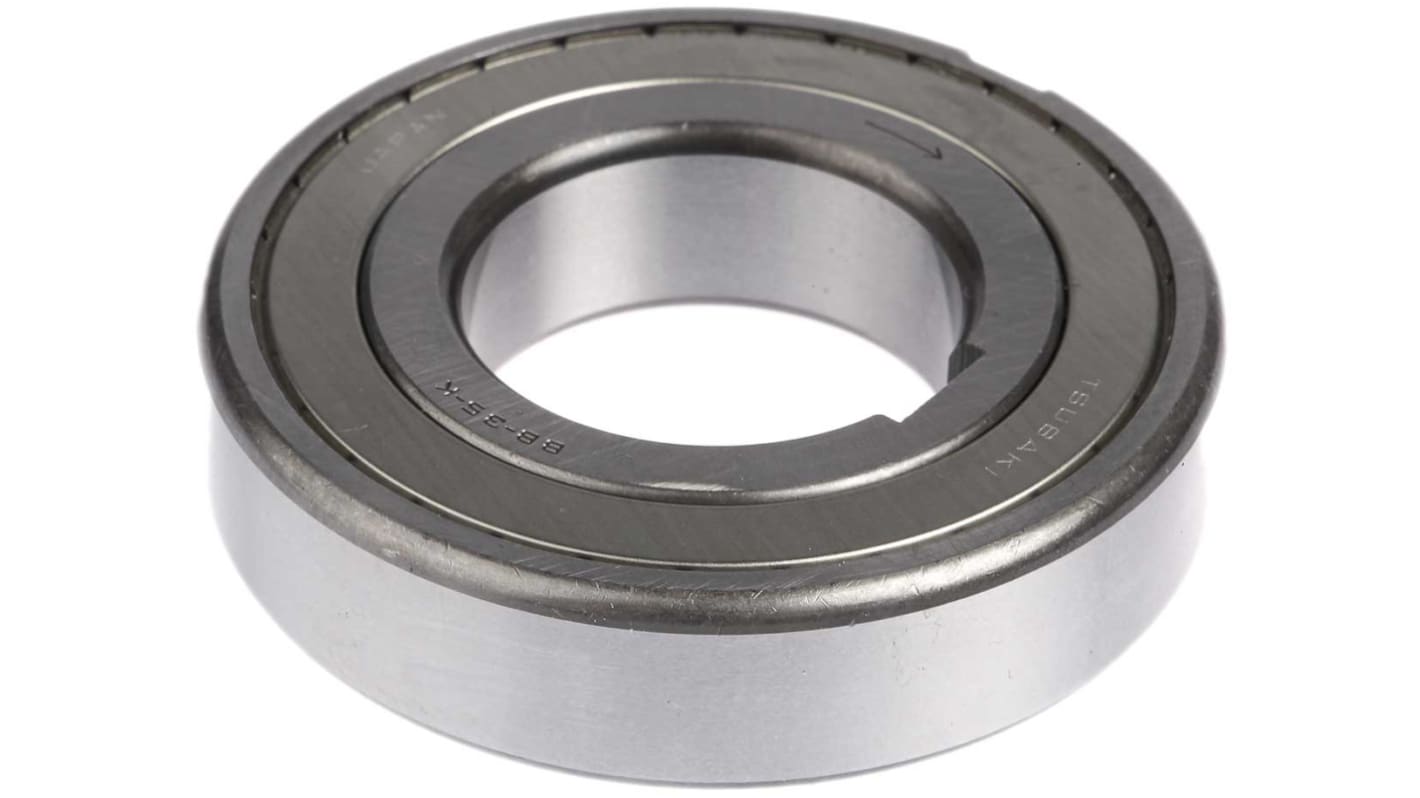

Tsubaki BB35-2K-K Cam Clutch 35 mm ID 80 mm OD 17 mm Race Width
- RS Stock No.:
- 184-5756
- Mfr. Part No.:
- BB35-2K-K
- Brand:
- Tsubaki
Bulk discount available
Subtotal (1 unit)*
£78.14
(exc. VAT)
£93.77
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £78.14 |
| 5 + | £75.00 |
*price indicative
- RS Stock No.:
- 184-5756
- Mfr. Part No.:
- BB35-2K-K
- Brand:
- Tsubaki
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Tsubaki | |
| Product Type | Cam Clutch | |
| Inside Diameter | 35mm | |
| Outside Diameter | 80mm | |
| Race Width | 17mm | |
| Series | BB | |
| Dynamic Load Rating | 13.5kN | |
| Static Load Rating | 9.7kN | |
| Keyway Type | 2K-K types | |
| Standards/Approvals | DIN6885.3, DIN6885.1 | |
| Select all | ||
|---|---|---|
Brand Tsubaki | ||
Product Type Cam Clutch | ||
Inside Diameter 35mm | ||
Outside Diameter 80mm | ||
Race Width 17mm | ||
Series BB | ||
Dynamic Load Rating 13.5kN | ||
Static Load Rating 9.7kN | ||
Keyway Type 2K-K types | ||
Standards/Approvals DIN6885.3, DIN6885.1 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- JP
The BB Series functions both as an one-way clutch and a bearing within its compact body, allowing you to use your space more effectively. Capable of transmitting larger torque than shell design roller clutches by arranging the number of cams between the inner and outer races.
Compact Design
Easy Installation
Increased Torque Capacity
Available with an oil seal
