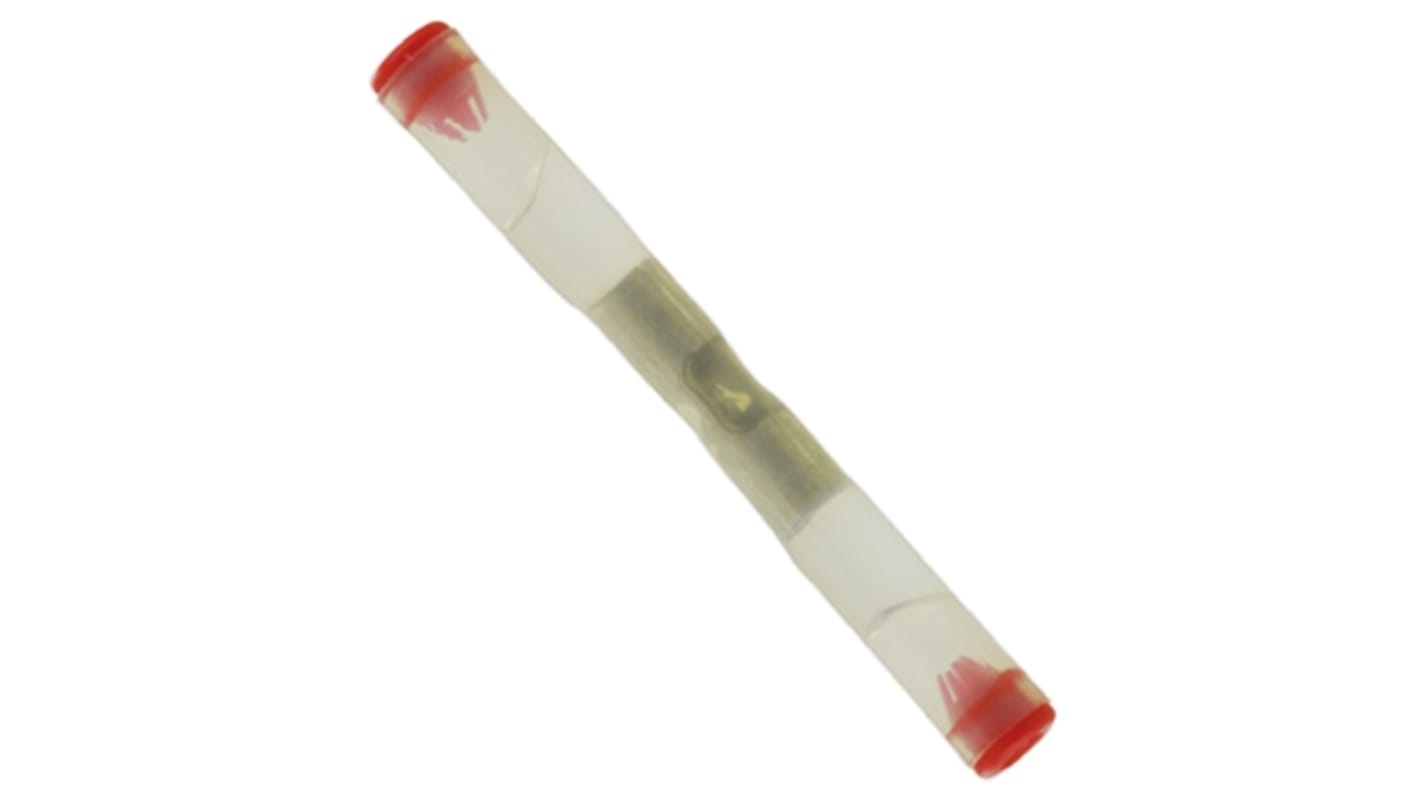

TE Connectivity, MiniSeal Butt Splice Connector, Red, Insulated 26 → 20 AWG
- RS Stock No.:
- 782-4755
- Mfr. Part No.:
- D-436-36-COLD
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£22.28
(exc. VAT)
£26.74
(inc. VAT)
- RS Stock No.:
- 782-4755
- Mfr. Part No.:
- D-436-36-COLD
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Splice Type | Butt | |
Wire Size | 26 → 20 AWG | |
Overall Length | 36.8mm | |
Insulation | Insulated | |
Colour | Red | |
Series | MiniSeal | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Splice Type Butt | ||
Wire Size 26 → 20 AWG | ||
Overall Length 36.8mm | ||
Insulation Insulated | ||
Colour Red | ||
Series MiniSeal | ||
- COO (Country of Origin):
- MX
TE Connectivity Cold Applied In-Line Splices
Cold applied in-line splices that require no heating for installation and provide environmental sealing against moisture using a flame retardant silicone based gel sealing system and electrical isolation using a polymer outer layer. The crimp barrels of these splices are made from tin plated copper and the transparent polyvinylidene fluoride insulation sleeves have a colour coded end cap at either end. These cold applied in-line splices provide protection and sealing on all conventional MIL spec and commercial wire insulation systems.
Stock number 782-4755 is for use with a wire range of 26, 24, 22 and 20 AWG and has red colour coded caps at either end
Stock number 782-4768 is for use with a wire range of 18 to16 AWG and has blue colour coded caps at either end
Stock number 782-4759 is for use with a wire range of 14 to12 AWG and has yellow colour coded caps at either end
Stock number 782-4755 is for use with a wire range of 26, 24, 22 and 20 AWG and has red colour coded caps at either end
Stock number 782-4768 is for use with a wire range of 18 to16 AWG and has blue colour coded caps at either end
Stock number 782-4759 is for use with a wire range of 14 to12 AWG and has yellow colour coded caps at either end
Note
An AD-1381 or approved M22520/44-01 crimp tool must be used for proper installation of these devices.
Standards
Meets or exceeds the following: SAE-AMS-DTL-23053/8 (Insulation sleeve), SAE-AS81824/12
Under qualification for SAE AS81824 and AS81824/12
Under qualification for SAE AS81824 and AS81824/12
