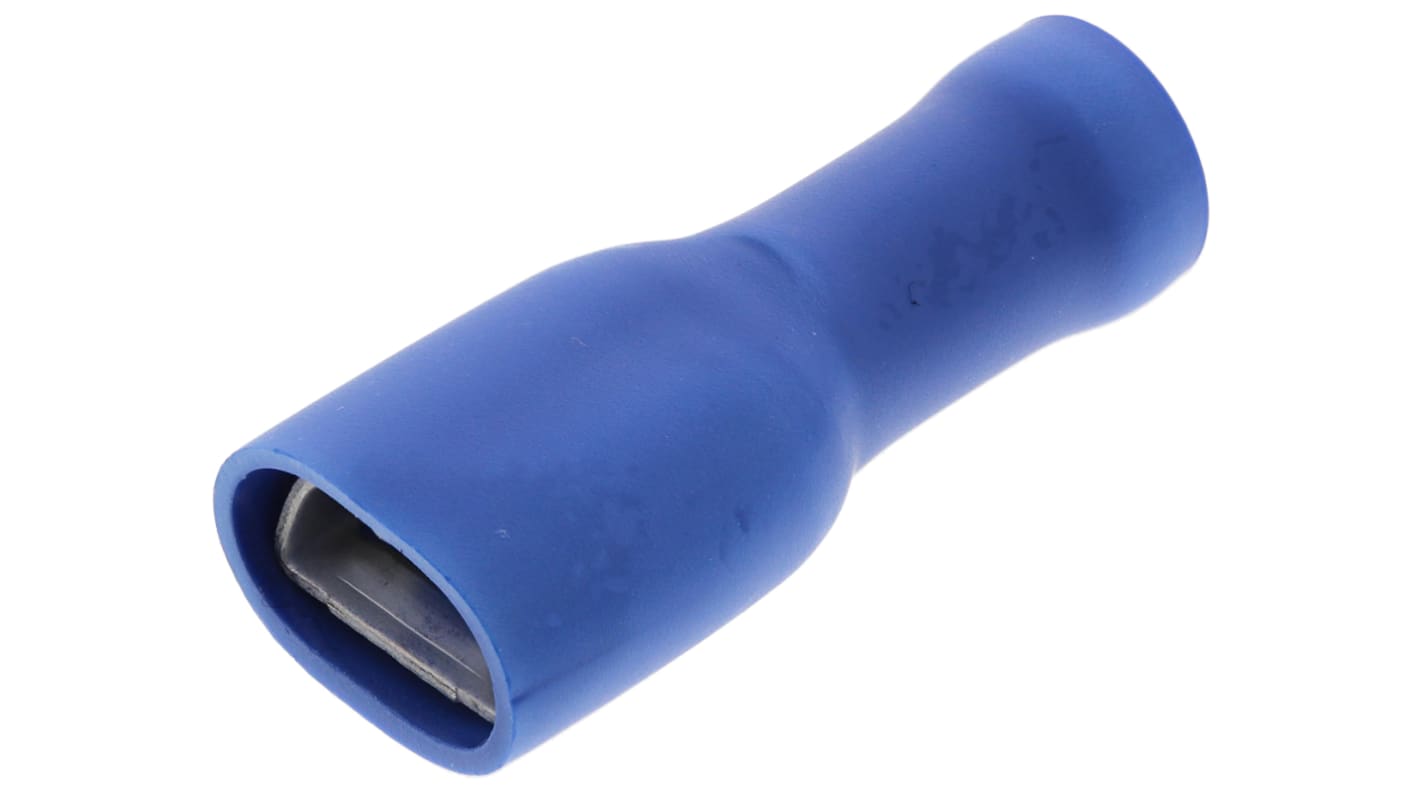

JST FLVDDF Blue Insulated Female Spade Connector, Crimp, 6.35 x 0.8 mm Tab Size 16 AWG to 14 AWG
- RS Stock No.:
- 688-1408
- Mfr. Part No.:
- FLVDDF2-250A(PA)
- Brand:
- JST
Bulk discount available
Subtotal (1 pack of 100 units)*
£30.50
(exc. VAT)
£36.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10,200 unit(s) ready to ship
- Plus 1,100 unit(s) ready to ship from another location
- Plus 5,000 unit(s) shipping from 12 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 100 | £0.305 | £30.50 |
| 200 - 200 | £0.296 | £29.60 |
| 300 + | £0.283 | £28.30 |
*price indicative
- RS Stock No.:
- 688-1408
- Mfr. Part No.:
- FLVDDF2-250A(PA)
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Termination Type | Crimp | |
| Product Type | Spade Connector | |
| Gender | Female | |
| Tab Size | 6.35 x 0.8 mm | |
| Tab Thickness | 20.32mm | |
| Tab Width | 187.96mm | |
| Insulation | Insulated | |
| Maximum Wire Size mm² | 2.6mm² | |
| Minimum Wire Size AWG | 16AWG | |
| Minimum Wire Size mm² | 1mm² | |
| Maximum Wire Size AWG | 14AWG | |
| Colour | Blue | |
| Contact Material | Copper | |
| Orientation | Straight | |
| Insulation Material | Vinyl | |
| Standards/Approvals | No | |
| Overall Length | 21mm | |
| Series | FLVDDF | |
| Select all | ||
|---|---|---|
Brand JST | ||
Termination Type Crimp | ||
Product Type Spade Connector | ||
Gender Female | ||
Tab Size 6.35 x 0.8 mm | ||
Tab Thickness 20.32mm | ||
Tab Width 187.96mm | ||
Insulation Insulated | ||
Maximum Wire Size mm² 2.6mm² | ||
Minimum Wire Size AWG 16AWG | ||
Minimum Wire Size mm² 1mm² | ||
Maximum Wire Size AWG 14AWG | ||
Colour Blue | ||
Contact Material Copper | ||
Orientation Straight | ||
Insulation Material Vinyl | ||
Standards/Approvals No | ||
Overall Length 21mm | ||
Series FLVDDF | ||
JST Series Fully Insulated Crimp Receptacle Terminals
Fully insulated solderless crimp receptacle termimals available in a range of wire size ranges. These female crimp receptacle terminals have a copper sleeve and flared colour-coded full vinyl insulation.
JST Insulated Crimp Terminals
