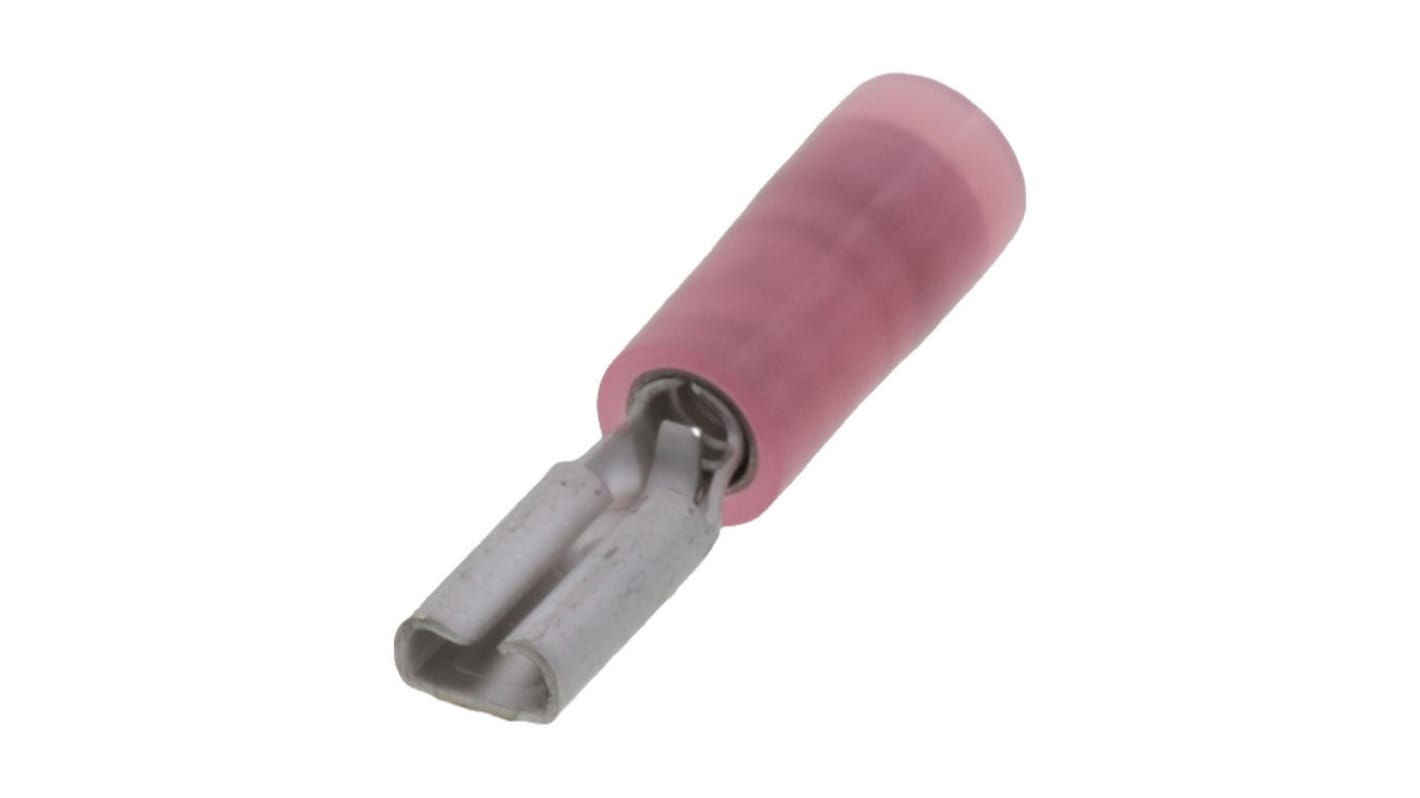

Molex 19019 Red Insulated Female Spade Connector, Quick Disconnect, 2.79 x 0.51mm Tab Size
- RS Stock No.:
- 287-2211
- Mfr. Part No.:
- 190190001
- Brand:
- Molex
Bulk discount available
Subtotal (1 box of 1000 units)*
£219.00
(exc. VAT)
£263.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 1000 - 1000 | £0.219 | £219.00 |
| 2000 - 4000 | £0.206 | £206.00 |
| 5000 + | £0.198 | £198.00 |
*price indicative
- RS Stock No.:
- 287-2211
- Mfr. Part No.:
- 190190001
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Type | Quick Disconnect | |
| Spade Connector Type | Quick Disconnect | |
| Gender | Female | |
| Series | 19019 | |
| Tab Size | 2.79 x 0.51mm | |
| Tab Width | 2.79mm | |
| Tab Thickness | 0.51mm | |
| Insulation | Insulated | |
| Colour | Red | |
Select all | ||
|---|---|---|
Brand Molex | ||
Type Quick Disconnect | ||
Spade Connector Type Quick Disconnect | ||
Gender Female | ||
Series 19019 | ||
Tab Size 2.79 x 0.51mm | ||
Tab Width 2.79mm | ||
Tab Thickness 0.51mm | ||
Insulation Insulated | ||
Colour Red | ||
- COO (Country of Origin):
- US
The Molex Avikrimp Quick Disconnect is a female connector designed for 18 to 22 (0.80 to 0.35mm²) wire. It features a box and tab construction with dimensions of 2.79 x 0.51mm. This quick disconnect terminal is suitable for various applications requiring a reliable and efficient electrical connection.
Compact box and tab design with dimensions of 2.79 x 0.51mm
Insulated with nylon (PA) material for enhanced safety
Durable brass construction with tin plating
Operates in temperature range of -65° to +105°C
Easy crimp or compression termination for quick installation
Flame-retardant resin material with 94V-2 flammability rating
Low-halogen construction per IEC 61249-2-21
Compliant with EU RoHS and China RoHS regulations
Insulated with nylon (PA) material for enhanced safety
Durable brass construction with tin plating
Operates in temperature range of -65° to +105°C
Easy crimp or compression termination for quick installation
Flame-retardant resin material with 94V-2 flammability rating
Low-halogen construction per IEC 61249-2-21
Compliant with EU RoHS and China RoHS regulations
