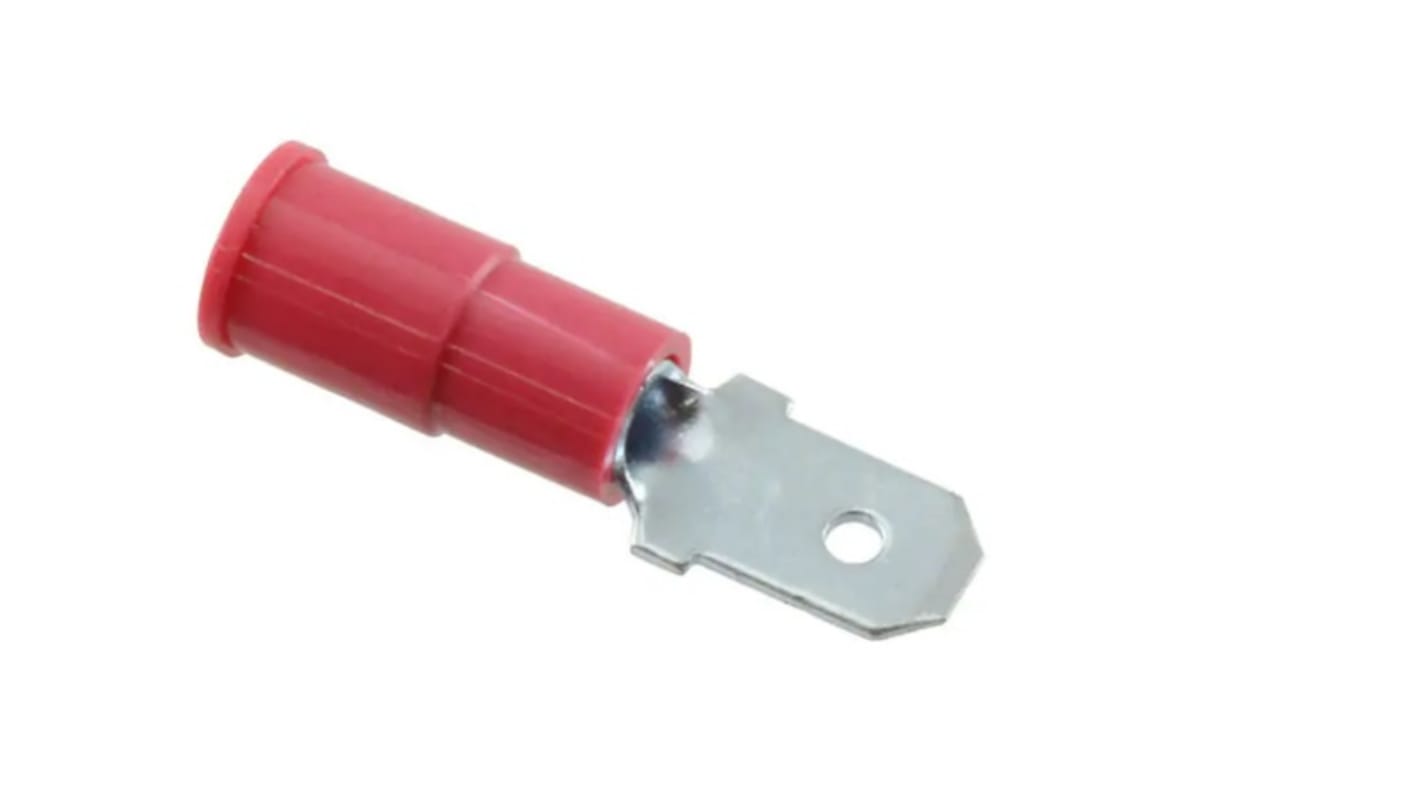

Molex 19023 Red Insulated Male Spade Connector, Crimp, 4.75 x 0.51 mm Tab Size 22 AWG to 18 AWG
- RS Stock No.:
- 213-5358
- Distrelec Article No.:
- 304-57-072
- Mfr. Part No.:
- 190230003
- Brand:
- Molex
Subtotal (1 bag of 1000 units)*
£139.00
(exc. VAT)
£167.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Bag* |
|---|---|---|
| 1000 + | £0.139 | £139.00 |
*price indicative
- RS Stock No.:
- 213-5358
- Distrelec Article No.:
- 304-57-072
- Mfr. Part No.:
- 190230003
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Termination Type | Crimp | |
| Product Type | Spade Connector | |
| Gender | Male | |
| Tab Size | 4.75 x 0.51 mm | |
| Tab Width | 4.75mm | |
| Tab Thickness | 0.51mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 18AWG | |
| Minimum Wire Size AWG | 22AWG | |
| Colour | Red | |
| Contact Material | Brass | |
| Contact Plating | Zinc Chromate | |
| Orientation | Straight | |
| Standards/Approvals | UL E79133, CSA LR18689 | |
| Insulation Material | Polyvinyl Chloride | |
| Series | 19023 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Termination Type Crimp | ||
Product Type Spade Connector | ||
Gender Male | ||
Tab Size 4.75 x 0.51 mm | ||
Tab Width 4.75mm | ||
Tab Thickness 0.51mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 18AWG | ||
Minimum Wire Size AWG 22AWG | ||
Colour Red | ||
Contact Material Brass | ||
Contact Plating Zinc Chromate | ||
Orientation Straight | ||
Standards/Approvals UL E79133, CSA LR18689 | ||
Insulation Material Polyvinyl Chloride | ||
Series 19023 | ||
The Molex 190230003 is a standard InsulKrimp quick disconnect terminal. which has a male gender, compatible for 18 to 22 AWG or 0.80 to 0.35mm² Wire. It has a tab dimensions of 4.75 x 0.51mm.
CSA certified
UL certified
