MPN

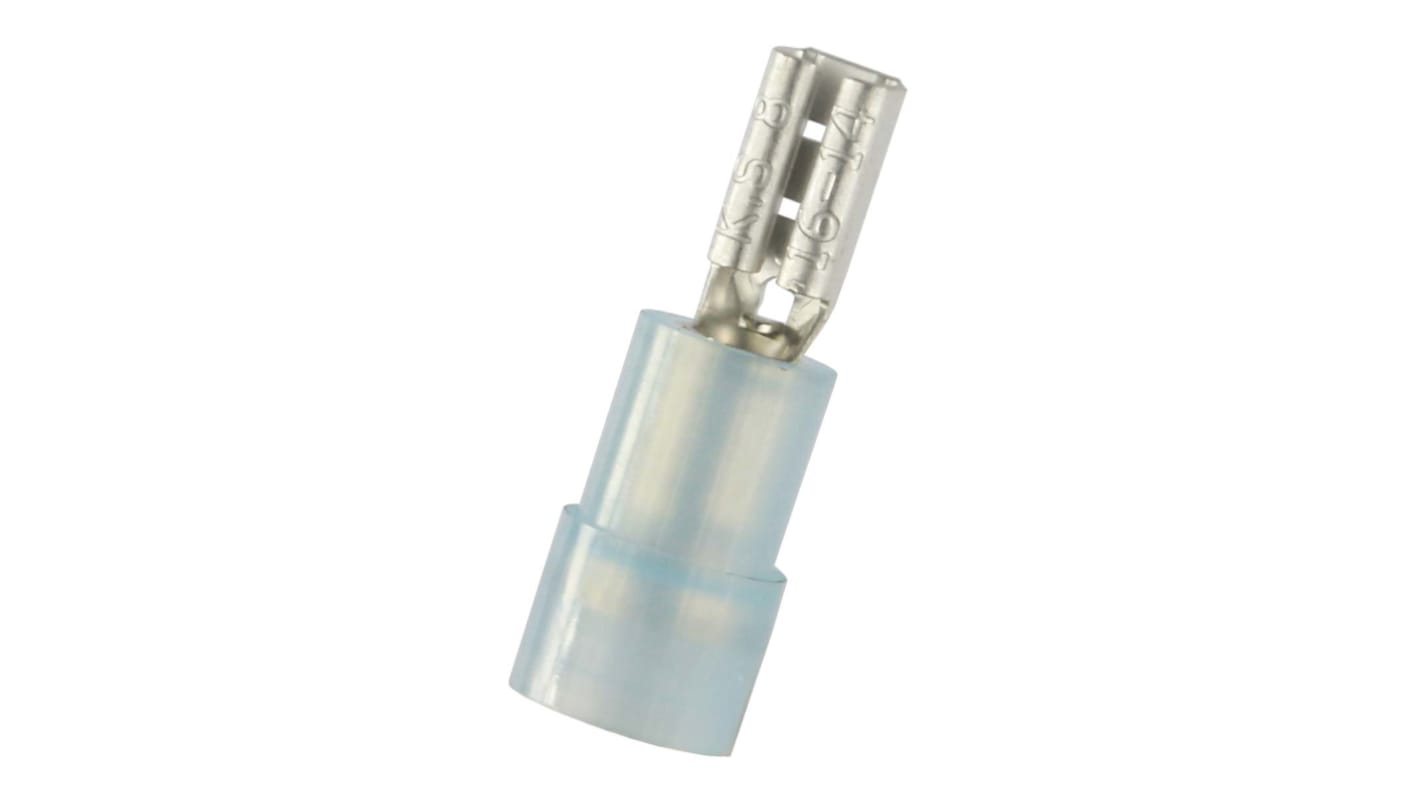

RS PRO Blue Insulated Female Spade Connector, Double Crimp, 0.8 x 2.8mm Tab Size, 1.5mm² to 2.5mm²

RS Stock No.:: 205-5291
Brand:: RS PRO

RS PRO Blue Insulated Female Spade Connector, Double Crimp, 0.8 x 2.8mm Tab Size, 1.5mm² to 2.5mm²

Subtotal (1 bag of 50 units)*

£16.57

(exc. VAT)

£19.88

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship from another location
Plus 5 unit(s) shipping from 11 November 2025
Plus 38 unit(s) shipping from 06 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Bag(s)	Per Bag	Per unit*
1 +	£16.57	£0.331

*price indicative

RS Stock No.:: 205-5291
Brand:: RS PRO

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Type	Double Crimp
	Spade Connector Type	Receptacle
	Minimum Wire Size mm²	1.5mm²
	Gender	Female
	Maximum Wire Size mm²	2.5mm²
	Tab Width	2.8mm
	Tab Size	0.8 x 2.8mm
	Tab Thickness	0.8mm
	Insulation	Insulated
	Maximum Wire Size AWG	14AWG
	Minimum Wire Size AWG	16AWG
	Colour	Blue
	Termination Method	Crimp
	Contact Material	Brass, Copper
	Contact Plating	Tin
	Wire Size	1.5 → 2.5 mm², 16 → 14 AWG
	Orientation	Straight
	Insulation Material	Nylon
	Shrouded/Unshrouded	Unshrouded
	Overall Length	19.6mm

	Select all
	Brand RS PRO
	Type Double Crimp
	Spade Connector Type Receptacle
	Minimum Wire Size mm² 1.5mm²
	Gender Female
	Maximum Wire Size mm² 2.5mm²
	Tab Width 2.8mm
	Tab Size 0.8 x 2.8mm
	Tab Thickness 0.8mm
	Insulation Insulated
	Maximum Wire Size AWG 14AWG
	Minimum Wire Size AWG 16AWG
	Colour Blue
	Termination Method Crimp
	Contact Material Brass, Copper
	Contact Plating Tin
	Wire Size 1.5 → 2.5 mm², 16 → 14 AWG
	Orientation Straight
	Insulation Material Nylon
	Shrouded/Unshrouded Unshrouded
	Overall Length 19.6mm

RS PRO Insulated Female Spade Connector

The RS PRO range of insulated spade connectors keeps on improving. We are pleased to introduce a series of female spade connectors made from high-quality brass. These connectors are perfect for connecting electrical cable wire, and our offer caters to popular wire sizes; 10 AWG to 26 AWG. During application these connectors have a crimp termination, so the mating of connector and wire can be easily achieved with a good quality crimp tool.

Why would you need a spade connector?

Spade connectors are the ideal solution for creating a union for electrical connections. They are commonly found in applications such as car audio systems and automotive wiring. Colour coded spade connectors makes an install easy to follow while offering a professional appearance.

Features and Benefits

• Female spade connector

• Insulated Materials: High Density PE, Nylon or Vinyl

• Various Colours

• Crimp connection

• Secure and permanent electrical connection

• Brass

• Excellent conductivity

Things to consider

When selecting the right terminal for your application, you should consider the following;

• Wire size 'mm' (metric) or 'AWG' (American Wire Gauge)

• Tab size to which you will be connecting the terminal.

• Width of the receptacle should match the width of the tab it is mating with and vice versa.

How to crimp a female spade connector

Mating a wire with a terminal is an easy application achievable by professional and DIY users alike. Slide the appropriate wire into the tunnel on the connector and using pliers or a crimp tool apply moderate clamping pressure until a perfect union is achieved. A quick check that the wire has no movement is advised.

Applications

These female connectors are used in a wide range of industries including industrial, automotive, and consumer industries. Applications include;

• Electrical Cable Installation

• Industrial control systems

• Automotive applications

• Communication equipment

• Power supplies

• HVAC

Why would you choose RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
