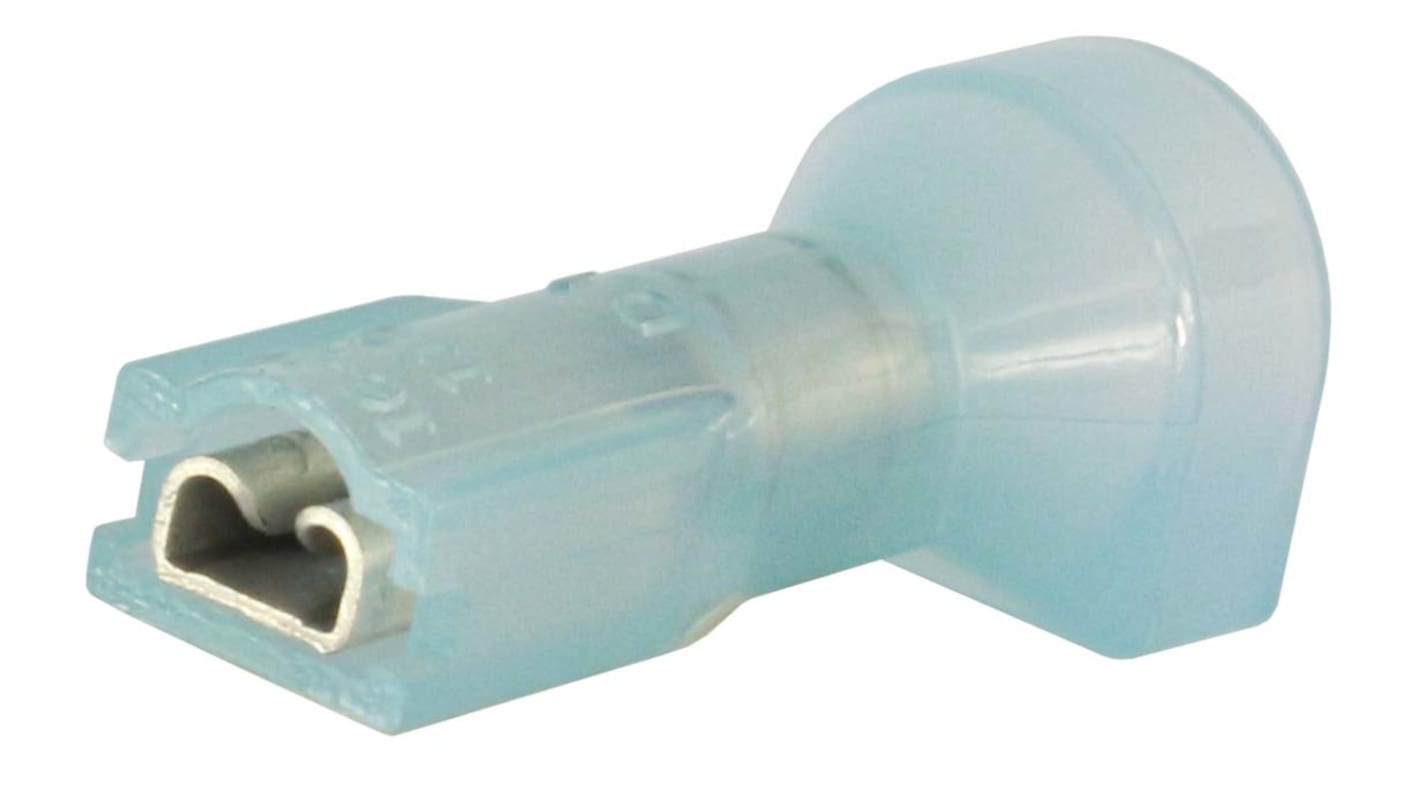

RS PRO Blue Insulated Female Spade Connector, Twin Wire, 0.5 x 2.8mm Tab Size, 1.5mm² to 2.5mm²

Subtotal (1 bag of 50 units)*

£10.67

(exc. VAT)

£12.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship
  • Plus 8 unit(s) ready to ship from another location
  • Plus 21 unit(s) shipping from 03 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 +£10.67£0.213

*price indicative

RS Stock No.:
205-5278
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Type

Twin Wire

Spade Connector Type

Receptacle

Gender

Female

Minimum Wire Size mm²

1.5mm²

Maximum Wire Size mm²

2.5mm²

Tab Size

0.5 x 2.8mm

Tab Thickness

0.5mm

Tab Width

2.8mm

Insulation

Insulated

Minimum Wire Size AWG

16AWG

Maximum Wire Size AWG

14AWG

Colour

Blue

Termination Method

Crimp

Contact Material

Brass

Contact Plating

Tin

Wire Size

1.5 → 2.5 mm², 16 → 14 AWG

Orientation

Straight

Insulation Material

Nylon

Overall Length

21.1mm

Shrouded/Unshrouded

Shrouded

COO (Country of Origin):
TW

RS PRO Insulated Female Spade Connector


The RS PRO range of insulated spade connectors keeps on improving. We are pleased to introduce a series of female spade connectors made from high-quality brass. These connectors are perfect for connecting electrical cable wire, and our offer caters to popular wire sizes; 10 AWG to 26 AWG. During application these connectors have a crimp termination, so the mating of connector and wire can be easily achieved with a good quality crimp tool.

Why would you need a spade connector?


Spade connectors are the ideal solution for creating a union for electrical connections. They are commonly found in applications such as car audio systems and automotive wiring. Colour coded spade connectors makes an install easy to follow while offering a professional appearance.

Features and Benefits


• Female spade connector

• Insulated Materials: High Density PE, Nylon or Vinyl

• Various Colours

• Crimp connection

• Secure and permanent electrical connection

• Brass

• Excellent conductivity

Things to consider


When selecting the right terminal for your application, you should consider the following;

• Wire size 'mm' (metric) or 'AWG' (American Wire Gauge)

• Tab size to which you will be connecting the terminal.

• Width of the receptacle should match the width of the tab it is mating with and vice versa.

How to crimp a female spade connector


Mating a wire with a terminal is an easy application achievable by professional and DIY users alike. Slide the appropriate wire into the tunnel on the connector and using pliers or a crimp tool apply moderate clamping pressure until a perfect union is achieved. A quick check that the wire has no movement is advised.

Applications


These female connectors are used in a wide range of industries including industrial, automotive, and consumer industries. Applications include;

• Electrical Cable Installation

• Industrial control systems

• Automotive applications

• Communication equipment

• Power supplies

• HVAC

Why would you choose RS PRO?


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
