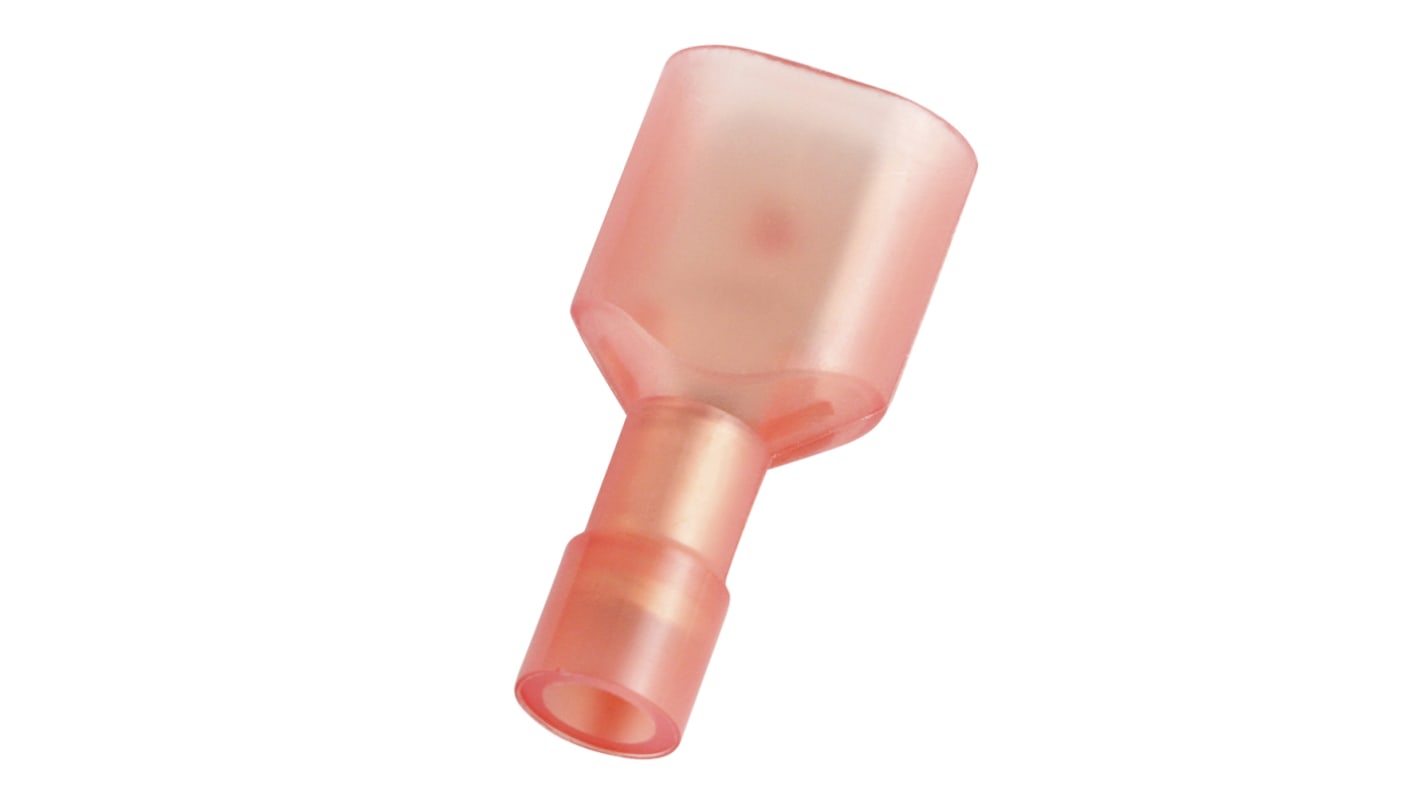

RS PRO Red Insulated Male Spade Connector, Double Crimp, 0.5 x 4.75mm Tab Size, 0.5mm² to 1.5mm²
- RS Stock No.:
- 178-8374
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 100 units)*
£10.60
(exc. VAT)
£12.70
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4,100 unit(s) ready to ship
- Plus 600 unit(s) ready to ship from another location
- Plus 2,000 unit(s) shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 100 - 900 | £0.106 | £10.60 |
| 1000 - 1900 | £0.097 | £9.70 |
| 2000 - 4900 | £0.089 | £8.90 |
| 5000 - 9900 | £0.082 | £8.20 |
| 10000 + | £0.075 | £7.50 |
*price indicative
- RS Stock No.:
- 178-8374
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Type | Double Crimp | |
| Spade Connector Type | Tab Terminal | |
| Minimum Wire Size mm² | 0.5mm² | |
| Gender | Male | |
| Maximum Wire Size mm² | 1.5mm² | |
| Tab Thickness | 0.5mm | |
| Tab Size | 0.5 x 4.75mm | |
| Tab Width | 4.75mm | |
| Insulation | Insulated | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Colour | Red | |
| Termination Method | Crimp | |
| Contact Material | Brass, Copper | |
| Contact Plating | Tin | |
| Wire Size | 0.5 → 1.5 mm², 22 → 16 AWG | |
| Insulation Material | Nylon | |
| Shrouded/Unshrouded | Shrouded | |
| Overall Length | 22mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Type Double Crimp | ||
Spade Connector Type Tab Terminal | ||
Minimum Wire Size mm² 0.5mm² | ||
Gender Male | ||
Maximum Wire Size mm² 1.5mm² | ||
Tab Thickness 0.5mm | ||
Tab Size 0.5 x 4.75mm | ||
Tab Width 4.75mm | ||
Insulation Insulated | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Colour Red | ||
Termination Method Crimp | ||
Contact Material Brass, Copper | ||
Contact Plating Tin | ||
Wire Size 0.5 → 1.5 mm², 22 → 16 AWG | ||
Insulation Material Nylon | ||
Shrouded/Unshrouded Shrouded | ||
Overall Length 22mm | ||
- COO (Country of Origin):
- TW
RS PRO NYLON-FULLY INSULATED DOUBLE CRIMP MALE DISCONNECTORS
