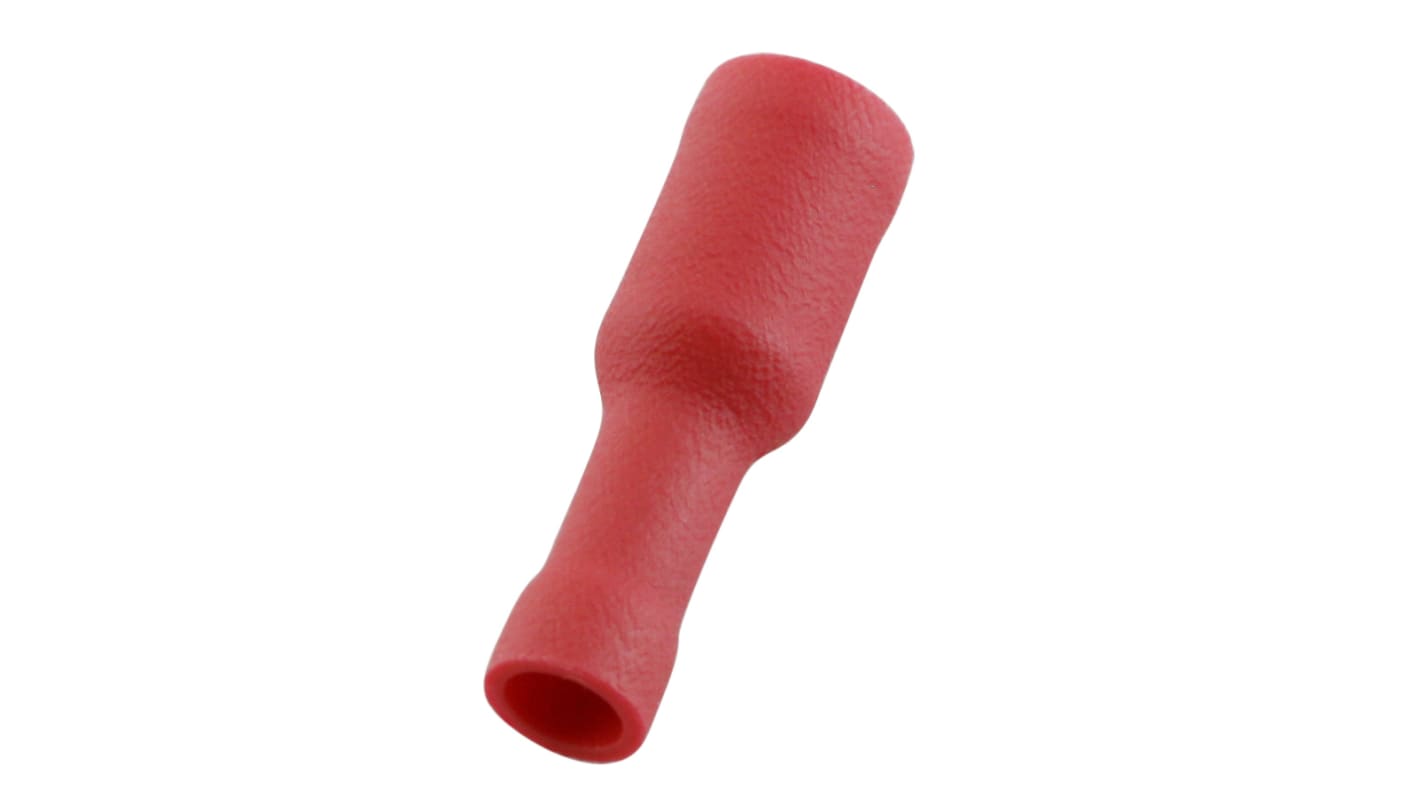

RS PRO Red Insulated Female Spade Connector, Receptacle, 3.9mm Tab Size, 0.5mm² to 1.5mm²
- RS Stock No.:
- 178-8356
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 100 units)*
£7.60
(exc. VAT)
£9.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,200 unit(s) ready to ship
- Plus 200 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 100 - 900 | £0.076 | £7.60 |
| 1000 - 1900 | £0.069 | £6.90 |
| 2000 - 4900 | £0.063 | £6.30 |
| 5000 - 9900 | £0.058 | £5.80 |
| 10000 + | £0.053 | £5.30 |
*price indicative
- RS Stock No.:
- 178-8356
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Type | Receptacle | |
| Spade Connector Type | Receptacle | |
| Minimum Wire Size mm² | 0.5mm² | |
| Gender | Female | |
| Maximum Wire Size mm² | 1.5mm² | |
| Tab Size | 3.9mm | |
| Tab Width | 3.9mm | |
| Insulation | Insulated | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Colour | Red | |
| Termination Method | Crimp | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Wire Size | 0.5 → 1.5 mm², 22 → 16 AWG | |
| Orientation | Straight | |
| Insulation Material | Vinyl | |
| Overall Length | 23mm | |
| Shrouded/Unshrouded | Shrouded | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Type Receptacle | ||
Spade Connector Type Receptacle | ||
Minimum Wire Size mm² 0.5mm² | ||
Gender Female | ||
Maximum Wire Size mm² 1.5mm² | ||
Tab Size 3.9mm | ||
Tab Width 3.9mm | ||
Insulation Insulated | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Colour Red | ||
Termination Method Crimp | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Wire Size 0.5 → 1.5 mm², 22 → 16 AWG | ||
Orientation Straight | ||
Insulation Material Vinyl | ||
Overall Length 23mm | ||
Shrouded/Unshrouded Shrouded | ||
- COO (Country of Origin):
- TW
RS PRO VINYL-INSULATED RECEPTACLE DISCONNECTORS
