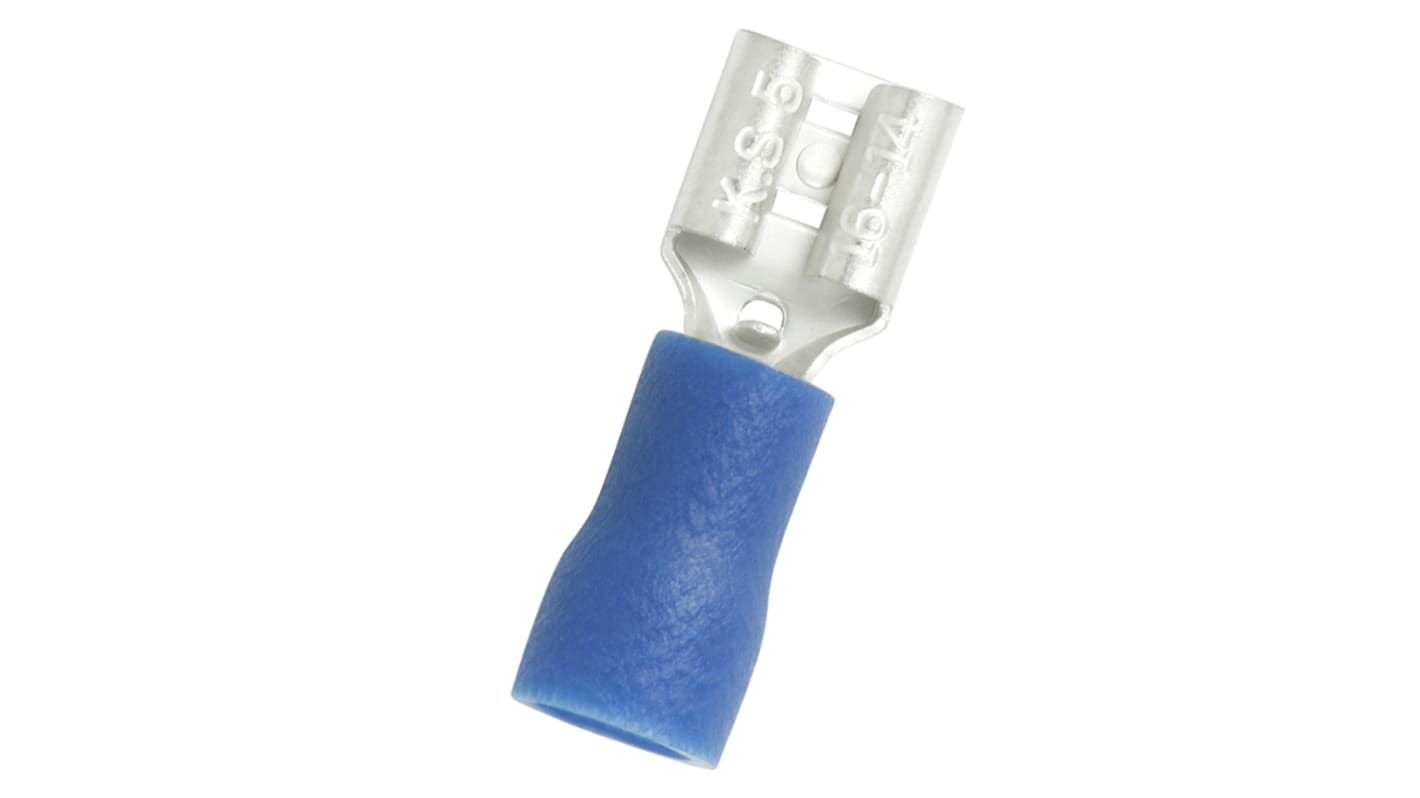

RS PRO RS PRO Blue Insulated Female Spade Connector, Crimp, 0.5 x 5.2 mm Tab Size 16 AWG to 14 AWG
- RS Stock No.:
- 178-8331
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 100 units)*
£4.70
(exc. VAT)
£5.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 15,700 unit(s) ready to ship
- Plus 100 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 100 - 900 | £0.047 | £4.70 |
| 1000 - 1900 | £0.042 | £4.20 |
| 2000 - 4900 | £0.039 | £3.90 |
| 5000 - 9900 | £0.036 | £3.60 |
| 10000 + | £0.033 | £3.30 |
*price indicative
- RS Stock No.:
- 178-8331
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Termination Type | Crimp | |
| Product Type | Spade Connector | |
| Gender | Female | |
| Tab Thickness | 0.5mm | |
| Tab Size | 0.5 x 5.2 mm | |
| Tab Width | 5.2mm | |
| Insulation | Insulated | |
| Maximum Wire Size mm² | 2.5mm² | |
| Maximum Wire Size AWG | 14AWG | |
| Minimum Wire Size AWG | 16AWG | |
| Minimum Wire Size mm² | 1.5mm² | |
| Colour | Blue | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Orientation | Straight | |
| Standards/Approvals | No | |
| Insulation Material | Vinyl | |
| Overall Length | 18.5mm | |
| Series | RS PRO | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Termination Type Crimp | ||
Product Type Spade Connector | ||
Gender Female | ||
Tab Thickness 0.5mm | ||
Tab Size 0.5 x 5.2 mm | ||
Tab Width 5.2mm | ||
Insulation Insulated | ||
Maximum Wire Size mm² 2.5mm² | ||
Maximum Wire Size AWG 14AWG | ||
Minimum Wire Size AWG 16AWG | ||
Minimum Wire Size mm² 1.5mm² | ||
Colour Blue | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Orientation Straight | ||
Standards/Approvals No | ||
Insulation Material Vinyl | ||
Overall Length 18.5mm | ||
Series RS PRO | ||
- COO (Country of Origin):
- TW
RS PRO VINYL-INSULATED FEMALE DISCONNECTORS
