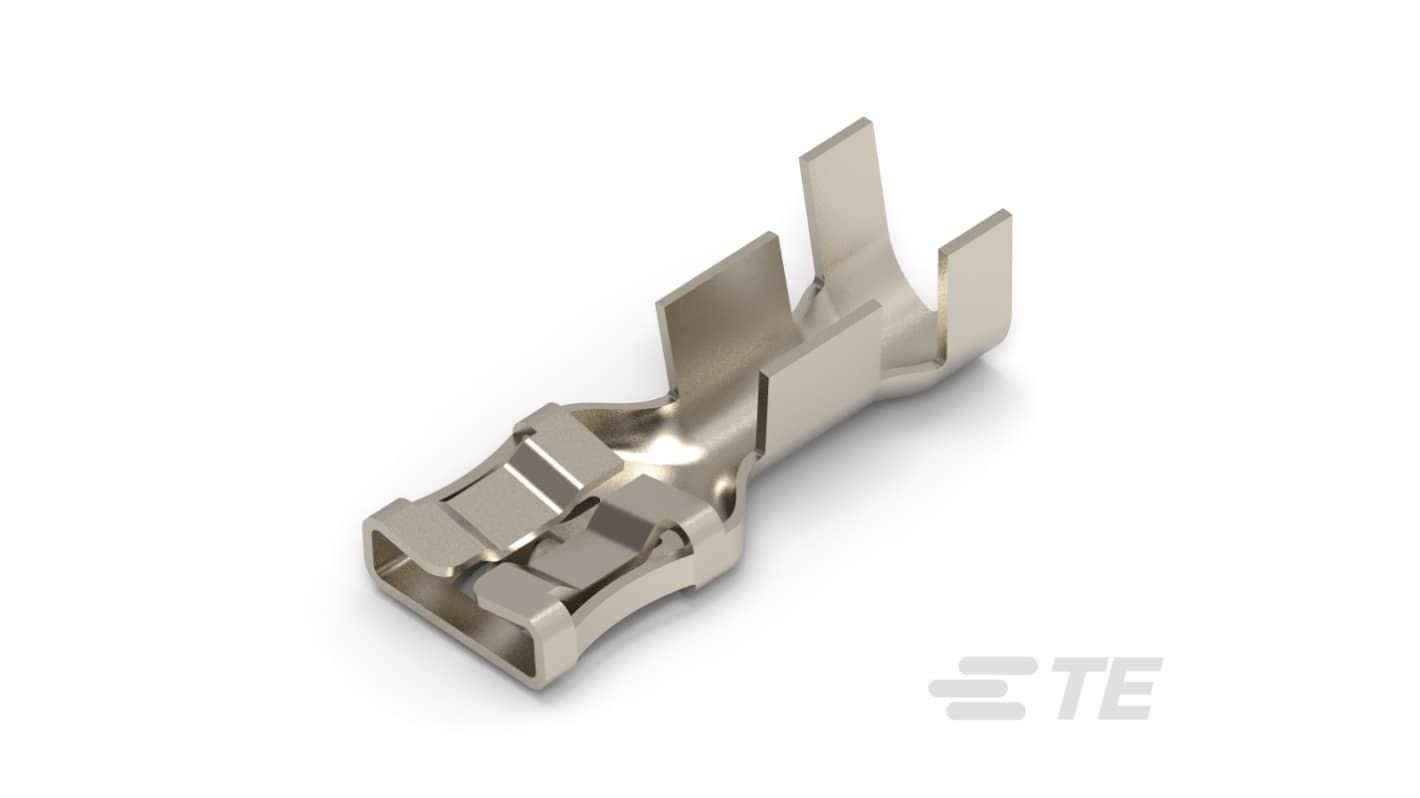

TE Connectivity 2178 Brown Uninsulated Female Spade Connector, Crimp 12 AWG to 10 AWG
- RS Stock No.:
- 504-712
- Distrelec Article No.:
- 304-48-796
- Mfr. Part No.:
- 2178301-1
- Brand:
- TE Connectivity
Subtotal (5000 units, on reels of 5000)*
£322.09
(exc. VAT)
£386.51
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £322.09 | £0.064 |
*price indicative
- RS Stock No.:
- 504-712
- Distrelec Article No.:
- 304-48-796
- Mfr. Part No.:
- 2178301-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Termination Type | Crimp | |
| Product Type | Spade Connector | |
| Gender | Female | |
| Tab Thickness | 0.81mm | |
| Tab Width | 6.35mm | |
| Insulation | Uninsulated | |
| Minimum Wire Size AWG | 12AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Colour | Brown | |
| Contact Material | Steel | |
| Contact Plating | Nickel | |
| Orientation | Straight | |
| Standards/Approvals | EU RoHS Directive 2011/65/EU, UL, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, 2016 | |
| Overall Length | 19mm | |
| Series | 2178 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Termination Type Crimp | ||
Product Type Spade Connector | ||
Gender Female | ||
Tab Thickness 0.81mm | ||
Tab Width 6.35mm | ||
Insulation Uninsulated | ||
Minimum Wire Size AWG 12AWG | ||
Maximum Wire Size AWG 10AWG | ||
Colour Brown | ||
Contact Material Steel | ||
Contact Plating Nickel | ||
Orientation Straight | ||
Standards/Approvals EU RoHS Directive 2011/65/EU, UL, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, 2016 | ||
Overall Length 19mm | ||
Series 2178 | ||
- COO (Country of Origin):
- IT
The TE Connectivity Quick disconnect receptacle is expertly designed to accommodate a wide range of wire gauges, ensuring a robust connection for various applications. It effectively supports wire sizes from 3.31 to 5.26 mm², providing excellent versatility for your wiring needs. Manufactured from high-quality steel and featuring pre-nickel plating, the receptacle ensures enhanced durability and resistance to corrosion. The straight design and 6.35 mm tab width offer seamless compatibility with existing connectors, making installation hassle-free. Suitable for uninsulated applications, this product is engineered to withstand harsh operating conditions, boasting an impressive temperature range of -40 to 250 °C. With a low insertion force and reliable mating retention, this receptacle meets the stringent demands of contemporary electrical systems, providing both performance and reliability.
Low insertion force facilitates easy handling and installation
Straight orientation allows for uncomplicated connections in tight spaces
Steel construction ensures strong mechanical performance and longevity
Pre-nickel plating offers enhanced resistance to environmental factors
Designed for compatibility with discrete wire types, providing versatile applications
Mating retention type enhances connection stability in dynamic conditions
Designed to accommodate a wide insulation diameter range for flexibility
Injection moulded packaging optimises storage and handling efficiency
