Moflash LEDA125 Series Clear Sounder-Beacon Combination, IP65 24V Wall 90 dB @ 1m Electronic
- RS Stock No.:
- 721-6479
- Mfr. Part No.:
- LEDA125-01
- Brand:
- Moflash
Subtotal (1 unit)*
£157.96
(exc. VAT)
£189.55
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 28 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £157.96 |
*price indicative
- RS Stock No.:
- 721-6479
- Mfr. Part No.:
- LEDA125-01
- Brand:
- Moflash
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Moflash | |
| Product Type | Sounder-Beacon Combination | |
| Lens Colour | Clear | |
| Current Type | DC | |
| Light Effect | Flashing, Steady | |
| Sounder Type | Electronic | |
| Mount Type | Wall | |
| Series | LEDA125 | |
| Bulb Type | LED | |
| Maximum Supply Voltage | 24V | |
| Housing Colour | Black | |
| Sound Level at 1m | 90dB | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 45°C | |
| Maximum Sound Level | 90dB | |
| Hazardous Area Certification | No | |
| IP Rating | IP65 | |
| Number of Tones | 1 | |
| Housing Material | ABS/Polycarbonate | |
| Standards/Approvals | CE Certified UKCA | |
| Select all | ||
|---|---|---|
Brand Moflash | ||
Product Type Sounder-Beacon Combination | ||
Lens Colour Clear | ||
Current Type DC | ||
Light Effect Flashing, Steady | ||
Sounder Type Electronic | ||
Mount Type Wall | ||
Series LEDA125 | ||
Bulb Type LED | ||
Maximum Supply Voltage 24V | ||
Housing Colour Black | ||
Sound Level at 1m 90dB | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 45°C | ||
Maximum Sound Level 90dB | ||
Hazardous Area Certification No | ||
IP Rating IP65 | ||
Number of Tones 1 | ||
Housing Material ABS/Polycarbonate | ||
Standards/Approvals CE Certified UKCA | ||
- COO (Country of Origin):
- GB

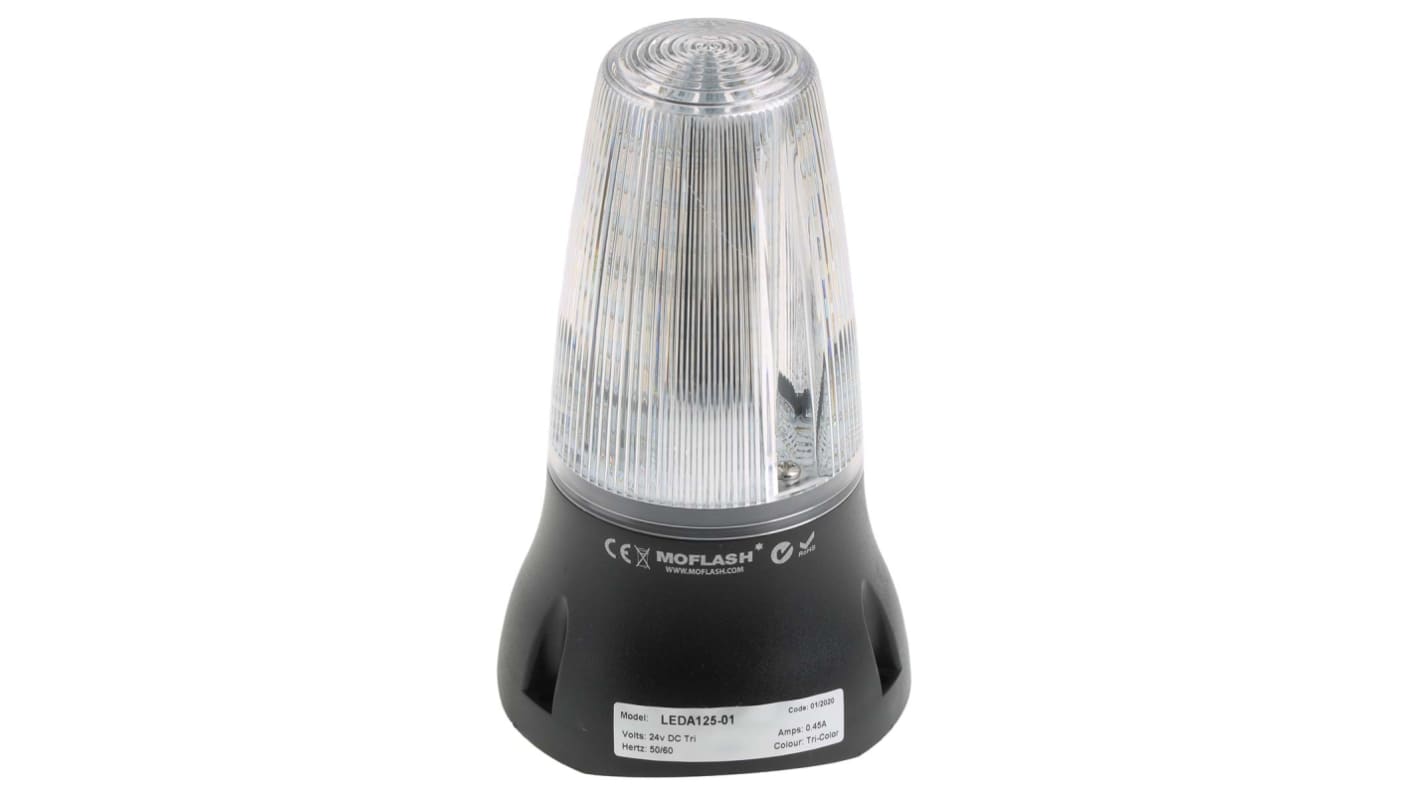

Moflash Sounder Beacon, 90 dB, 24 V DC - LEDA125 Series - LEDA125-01
With its tricolour LEDs (light-emitting diodes) and two piezo buzzers, this sounder beacon from Moflash is on hand to provide audible and visible warning signals. It produces three colours – red, amber and green – as well as a siren that can be synchronised with the colour and flash rate as required. For even greater flexibility, the light and sound modes can be used independently. This device is suitable for fire, security and other industrial applications.
• 90 dB sounder provides a clear warning signal
• Versatile choice of flash modes including continuously ON, rapid flash (120 FPM) and standard flash (60 FPM)
• Wide operating temperature range (-20°C to +45°C) makes it ideal for demanding environments
• Practical alternative to a traditional tower light
• Continuously rated for reliability
Application Information
• Production lines
• Emergency vehicles
• Mechanical and automation industries
How do I mount this device?
This sounder beacon can be mounted on a wall or surface, depending on your needs, but you should avoid areas where excessive vibration can be expected. Mounting the beacon upright (with the lens above the black base) will provide ingress protection of IP65, meaning the unit is dust-tight and protected from water jets.
